Mechanical Specifications

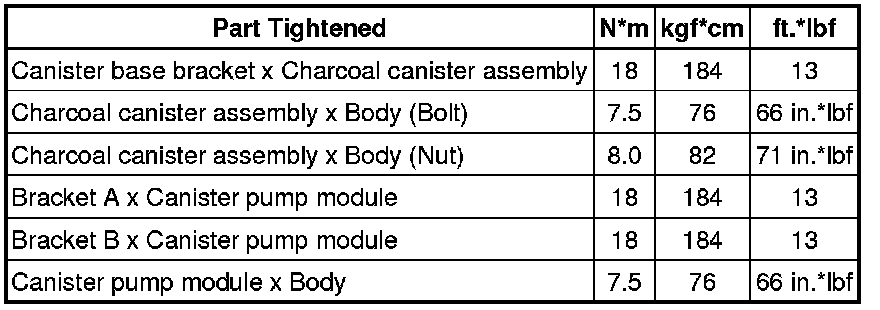

SPECIFICATIONS: FA20 EMISSION CONTROL: TORQUE SPECIFICATIONS; 2013 MY FR-S [03/2012 -]

CANISTER





PURGE VALVE





PCV VALVE
