Components
Components

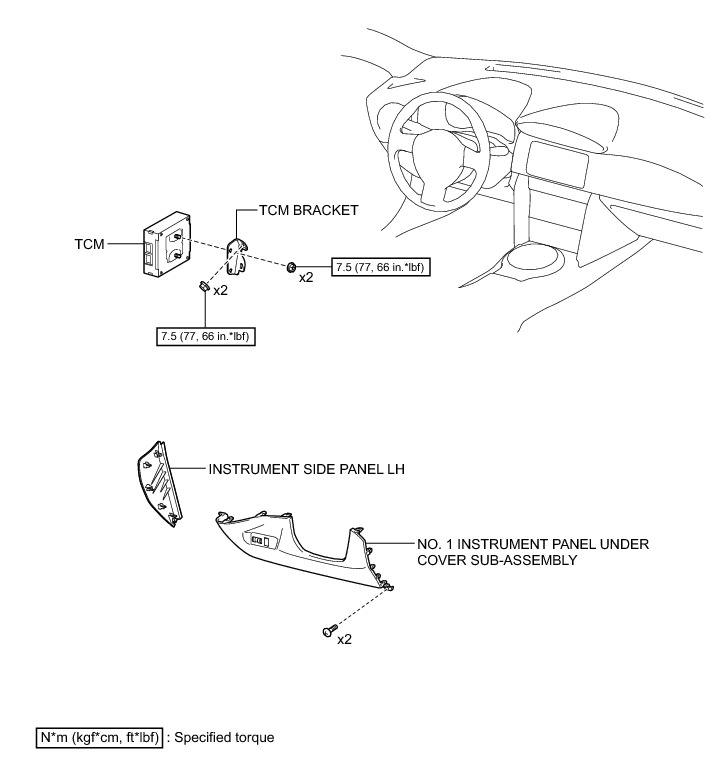

TX6A AUTOMATIC TRANSMISSION / TRANSAXLE:
TCM
: COMPONENTS; 2013 MY FR-S [03/2012 -]
