Programming and Relearning

SEAT BELT: SEAT BELT WARNING SYSTEM: CUSTOMIZE PARAMETERS; 2013 MY FR-S [03/2012 -]

1. CUSTOMIZE SEAT BELT WARNING SYSTEM

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.
* These buzzers should be ON for safe driving. Perform this procedure only if it is necessary to set the buzzer to OFF (disabled).

(a) Customizing with the Techstream

(1) Connect the Techstream to the DLC3.

(2) Turn the ignition switch to ON.

(3) Turn the Techstream on.

(4) Enter the following menus: Customize Setting / Warning.

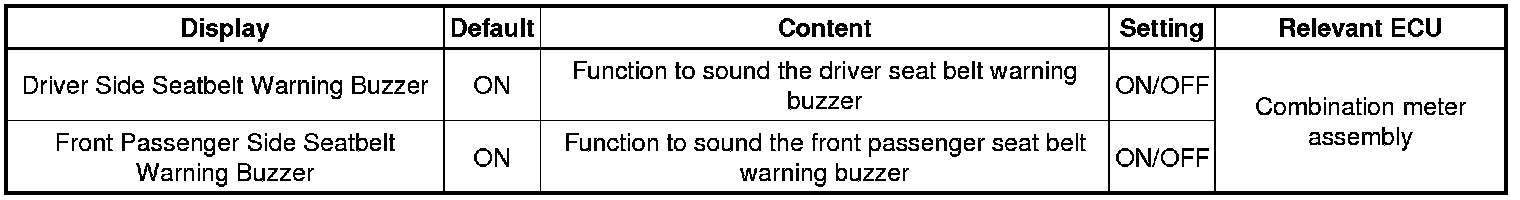

(5) Select the setting by referring to the table below.

Warning





HINT
This setting is only valid when the vehicle is driven at 20 km/h (12 mph) or more.
