SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS; 2013 MY FR-S [03/2012 -]

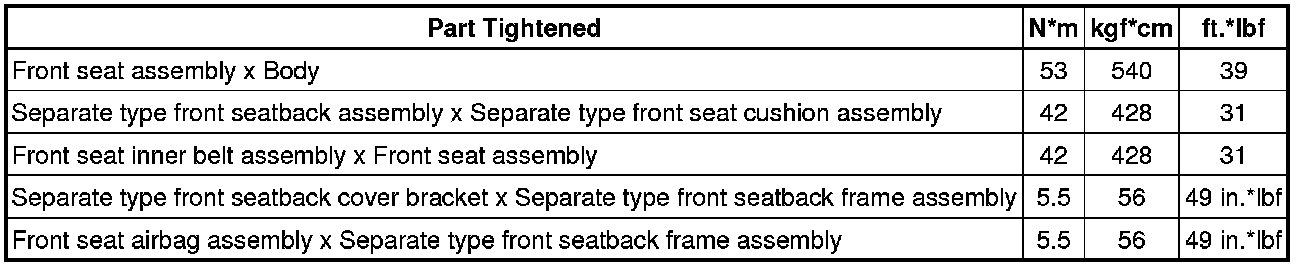

FRONT SEAT ASSEMBLY

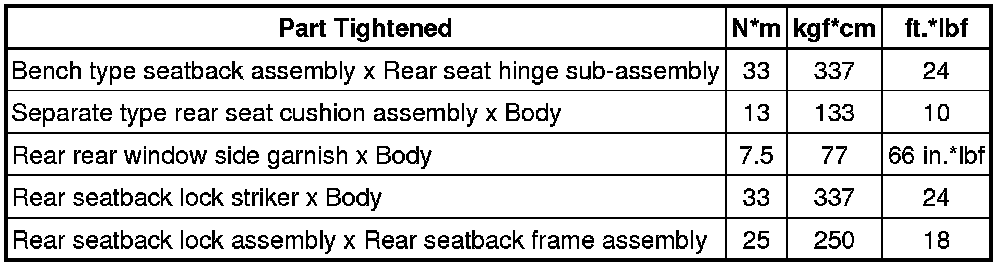

REAR SEAT ASSEMBLY
