Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
Torque Specifications
Torque Specifications

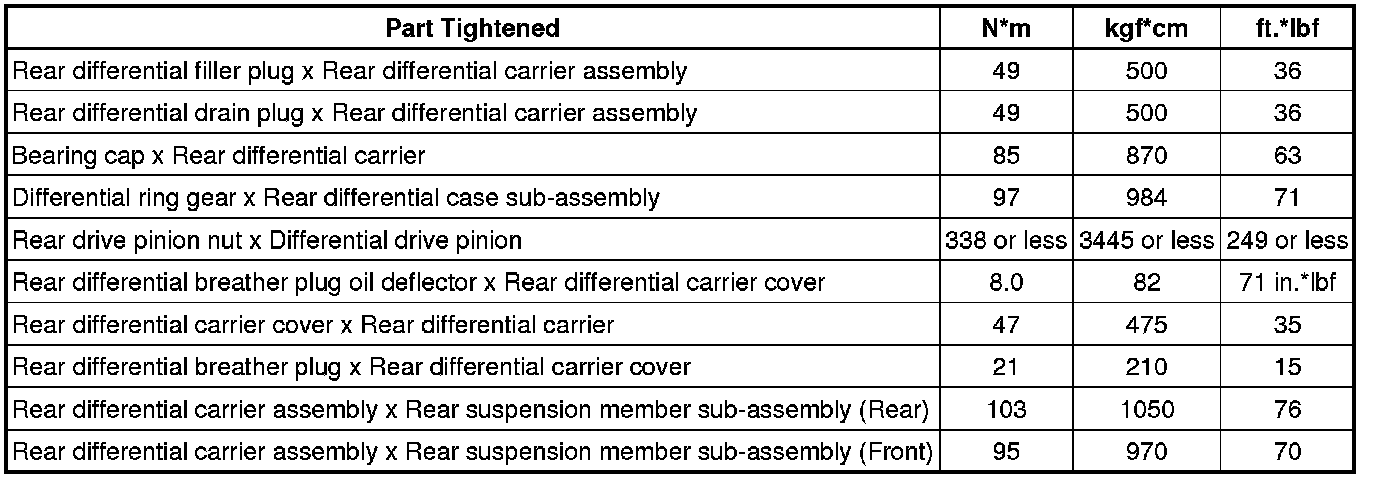

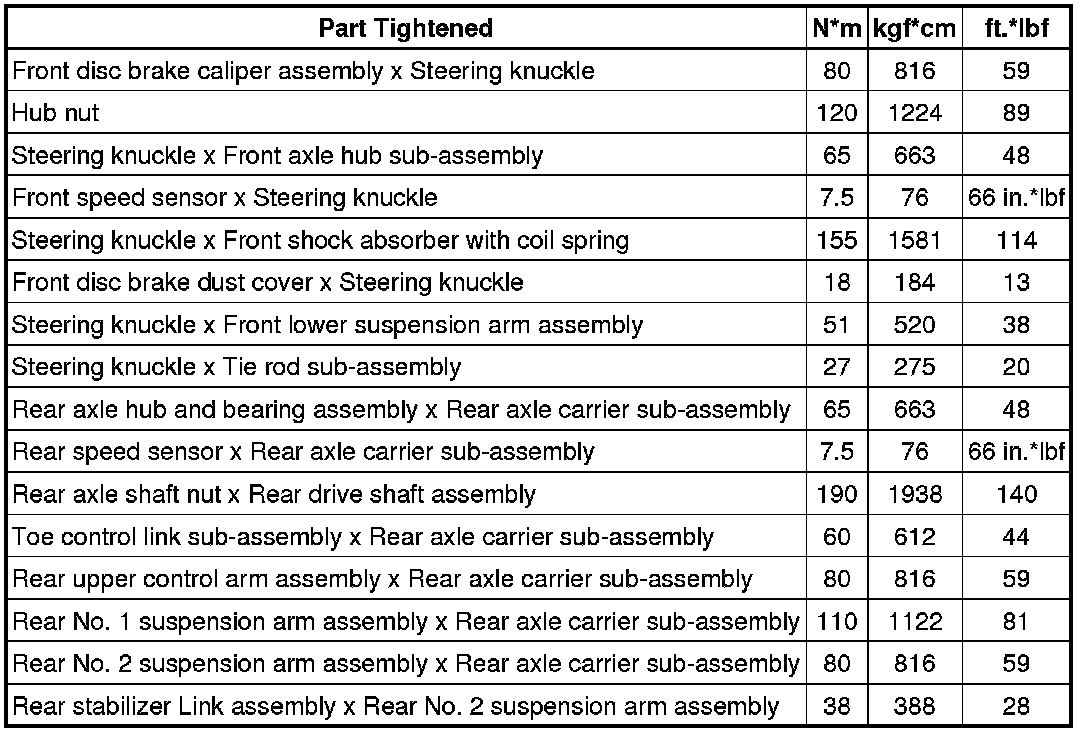

SPECIFICATIONS: AXLE AND DIFFERENTIAL: TORQUE SPECIFICATIONS; 2013 MY FR-S [03/2012 -]
Axle
Differential
