Engine
>>
Cylinder Block Assembly
>>
Crankshaft Main Bearing
>>

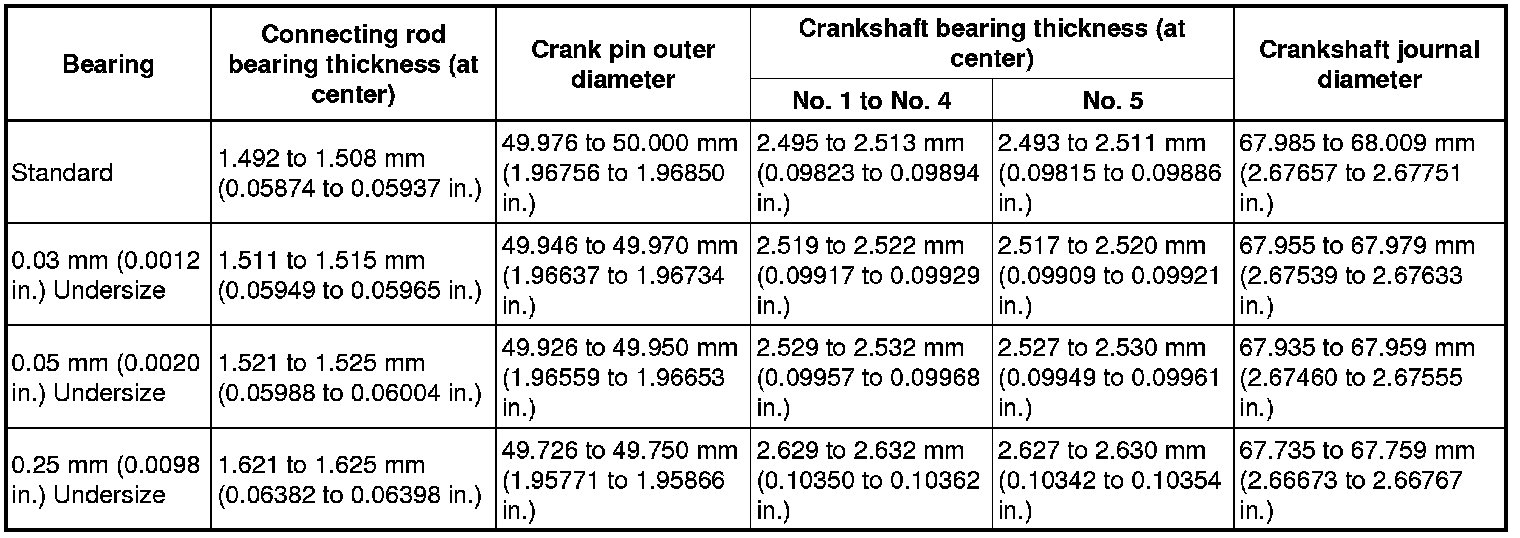

Torque Specifications
Torque Specifications

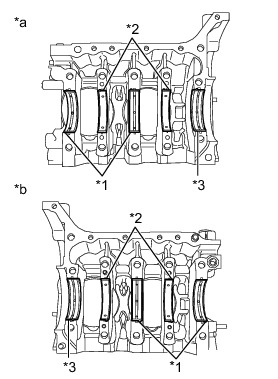

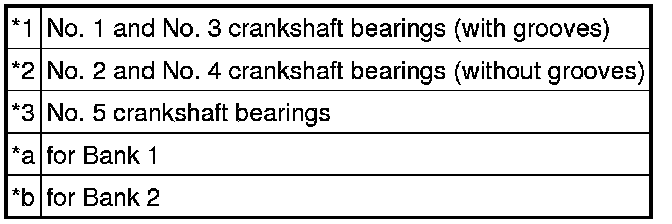

Crankshaft Main Bearings
Crankshaft Main Bearing
Bolts
Please refer to Cylinder Block Reassembly for tightening specifications
and sequence.
Reassembly
