Torque Specifications

Cylinder Head Inspection
Measurement should be performed at a temperature of 20° C (68° F)

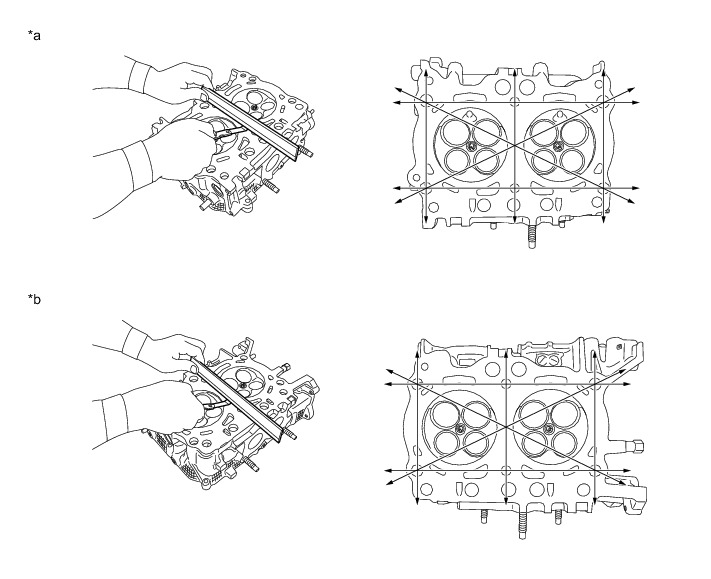

Using a precision straightedge and a feeler gauge, measure surfaces that contact the cylinder block for warpage

Maximum warpage 0.035 mm (0.00138 in.)
Allowable minimum cylinder head height 98.4 mm (3.874 in.)
Standard cylinder head height 98.5 mm (3.878 in.)
If warpage is more than maximum, correct the surface by grinding it or replace cylinder head

Cylinder Head Bolts

LH

First step 20 Nm (204 kgf-cm, 15 ft-lbf) in sequence

Second step 100 Nm (1020 kgf-cm, 74 ft-lbf) in sequence

Third step Loosen by 360° in sequence

Fourth step 20 Nm (204 kgf-cm, 15 ft-lbf) in sequence

Fifth step 42 Nm (428 kgf-cm, 31 ft-lbf) in sequence

Sixth step Tighten another 100° in sequence

Seventh step Tighten 2 bolts another 100° in sequence

Eighth step Tighten 4 bolts another 50° in sequence

RH

First step 20 Nm (204 kgf-cm, 15 ft-lbf) in sequence

Second step 100 Nm (1020 kgf-cm, 74 ft-lbf) in sequence

Third step Loosen by 360° in sequence

Fourth step 20 Nm (204 kgf-cm, 15 ft-lbf) in sequence

Fifth step 42 Nm (428 kgf-cm, 31 ft-lbf) in sequence

Sixth step Tighten another 100° in sequence

Seventh step Tighten 2 bolts another 100° in sequence

Eighth step Tighten 4 bolts another 50° in sequence

Camshaft Housing Sub-Assembly Bolts

LH

First step 18 Nm (184 kgf-cm, 13 ft-lbf) in sequence

Second step Loosen 3 bolts by 180° in sequence

Third step 18 Nm (184 kgf-cm, 13 ft-lbf) in sequence

Fourth step Loosen 3 bolts by 180° in sequence

Fifth step 18 Nm (184 kgf-cm, 13 ft-lbf) in sequence

Sixth step Loosen 3 bolts by 180° in sequence

Seventh step 18 Nm (184 kgf-cm, 13 ft-lbf) in sequence

RH

First step 18 Nm (184 kgf-cm, 13 ft-lbf) in sequence

Second step Loosen 3 bolts by 180° in sequence

Third step 18 Nm (184 kgf-cm, 13 ft-lbf) in sequence

Fourth step Loosen 3 bolts by 180° in sequence

Fifth step 18 Nm (184 kgf-cm, 13 ft-lbf) in sequence

Sixth step Loosen 3 bolts by 180° in sequence

Seventh step 18 Nm (184 kgf-cm, 13 ft-lbf) in sequence

Camshaft Bearing Cap Bolts 18 Nm (184 kgf-cm, 13 ft-lbf) in sequence

Intake Manifold Mounting Bolts Specifications

Exhaust Manifold Mounting Bolts Torque Specifications

Camshaft Timing Gear Assembly Bolts Torque Specifications
