Timing Cover

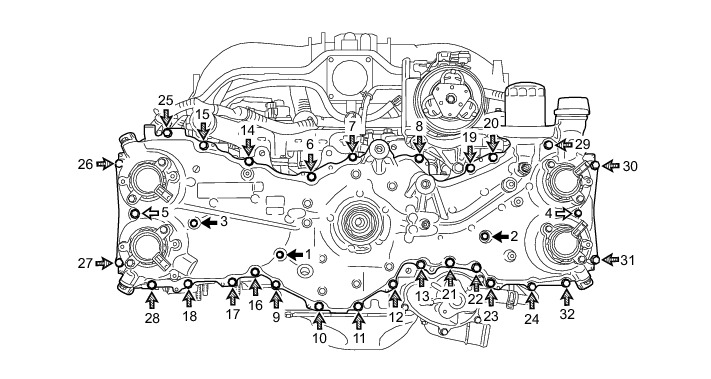

Timing Chain Cover Bolts

Bolt Length













First step Temporarily tighten 32 bolts
Second step Fully tighten 32 bolts

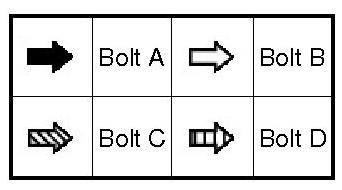

Bolts A and B 10 Nm (102 kgf-cm, 7 ft-lbf)
Bolts C and D 25 Nm (255 kgf-cm, 18 ft-lbf)
