System Specifications






SPECIFICATIONS: FA20 INTAKE / EXHAUST: TORQUE SPECIFICATIONS; 2013 MY FR-S [03/2012 -]

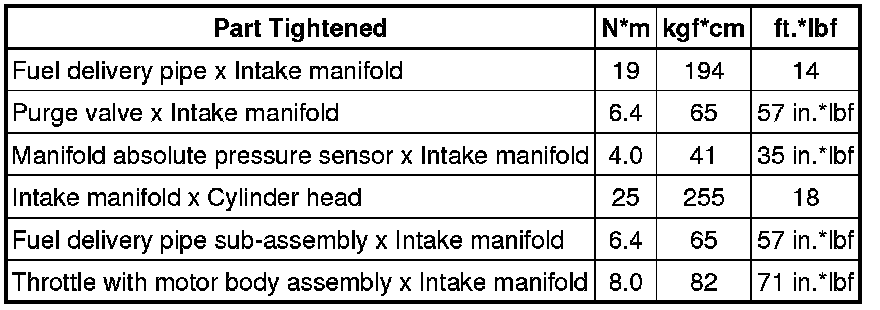

INTAKE MANIFOLD





CHAMBER

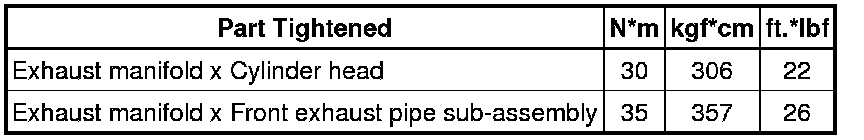

EXHAUST MANIFOLD

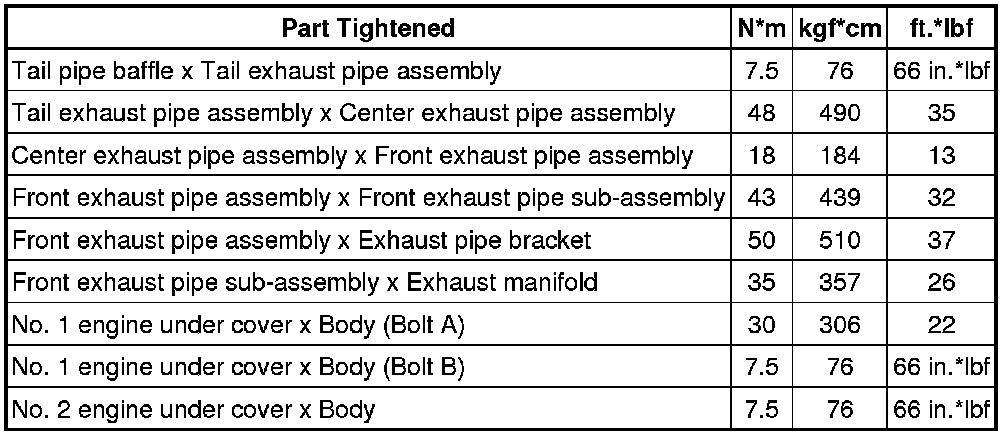

EXHAUST PIPE
