Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
System Specifications
>>
Torque Specifications
Torque Specifications

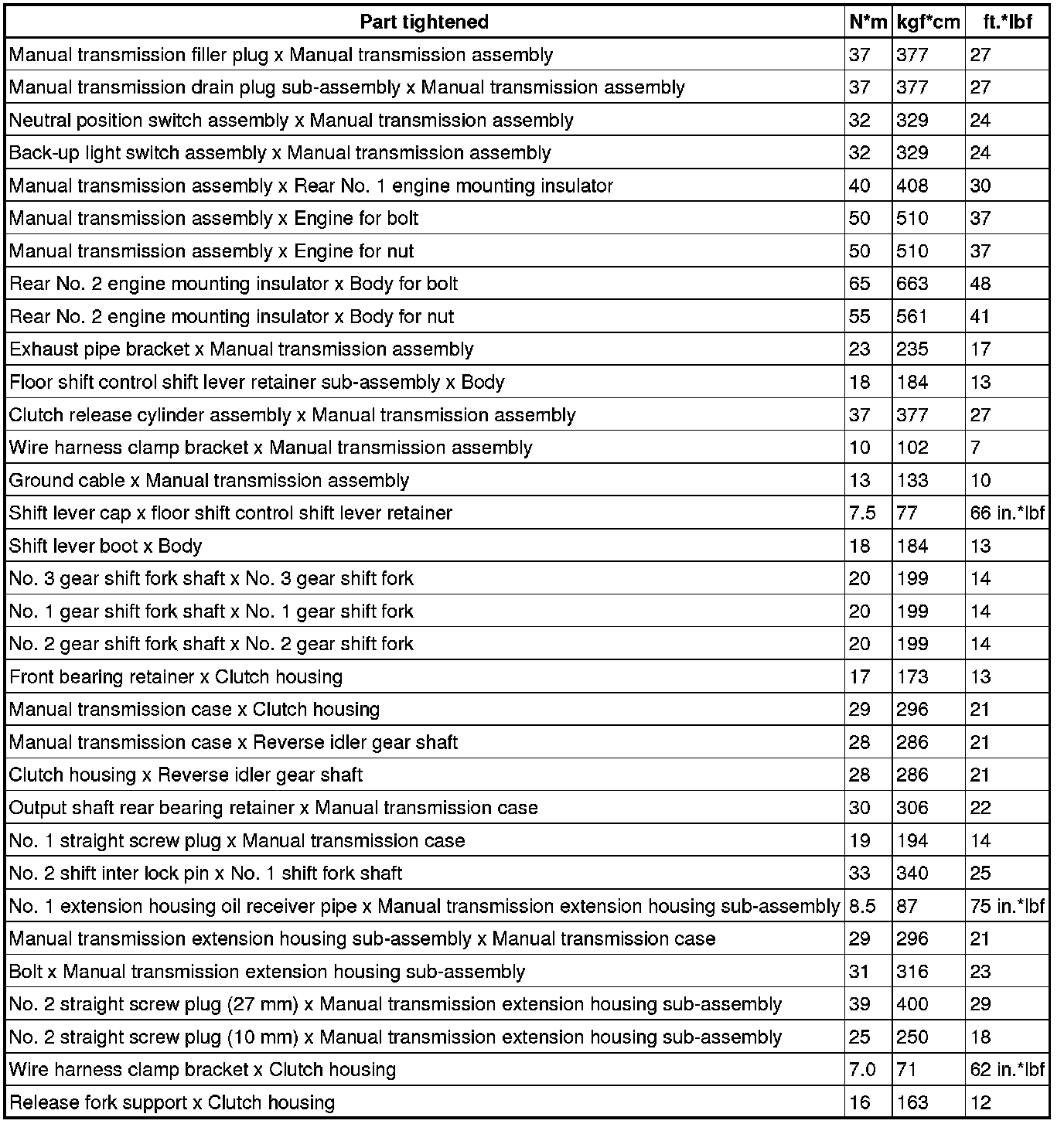

SPECIFICATIONS: TL70 MANUAL TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS; 2013 MY FR-S [03/2012 -]
