Charging System: Description and Operation
FA20 BATTERY / CHARGING:

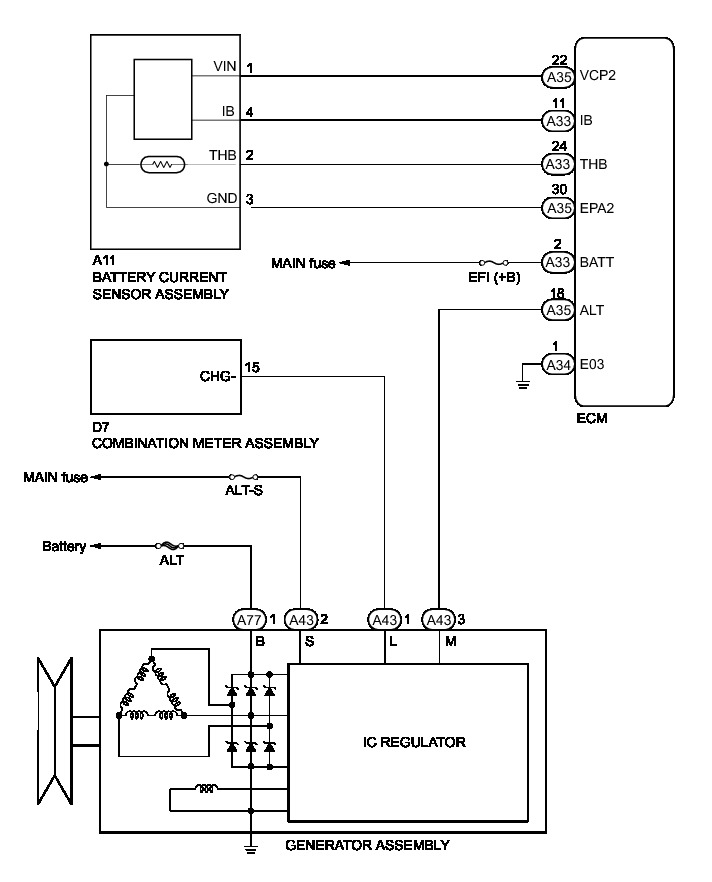

CHARGING SYSTEM
: SYSTEM DIAGRAM; 2013 MY FR-S [03/2012 -]
