Charging System: Locations

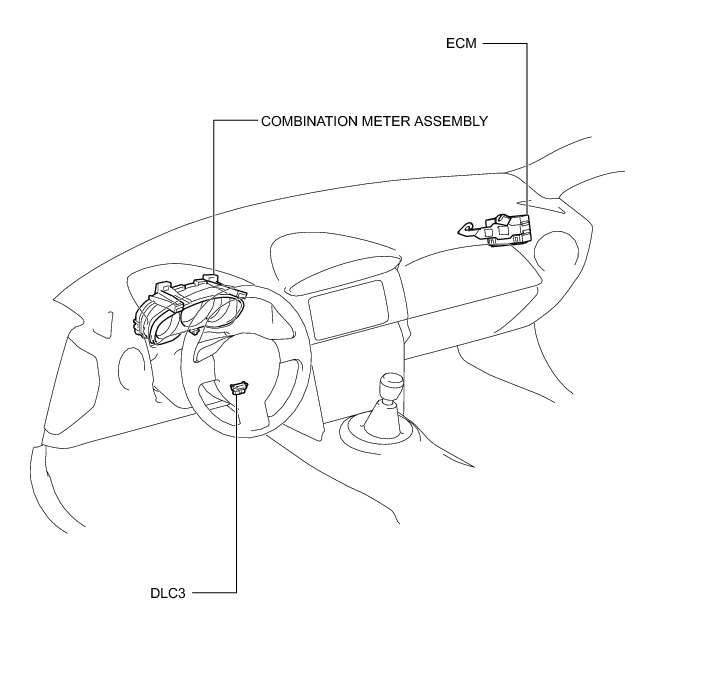

FA20 BATTERY / CHARGING: CHARGING SYSTEM: PARTS LOCATION; 2013 MY FR-S [03/2012 -]
