Starting System: Description and Operation

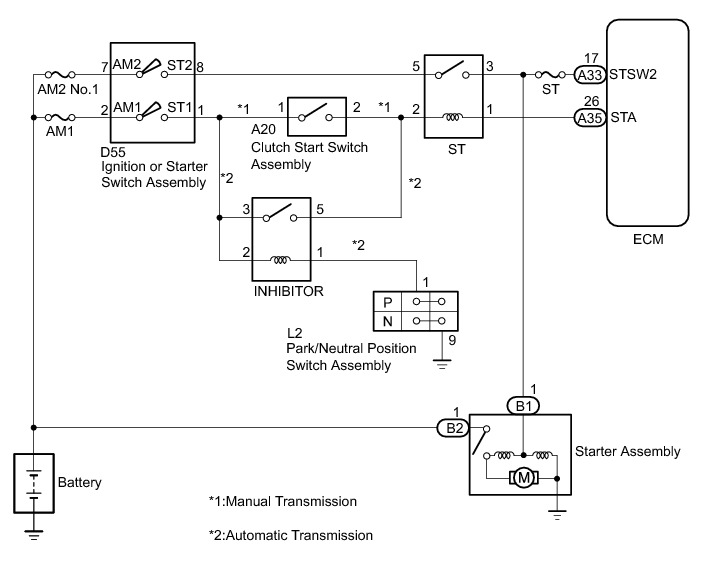

FA20 STARTING: STARTING SYSTEM: SYSTEM DIAGRAM; 2013 MY FR-S [03/2012 -]
