Torque Specifications

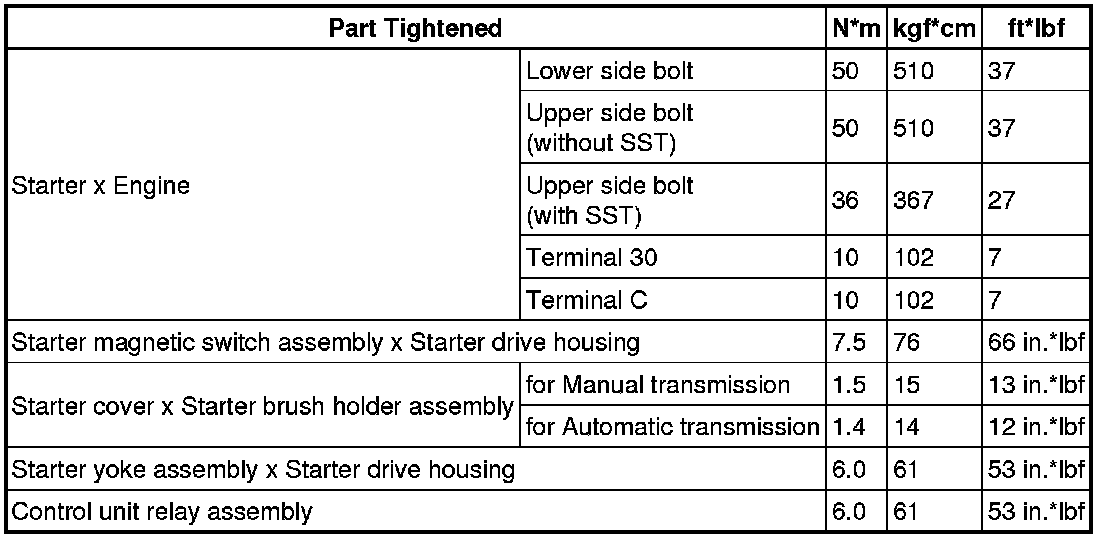

SPECIFICATIONS: FA20 STARTING: TORQUE SPECIFICATIONS; 2013 MY FR-S [03/2012 -]
