Freeze Frame Data

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: FREEZE FRAME DATA; 2013 MY FR-S [03/2012 -]

1. FREEZE FRAME DATA

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Turn the Techstream on.

(e) Enter the following menus: Chassis / EMPS / Trouble Codes.

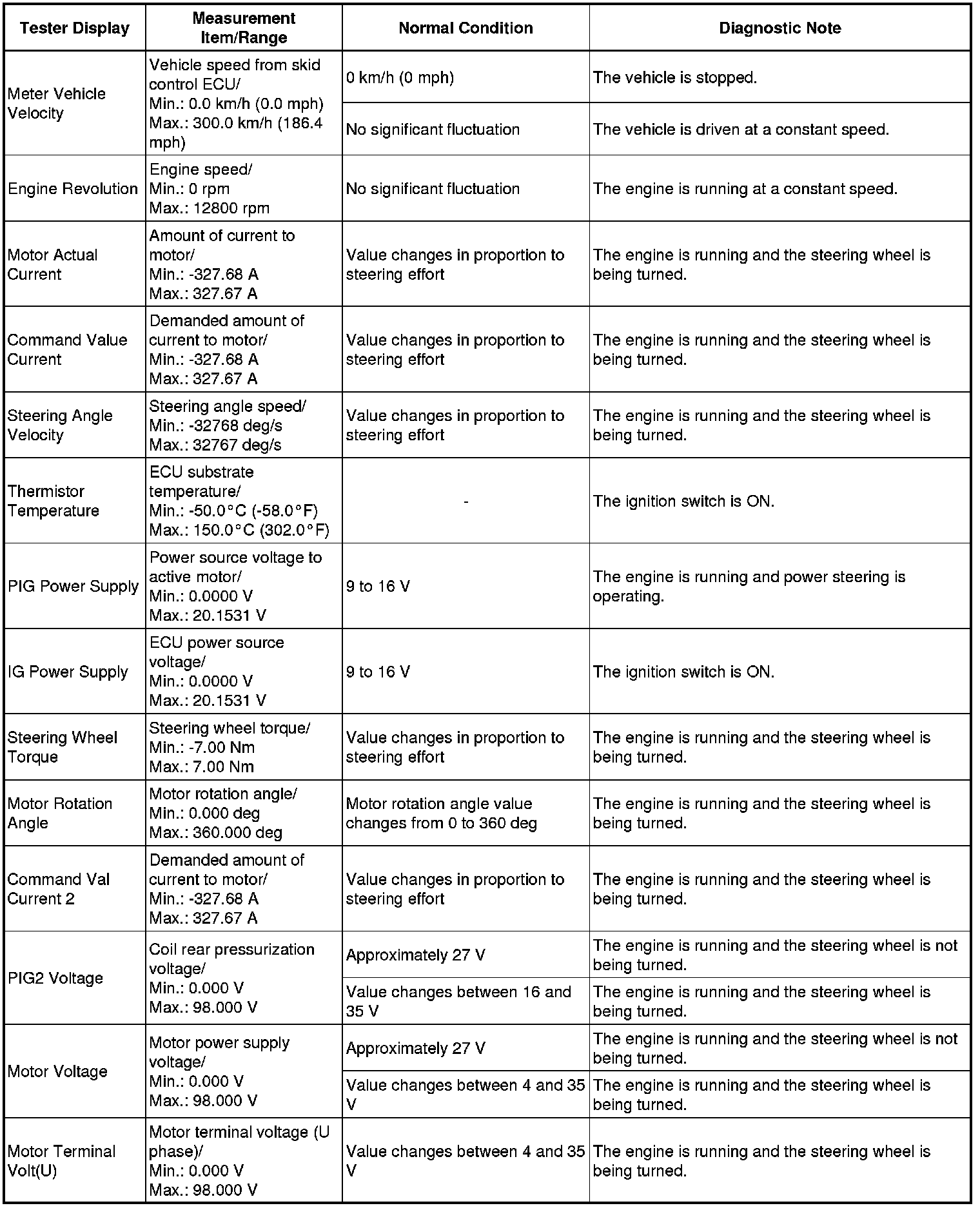

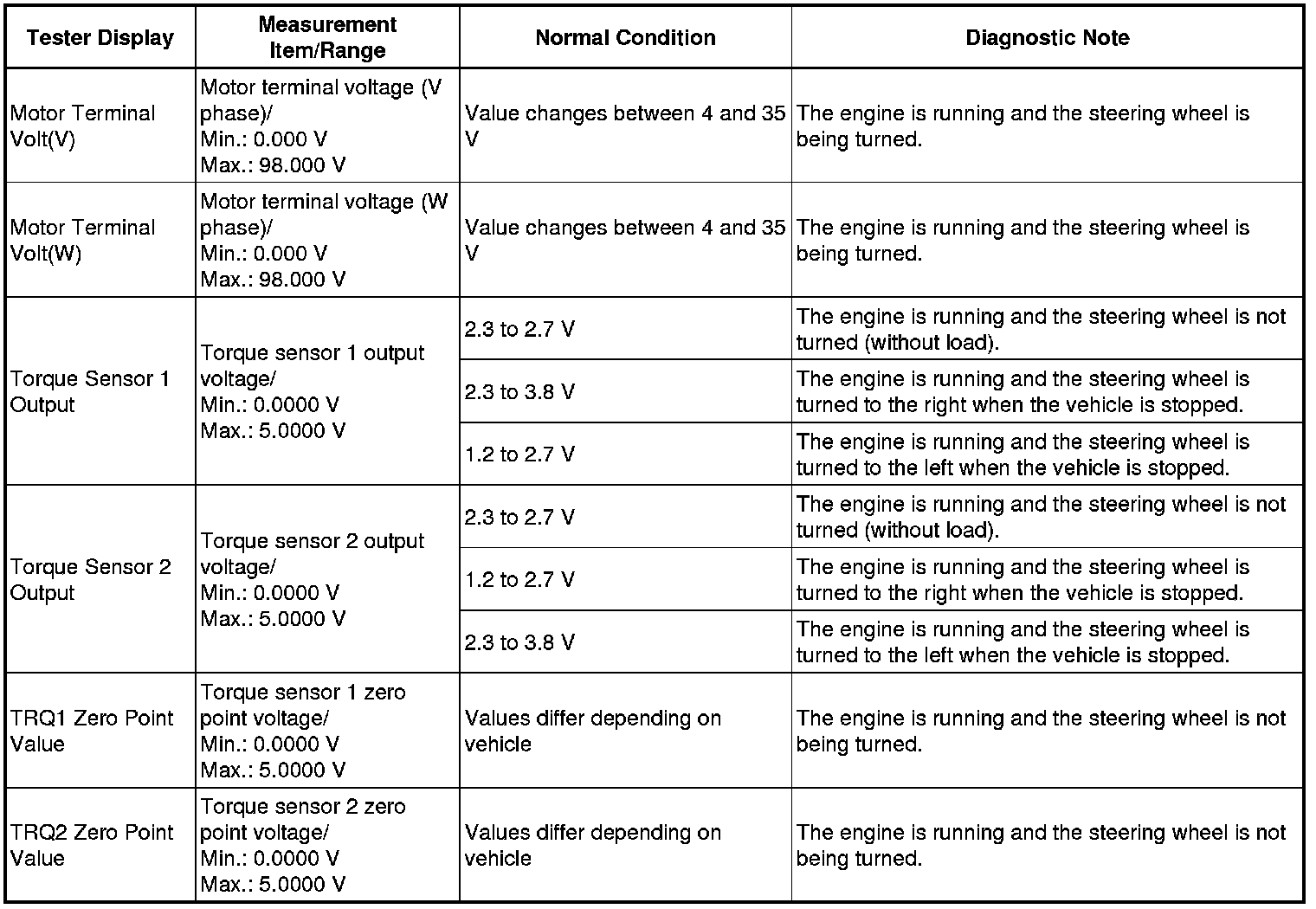

(f) According to the display on the Techstream, select the freeze frame data.

EMPS
