Scion
>>
2013
>>
FR-S F4-2.0L (FA20)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Overhaul
>>
Transaxle Unit
>>
Components
Components

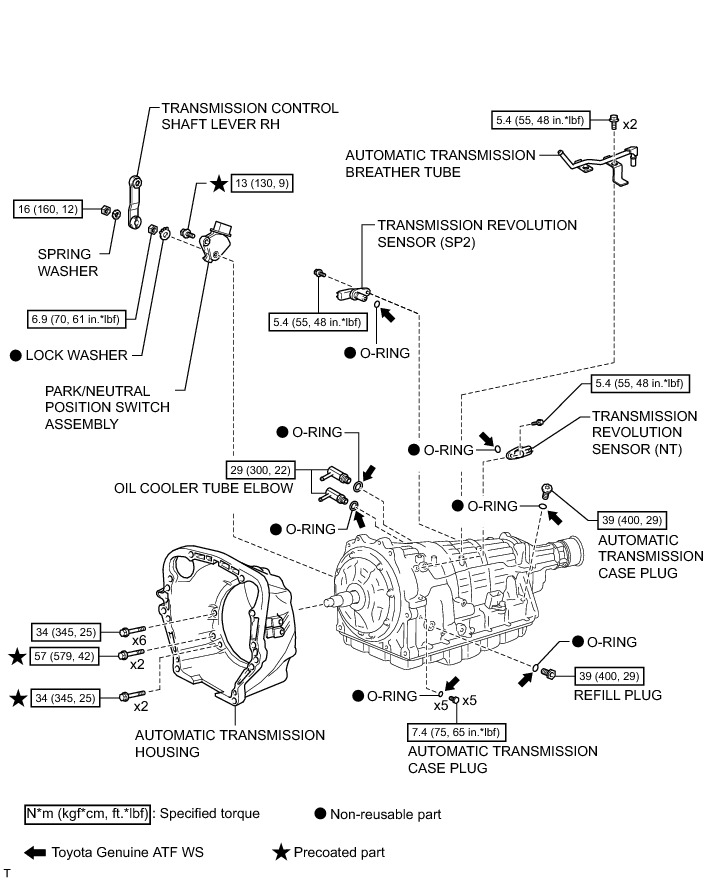

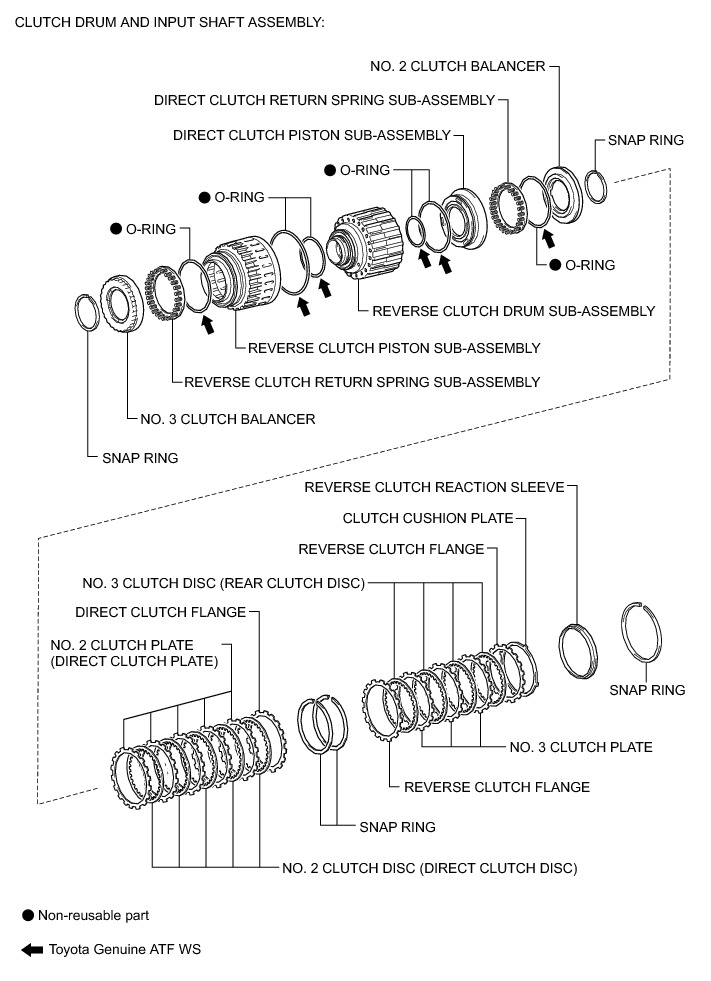

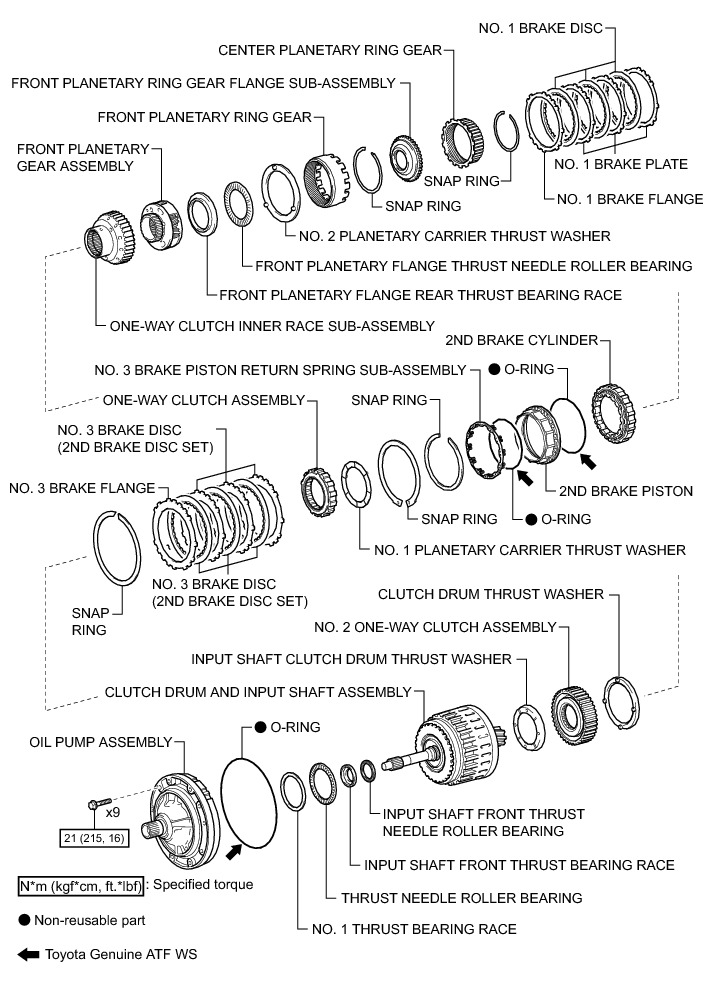

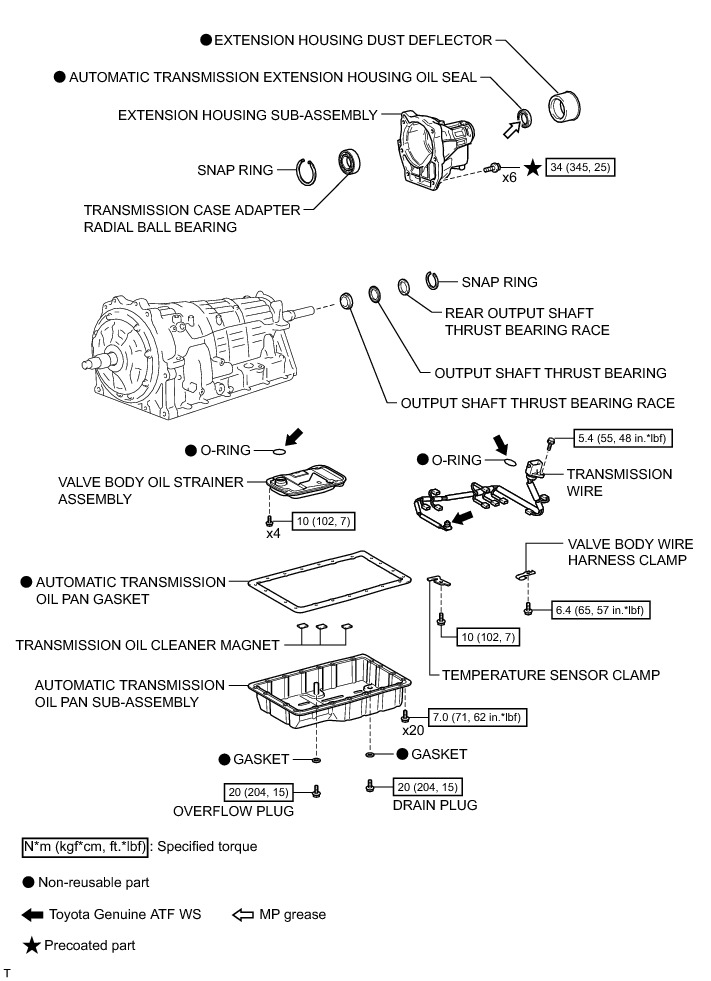

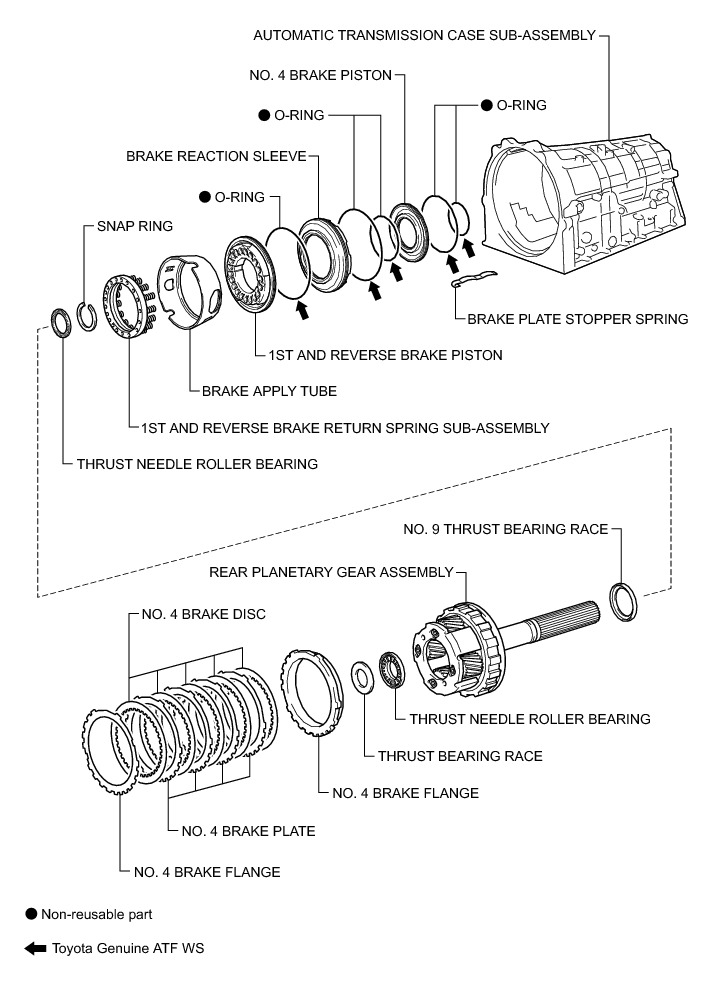

TX6A AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION UNIT: COMPONENTS; 2013 MY FR-S [03/2012 -]
