Home
>>
Scion
>>
2013
>>
FR-S F4-2.0L (FA20)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Specifications
>>
Mechanical Specifications
>>
Torque Specifications
Torque Specifications

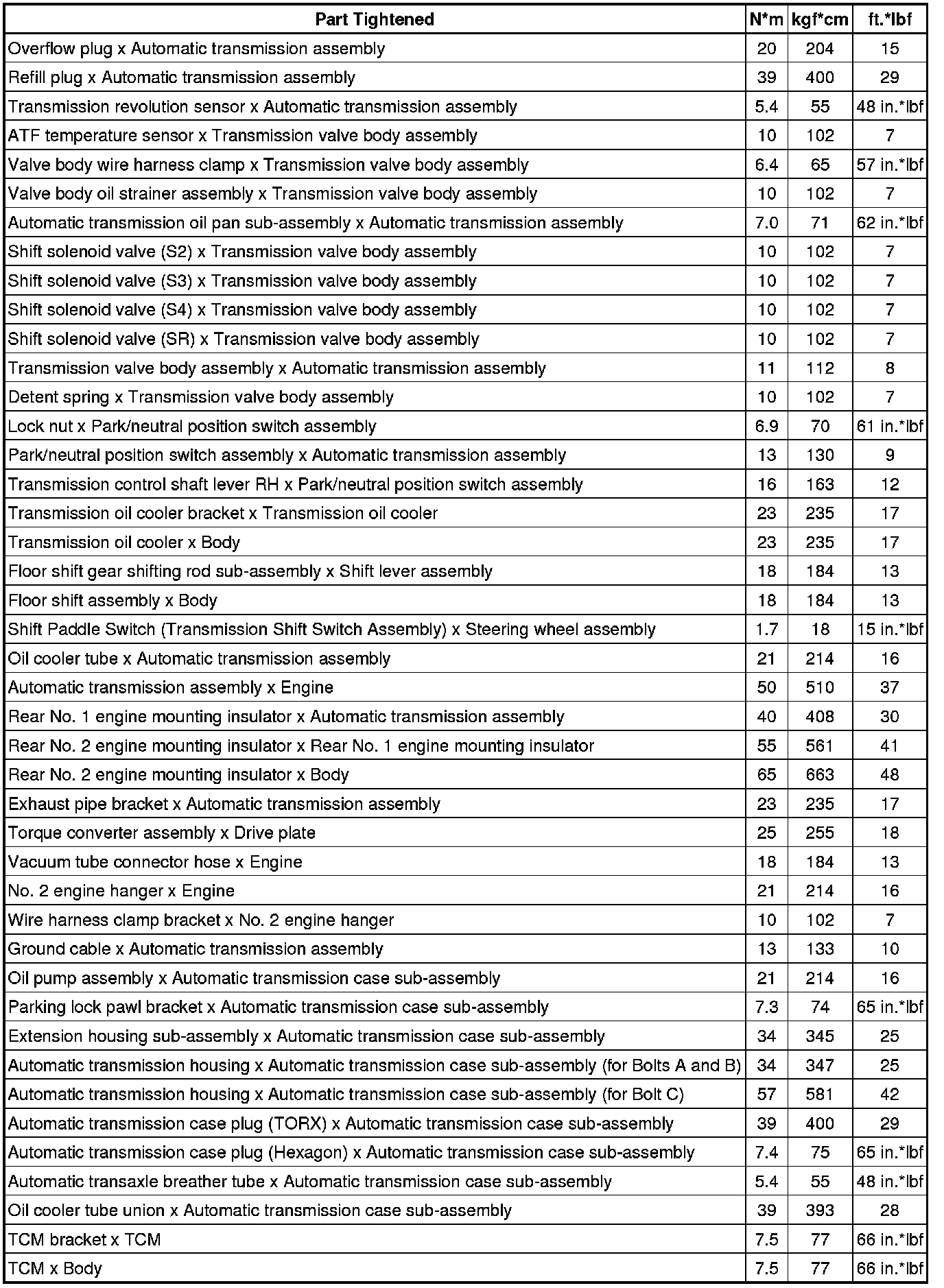

SPECIFICATIONS: TX6A AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS; 2013 MY FR-S [03/2012 -]
