Shift Paddle Switch Circuit

TX6A AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: Shift Paddle Switch Circuit; 2013 MY FR-S [03/2012 -]
- Shift Paddle Switch Circuit

DESCRIPTION

When the shift lever is in M, it is possible to change into any gear using the steering assembly transmission shift switch assembly.

Additionally, when the vehicle is being driving with the shift lever in D, operating the steering assembly transmission shift switch assembly changes to selection of gears with the shift lever in D, enabling shifting to any gear.

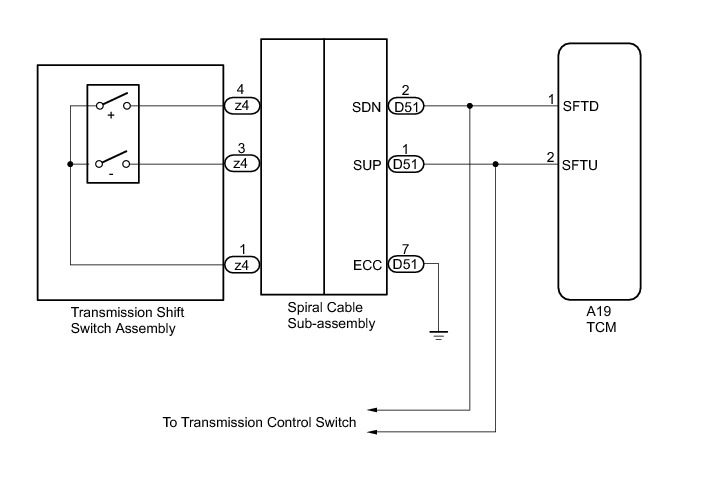

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Read the value displayed on the Techstream.

OK





NG -- CHECK HARNESS AND CONNECTOR (TRANSMISSION SHIFT SWITCH ASSEMBLY - TCM)

OK -- CHECK INTERMITTENT PROBLEMS

2. CHECK HARNESS AND CONNECTOR (TRANSMISSION SHIFT SWITCH ASSEMBLY - TCM)

(a) Disconnect the TCM connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Connect the TCM connector.

NG -- CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - BODY GROUND)
OK -- Continue to next step.

3. REPLACE TCM

(a) Replace the TCM Removal.

NEXT -- PERFORM THE RESET MEMORY Programming and Relearning

4. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - BODY GROUND)

(a) Disconnect the spiral cable sub-assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Connect the spiral cable sub-assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - TCM)

(a) Disconnect the TCM connector.

(b) Disconnect the spiral cable sub-assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(d) Connect the TCM connector.

(e) Connect the spiral cable sub-assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

6. INSPECT TRANSMISSION SHIFT SWITCH ASSEMBLY

(a) Inspect the transmission shift switch assembly Shift Paddle Switch.

NG -- REPLACE TRANSMISSION SHIFT SWITCH ASSEMBLY Removal

OK -- INSPECT SPIRAL CABLE SUB-ASSEMBLY Shift Paddle Switch
