Scan Tool Testing and Procedures

TX6A AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: DATA LIST / ACTIVE TEST; 2013 MY FR-S [03/2012 -]

1. DATA LIST

HINT
Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

NOTICE:
In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

(a) Warm up the engine.

(b) Turn the ignition switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON.

(e) Turn the Techstream on.

(f) Enter the following menus: "Powertrain / ECT / Data List" or "Body Electrical / Main Body / Data List".

(g) According to the display on the Techstream, read the "Data List".

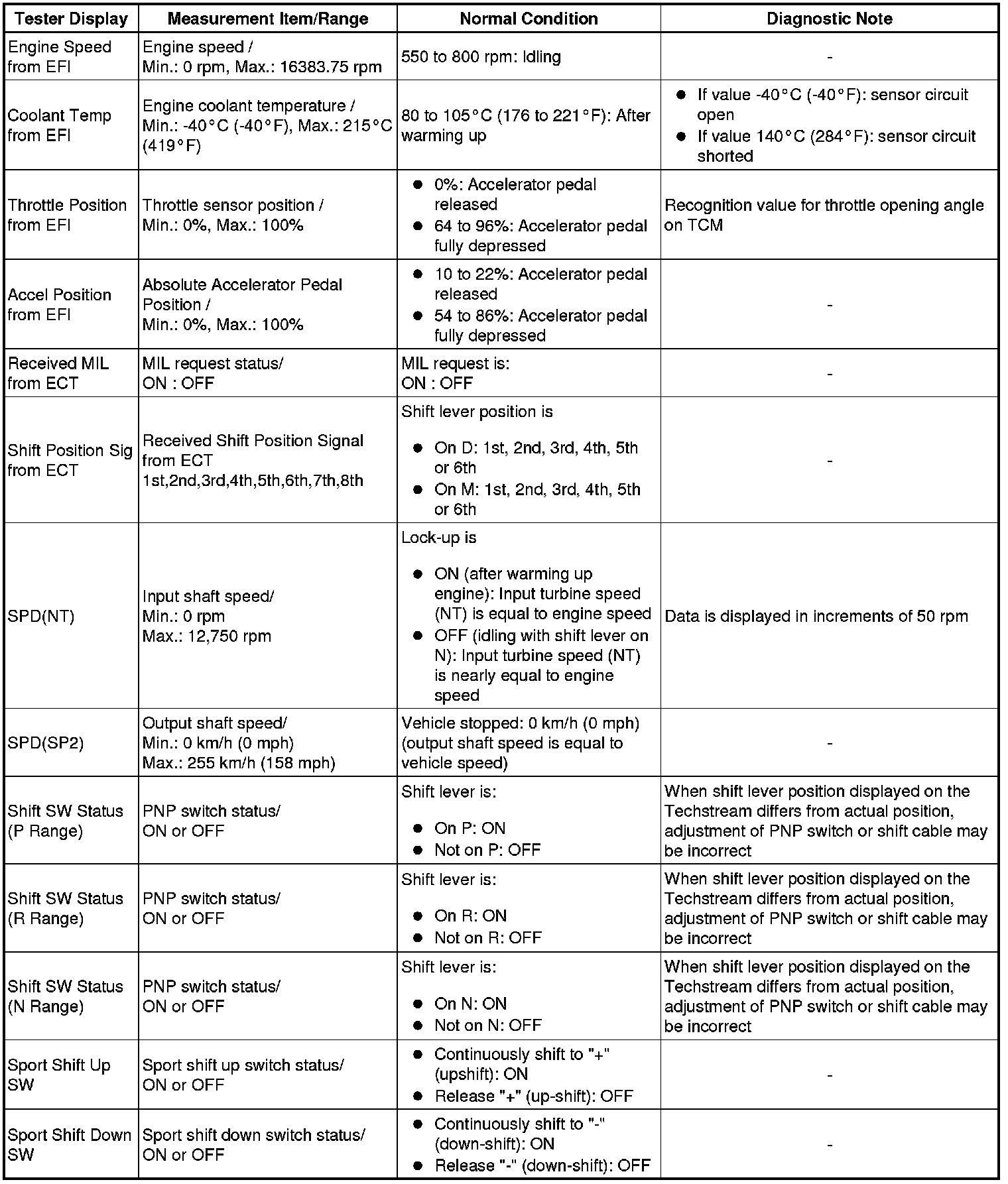

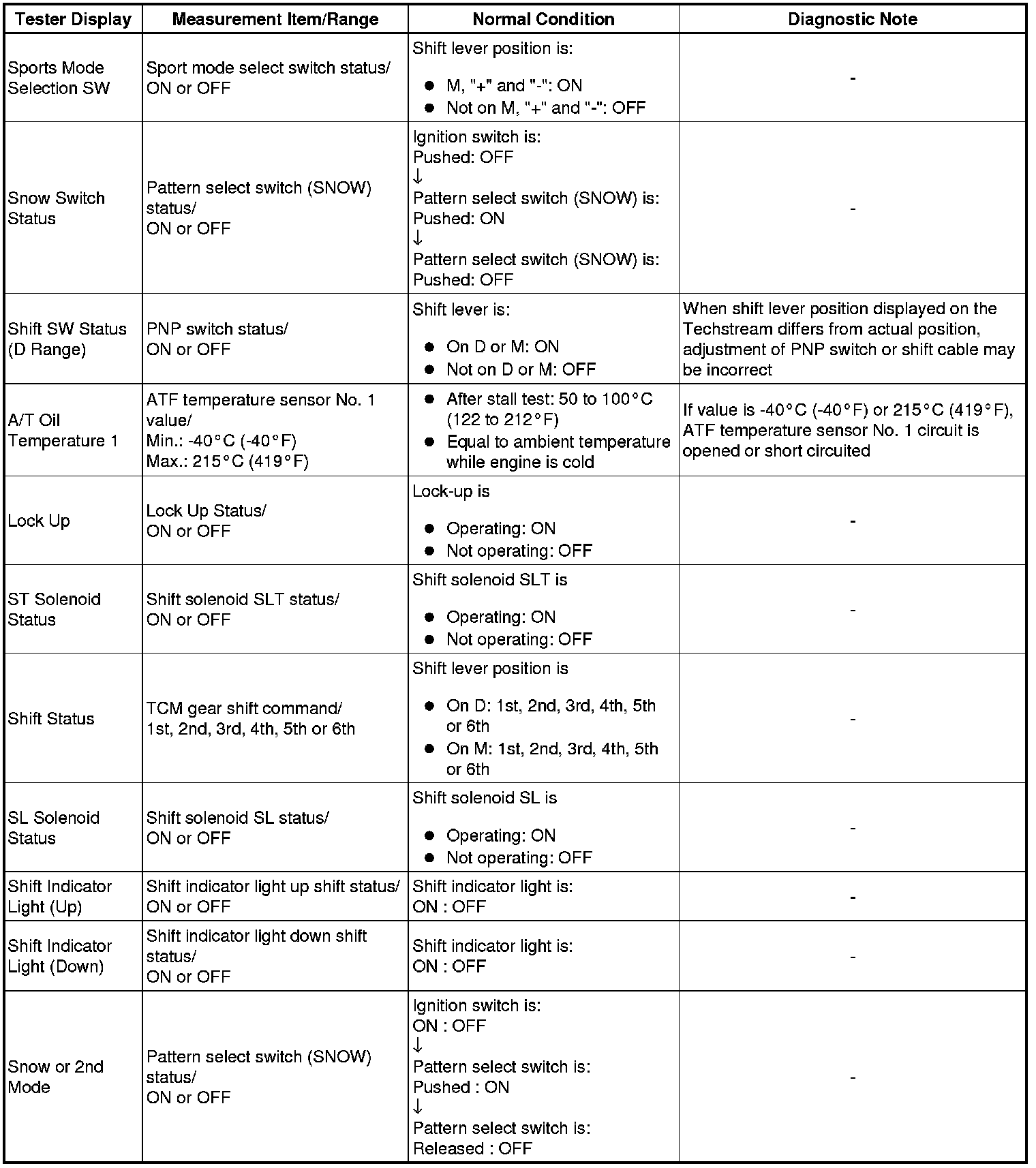

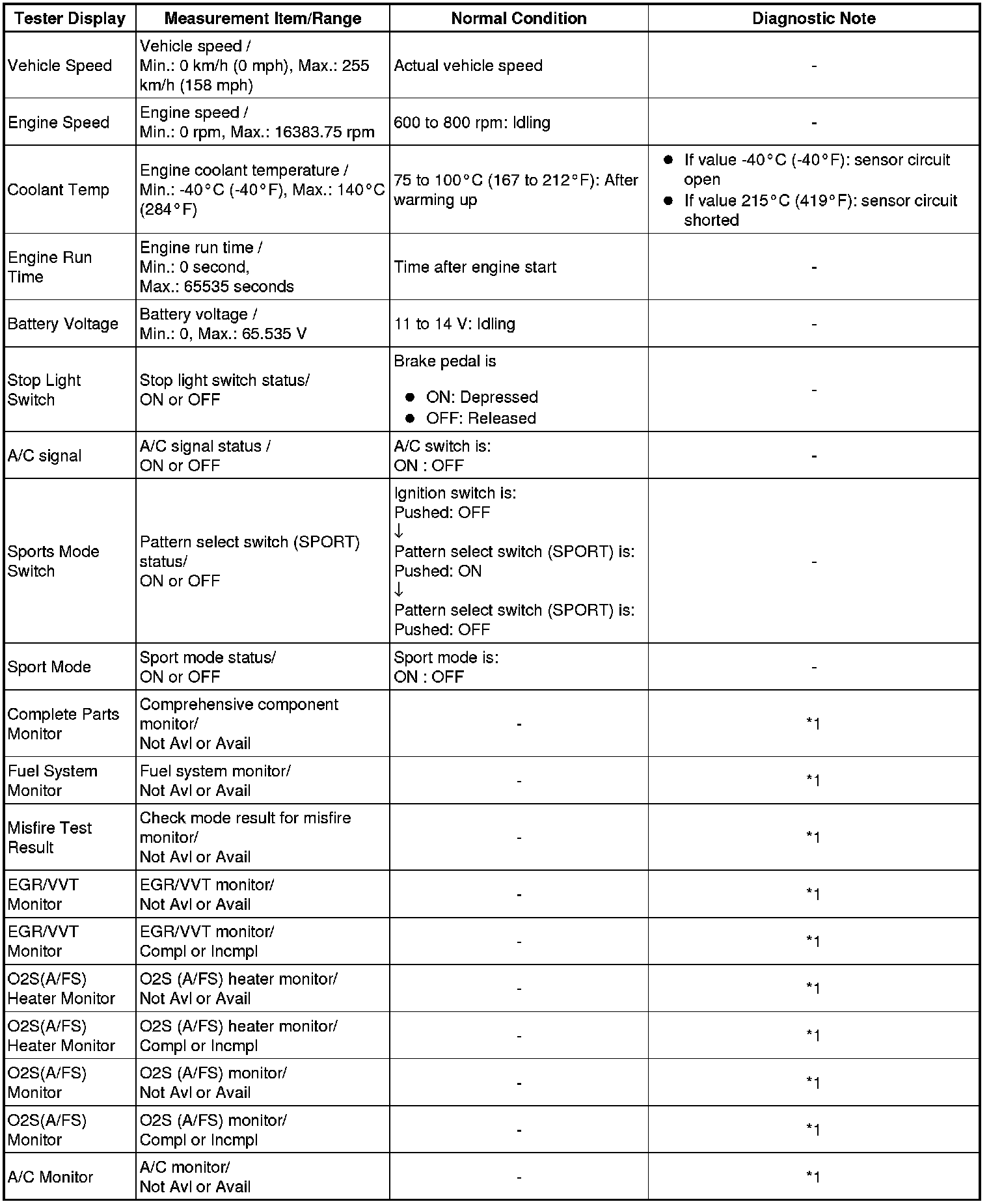

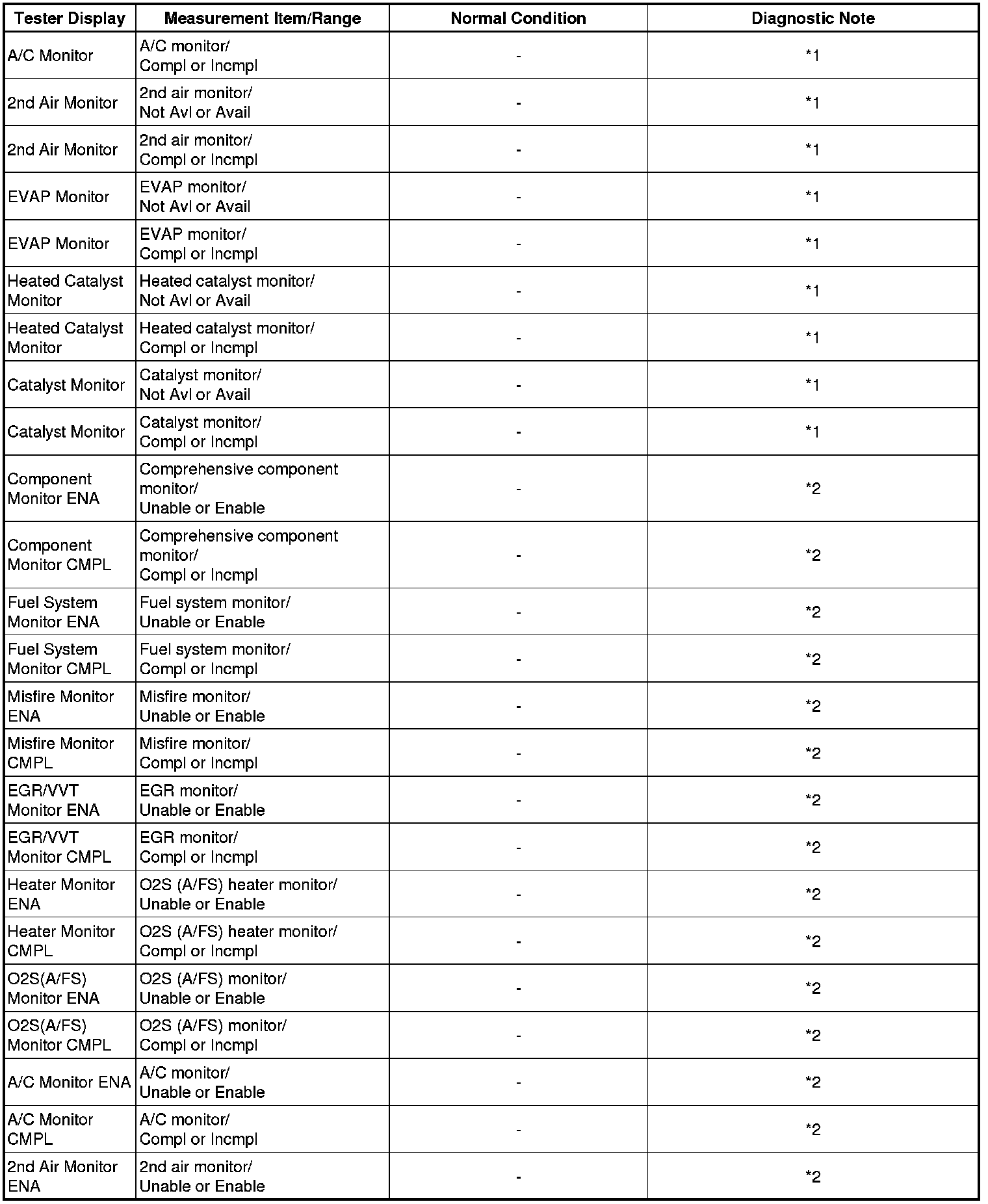

"Powertrain / ECT / Data List"





















*1:

Avail: The monitor is available on the vehicle.

Not Avl: The monitor is not available on the vehicle.

Incmpl / Compl: The item changes from Incmpl to Compl if the monitor was completed at least once at some time in the past. This item does not change when the ignition switch is turned off. However, the item changes back to Incmpl when DTCs are cleared or the battery cable is disconnected.

Monitor result (mode 06): The last judgment result is output. This is not cleared when the ignition switch is turned off, but is cleared when DTCs are cleared.

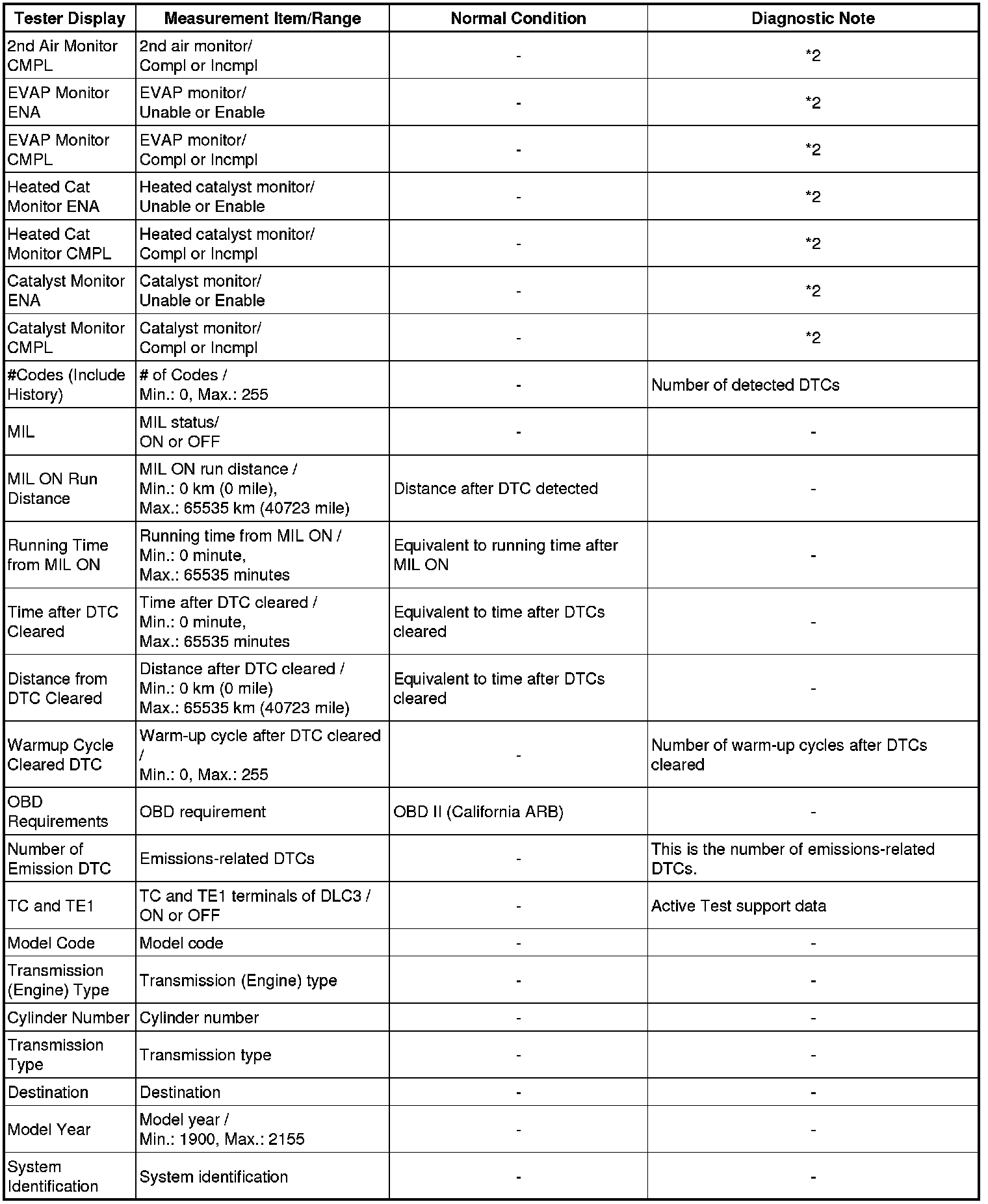

*2:

Enable: The monitor is available on the vehicle.

Unable: The monitor is not available on the vehicle.

Incmpl / Compl: The item changes from Incmpl to Compl if the monitor was completed during the current trip. The item changes back to Incmpl when the ignition switch is turned off.

Monitor result (mode 06): The last judgment result is output. This is not cleared when the ignition switch is turned off, but is cleared when DTCs are cleared. Therefore, only when DTCs are cleared at the beginning of a trip do the system monitor (Monitor Information 2) and monitor result (mode 06) match.

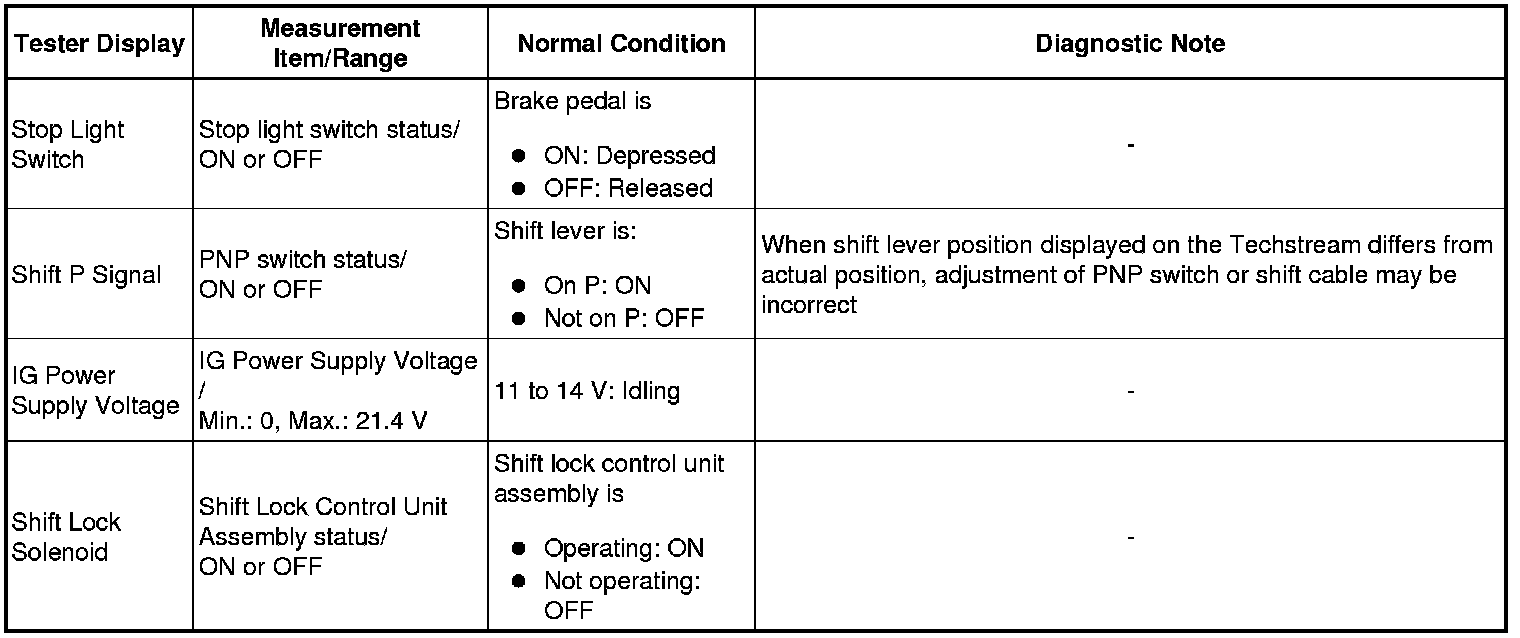

"Powertrain / ECT / Data List"





2. ACTIVE TEST

HINT
Using Techstream to perform Active Test allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Test early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Test.

(a) Warm up the engine.

(b) Turn the ignition switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON.

(e) Turn the Techstream on.

(f) Enter the following menus: "Powertrain / ECT / Active Test" or "Body Electrical / Main Body / Active Test".

(g) According to the display on the Techstream, perform the "Active Test".

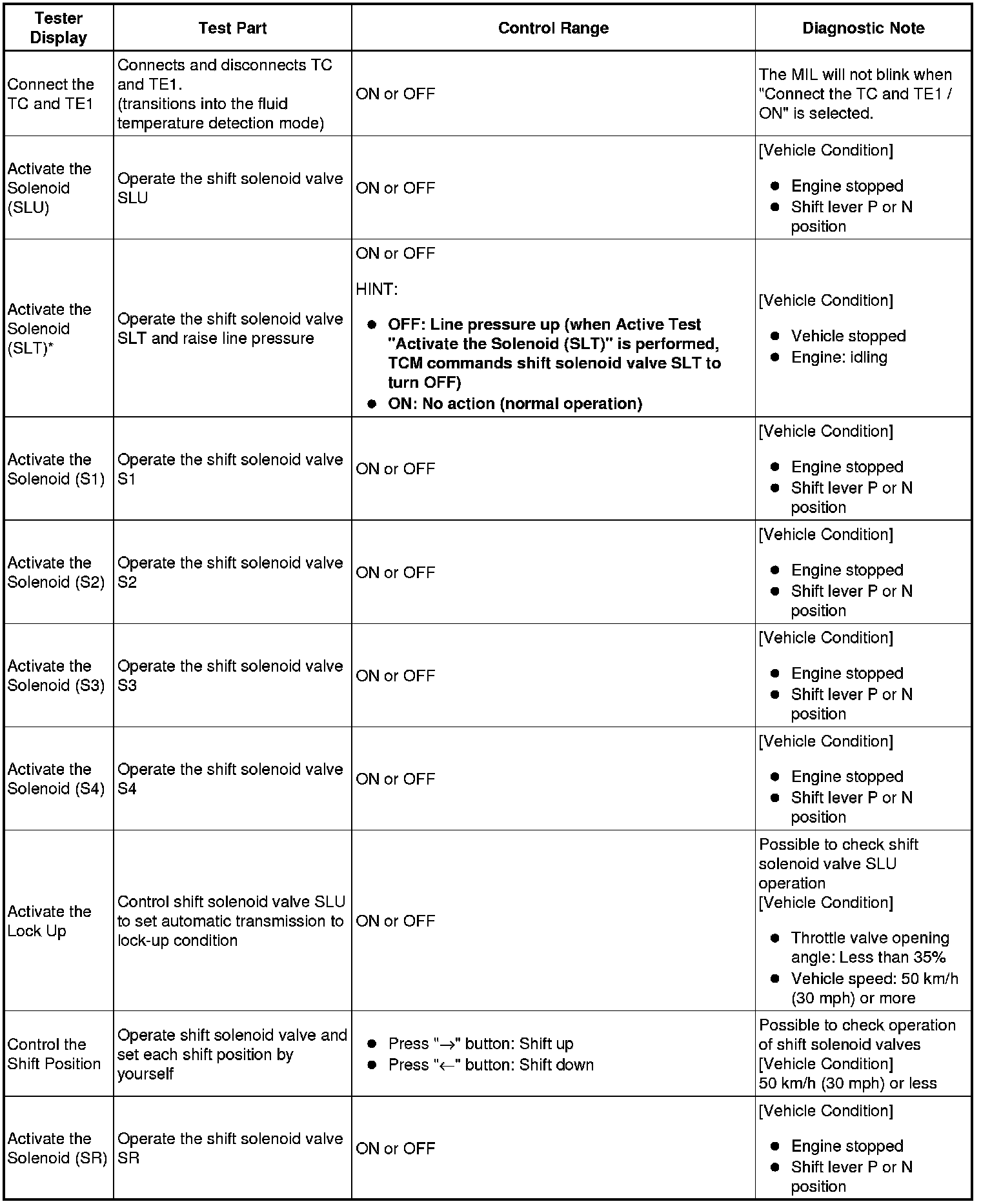

"Powertrain / ECT / Active Test"









*: "Activate the Solenoid (SLT)" in the Active Test is performed to check the line pressure changes by connecting the SST to the automatic transmission, which is used in the HYDRAULIC TEST Hydraulic Test as well.

HINT
The pressure values in Active Test and HYDRAULIC TEST are different from each other.

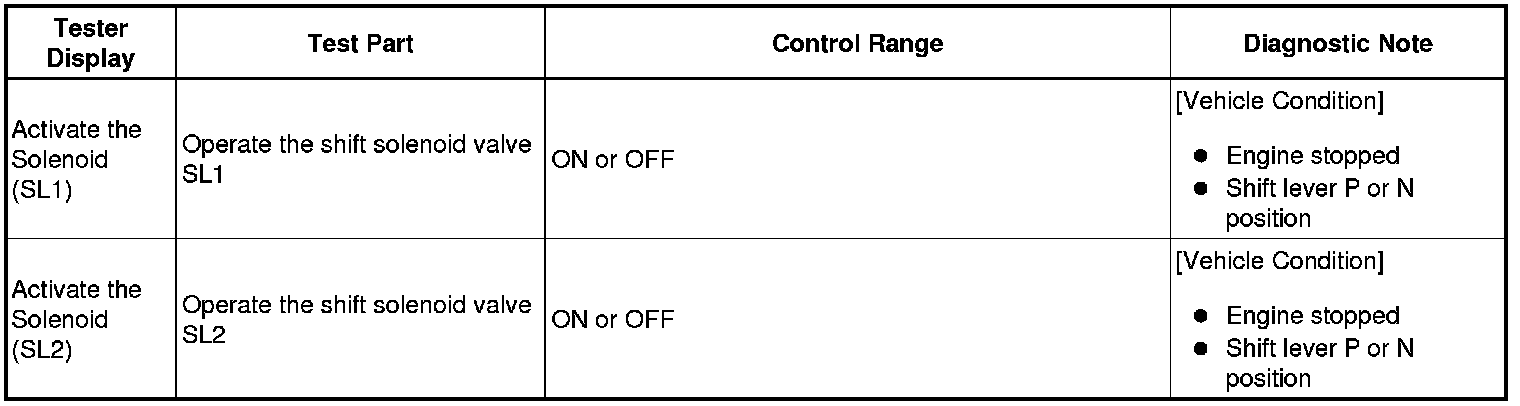

"Body Electrical / Main Body / Active Test"
