Symptom Related Diagnostic Procedures
TX6A AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: PROBLEM SYMPTOMS TABLE; 2013 MY FR-S [03/2012 -]
HINT
If a normal code is displayed during the diagnostic trouble code check although the trouble still occurs, check the electrical circuits for each symptom in the order given in the charts on the following pages and proceed to the page given for troubleshooting.
The Matrix Chart is divided into 2 chapters.
Chapter 1:
Refer to the table below when the trouble cause is considered to be electrical.
If the instruction "Proceed to next circuit inspection shown on matrix chart" is given in the flow chart of each circuit, proceed to the circuit with the next highest number in the table to continue the check.
If the trouble still occurs even though there are no abnormalities in any of the other circuits, check and replace the TCM.

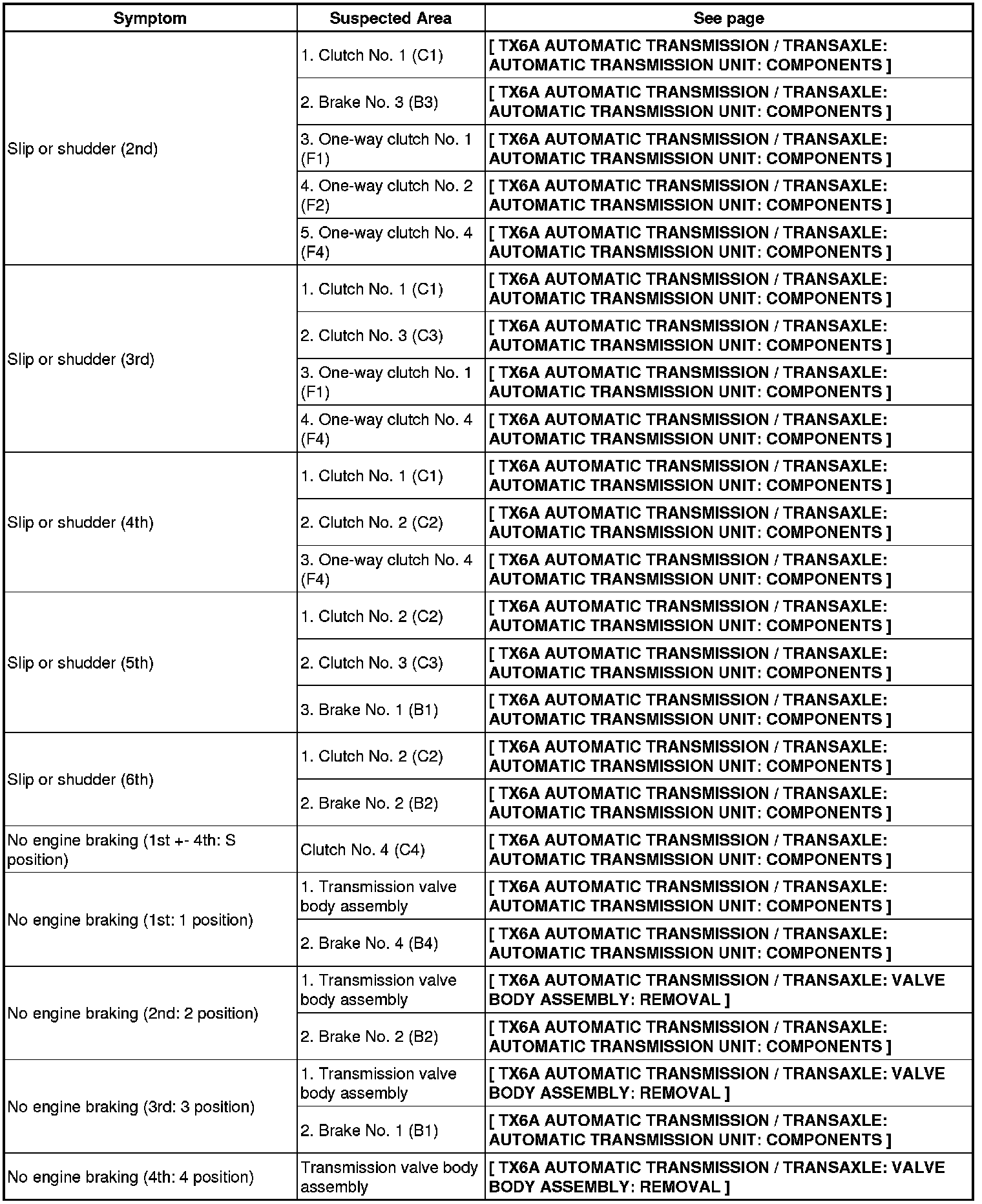

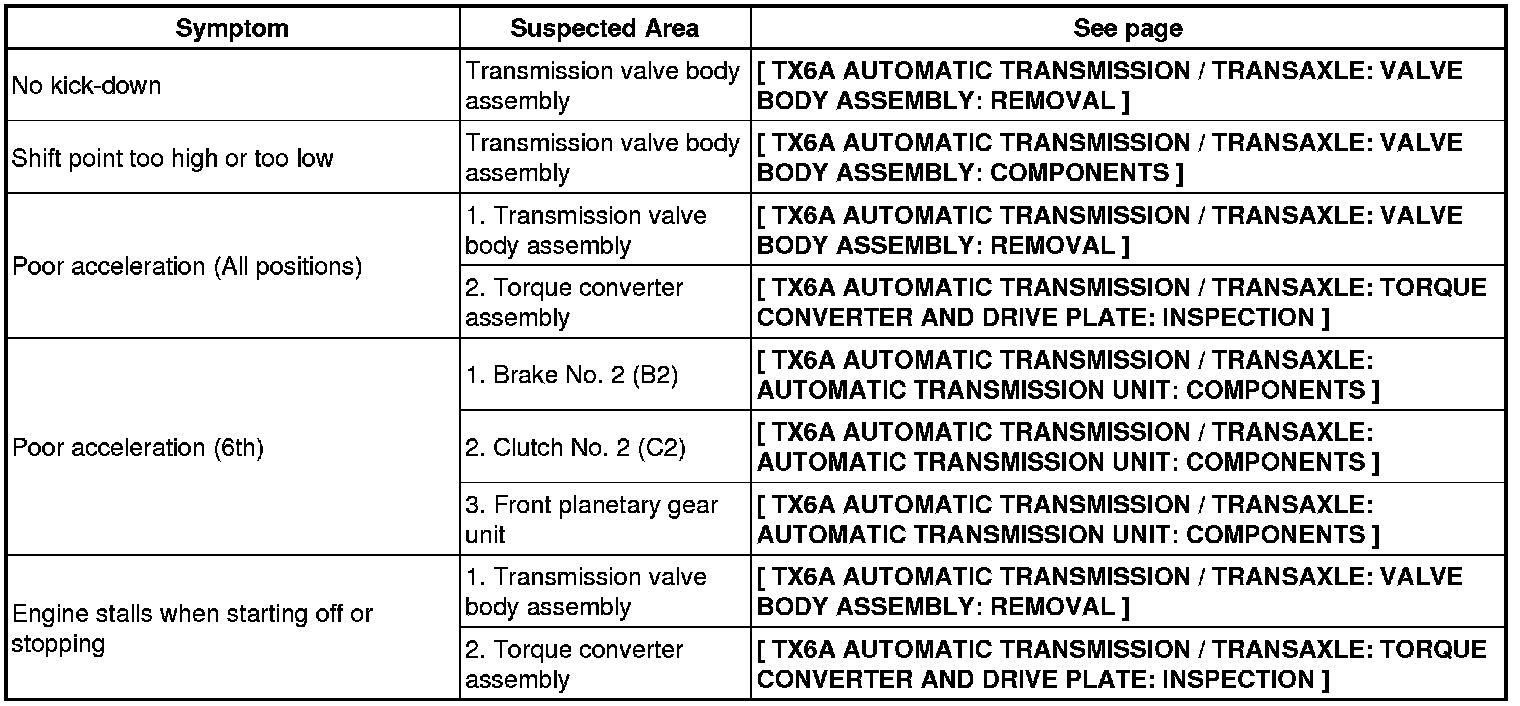

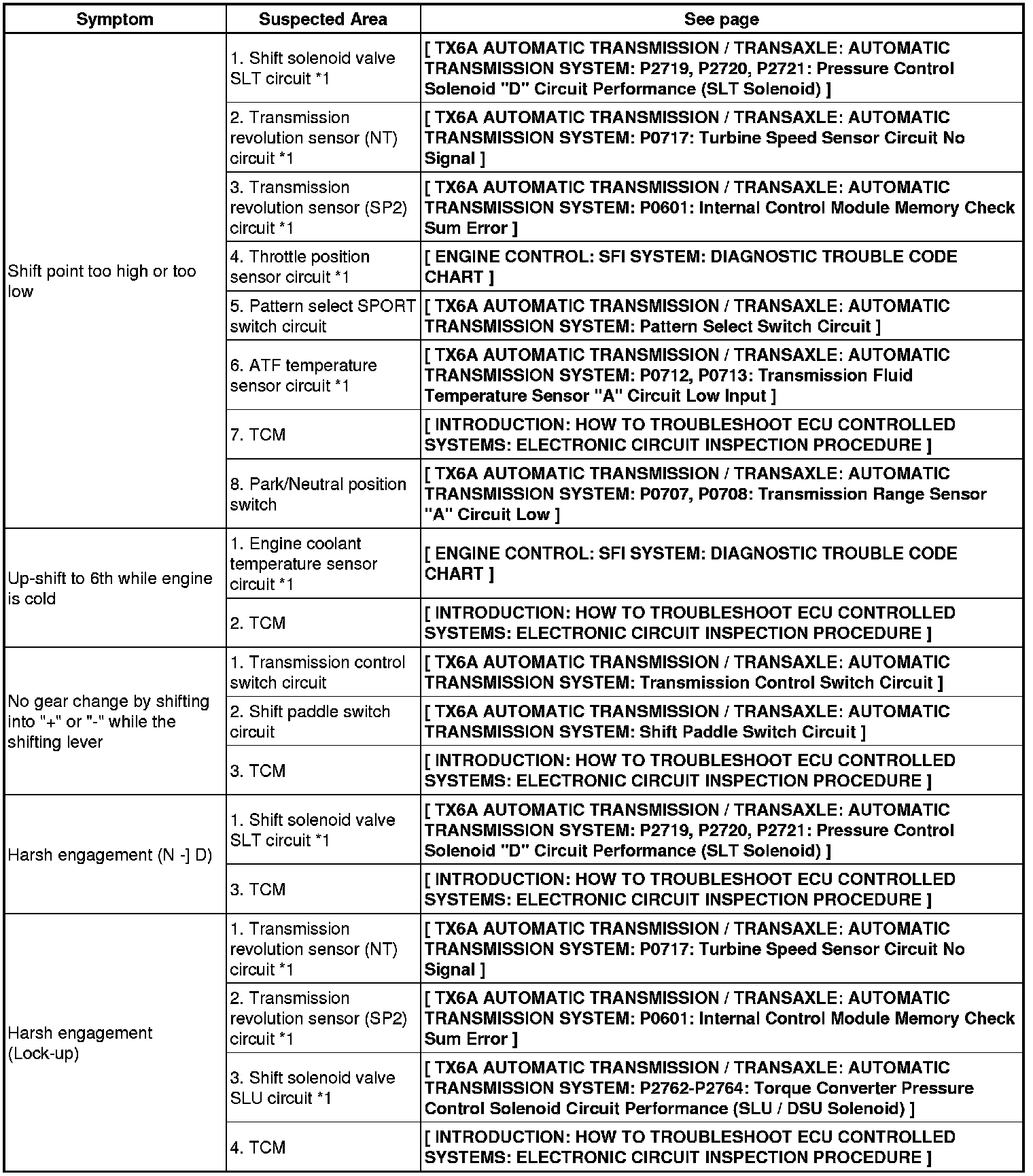

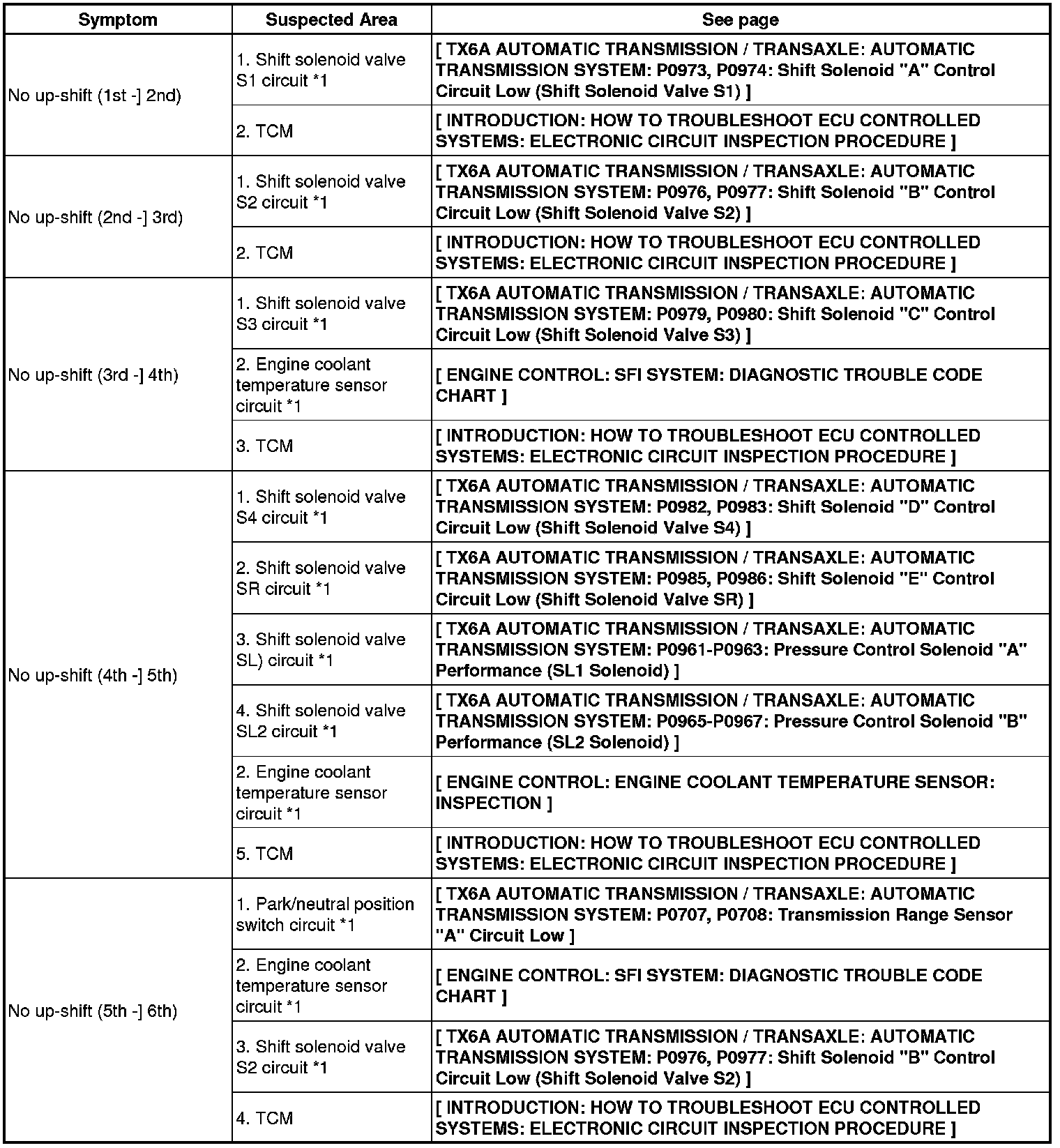

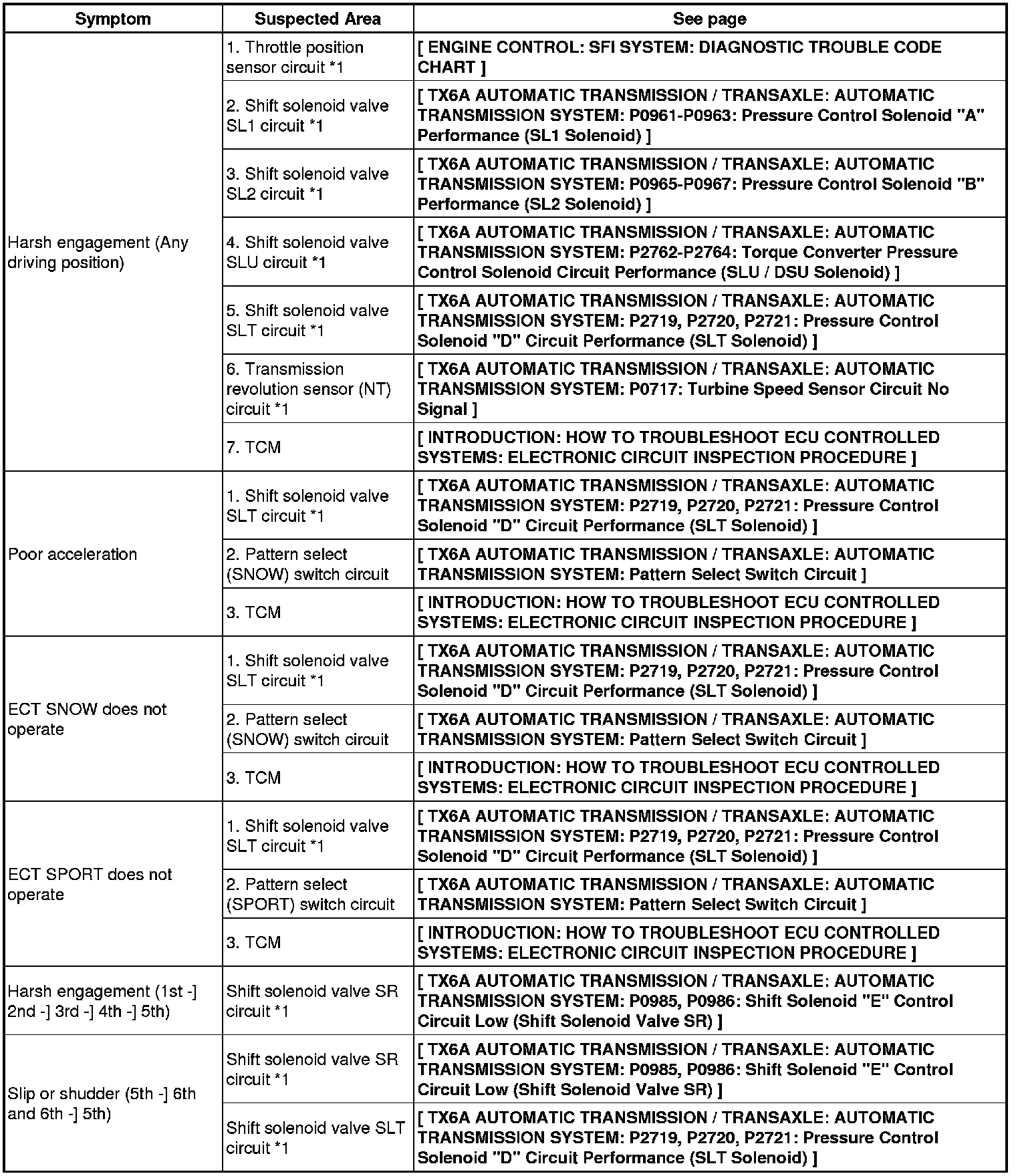

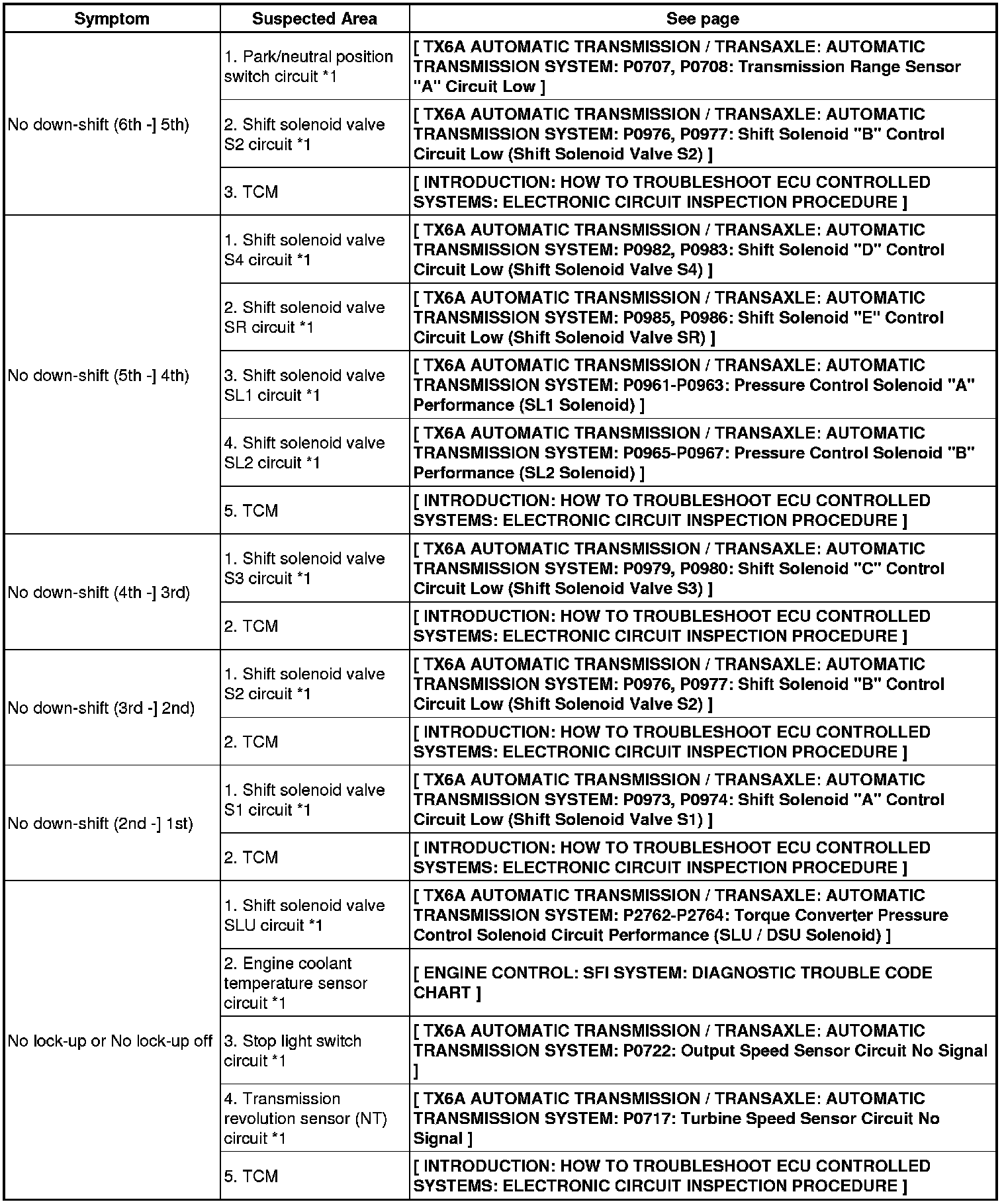

1. Chapter 1: Electronic Circuit Matrix Chart
HINT
*1: When the circuit is detective, a DTC may be output.

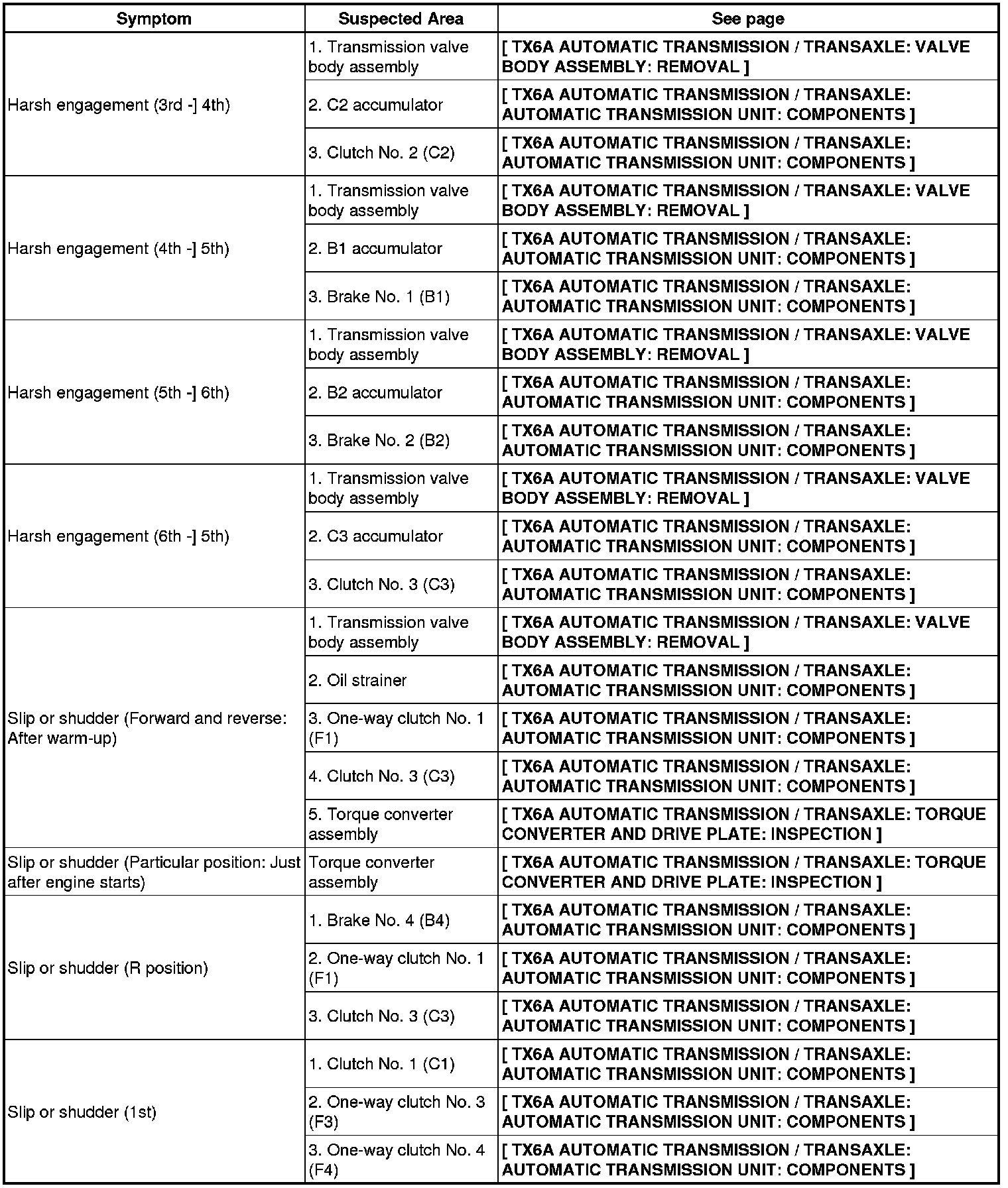

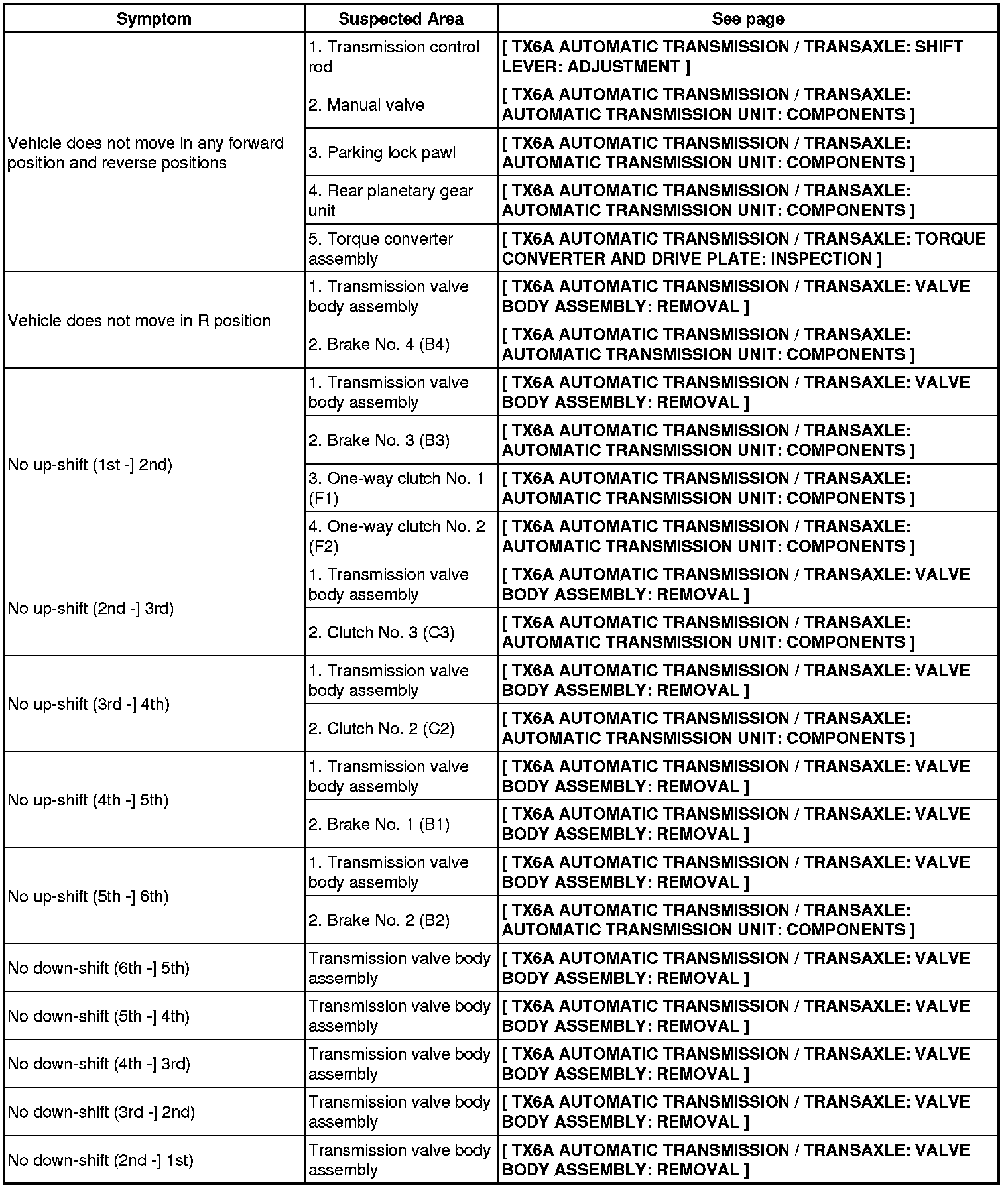

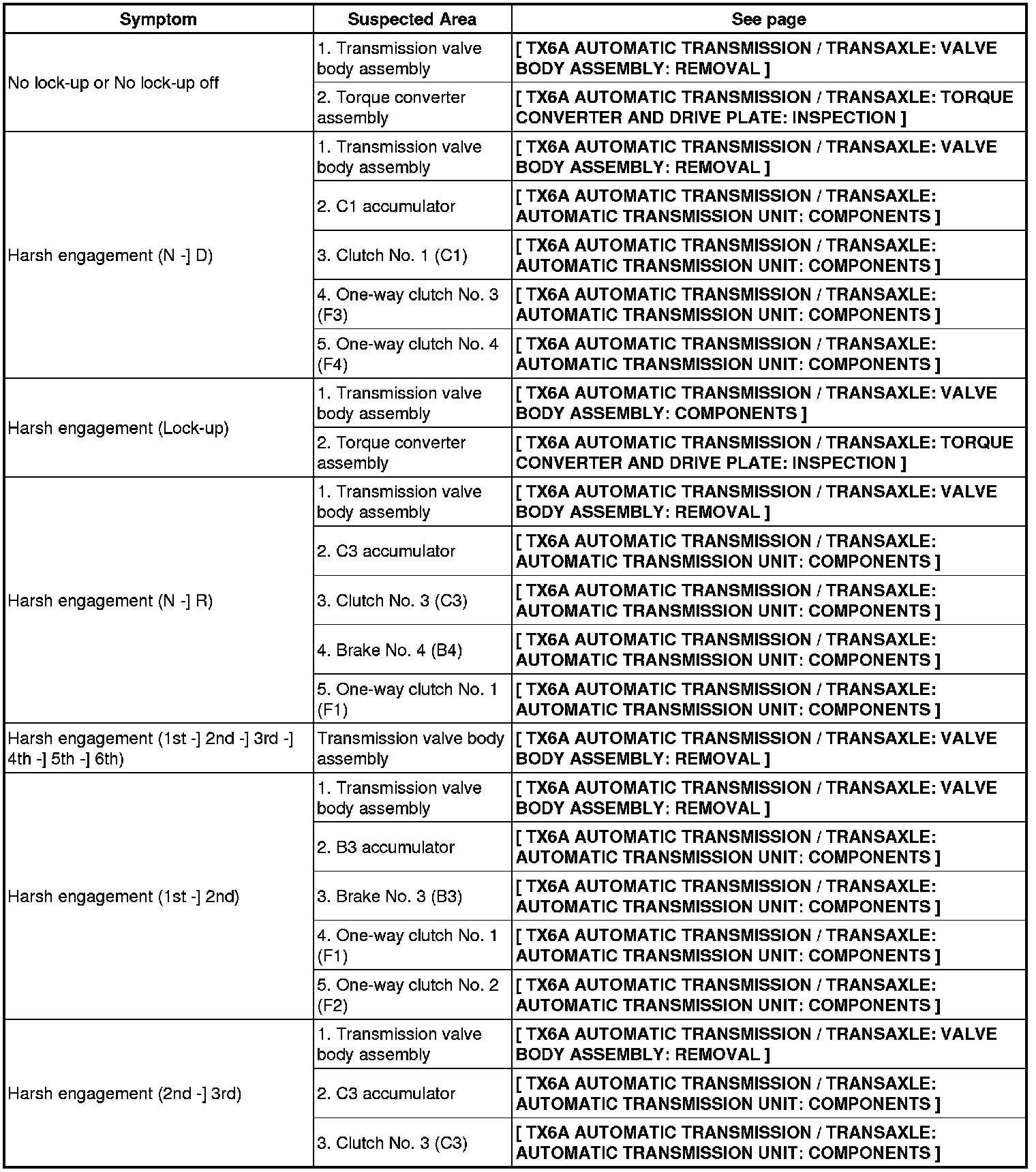

2. Chapter 2: On-Vehicle Repair and Off-Vehicle Repair
