Differential Assembly: Testing and Inspection
AXLE AND DIFFERENTIAL: DIFFERENTIAL SYSTEM: PROBLEM SYMPTOMS TABLE; 2013 MY FR-S [03/2012 -]
HINT

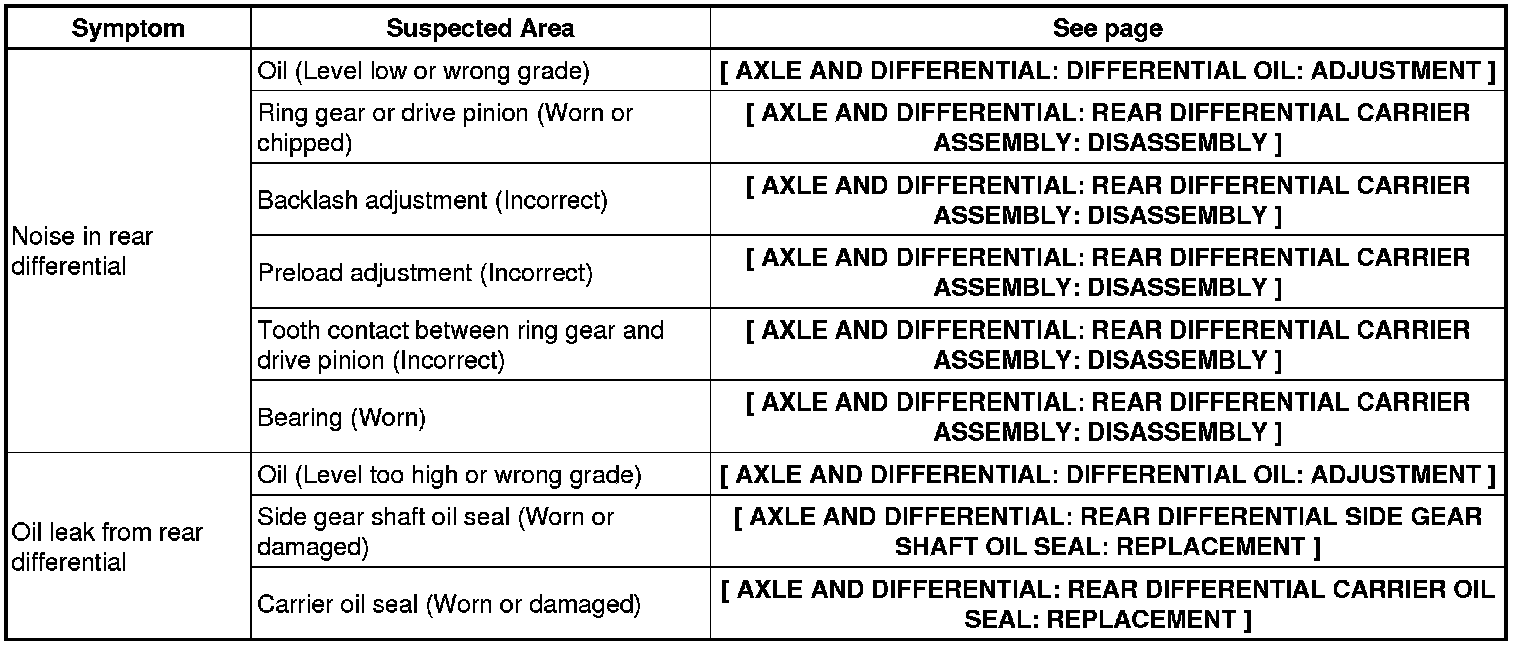

Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
Differential System
