Windshield Washer Motor: Testing and Inspection
WIPER / WASHER: WASHER MOTOR: INSPECTION; 2013 MY FR-S [03/2012 -]
1. INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
(a) Disconnect the front washer motor and pump assembly connector.
HINT
Make sure that the front washer motor and pump assembly is installed to the washer jar.
(b) Fill the washer jar with windshield washer fluid.
(c) Check that the windshield washer fluid flows from the washer jar.

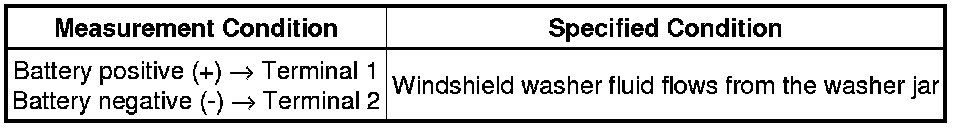

OK:
If the result is not as specified, replace the windshield washer motor and pump assembly.
