Paint: Locations




APPLICATION AREAS

CAUTION: Work must be performed while wearing the appropriate protective gear and in a well-ventilated area.

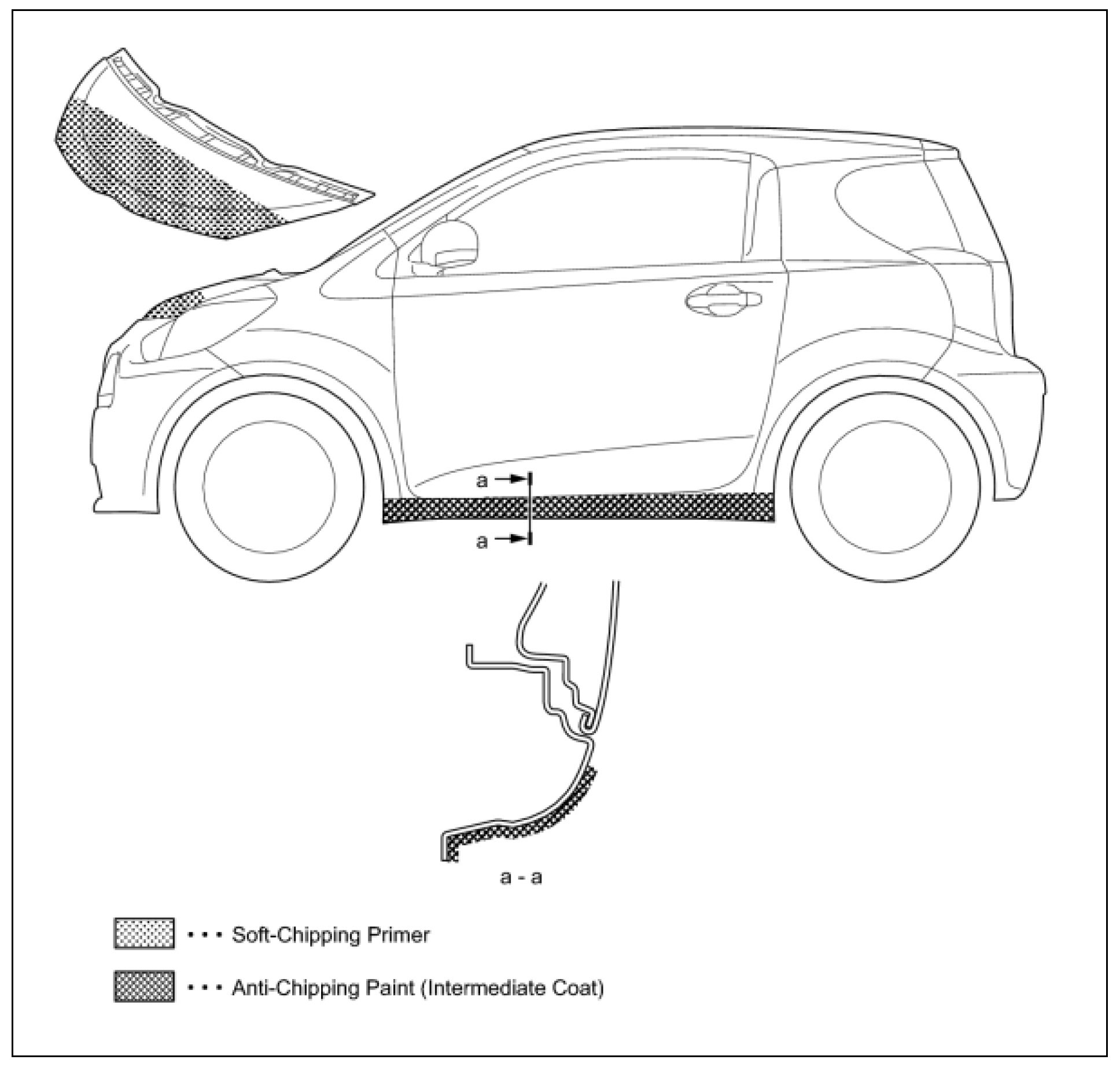

1. To protect the body from damage due to gravel, apply the anti-chipping paint to the hood and rocker panels.

HINT:
- Apply anti-chipping paint to the indicated areas first, before applying the top coat.
- If anti-chipping paint is unnecessarily applied to an area, apply degreasing agent to a clean cloth and clean the paint off immediately.
