Battery / Power Control System: Service and Repair

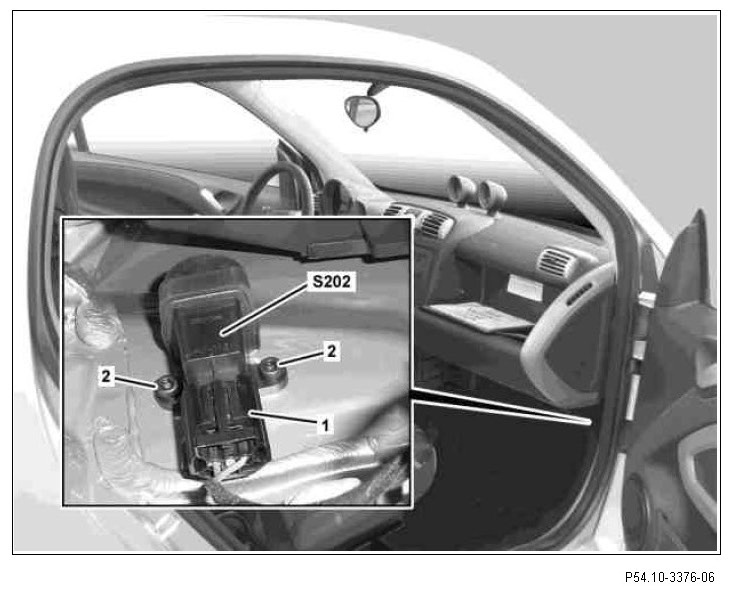

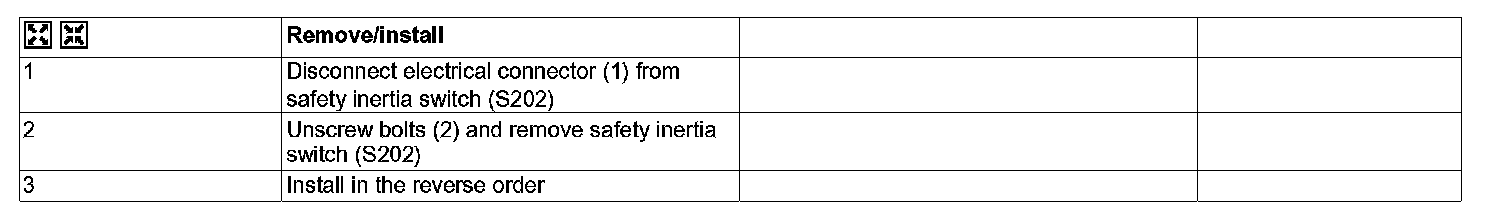

AR54.10-P-0050MEV Remove/install inertia switch - MODEL 451.391 /491 with ENGINE 780.009
1
Electrical connector
2
Screw
S202
Safety inertia switch
