AR83.55-P-5300MEV Remove/Install Refrigerant Compressor




AR83.55-P-5300MEV Remove/install Refrigerant Compressor

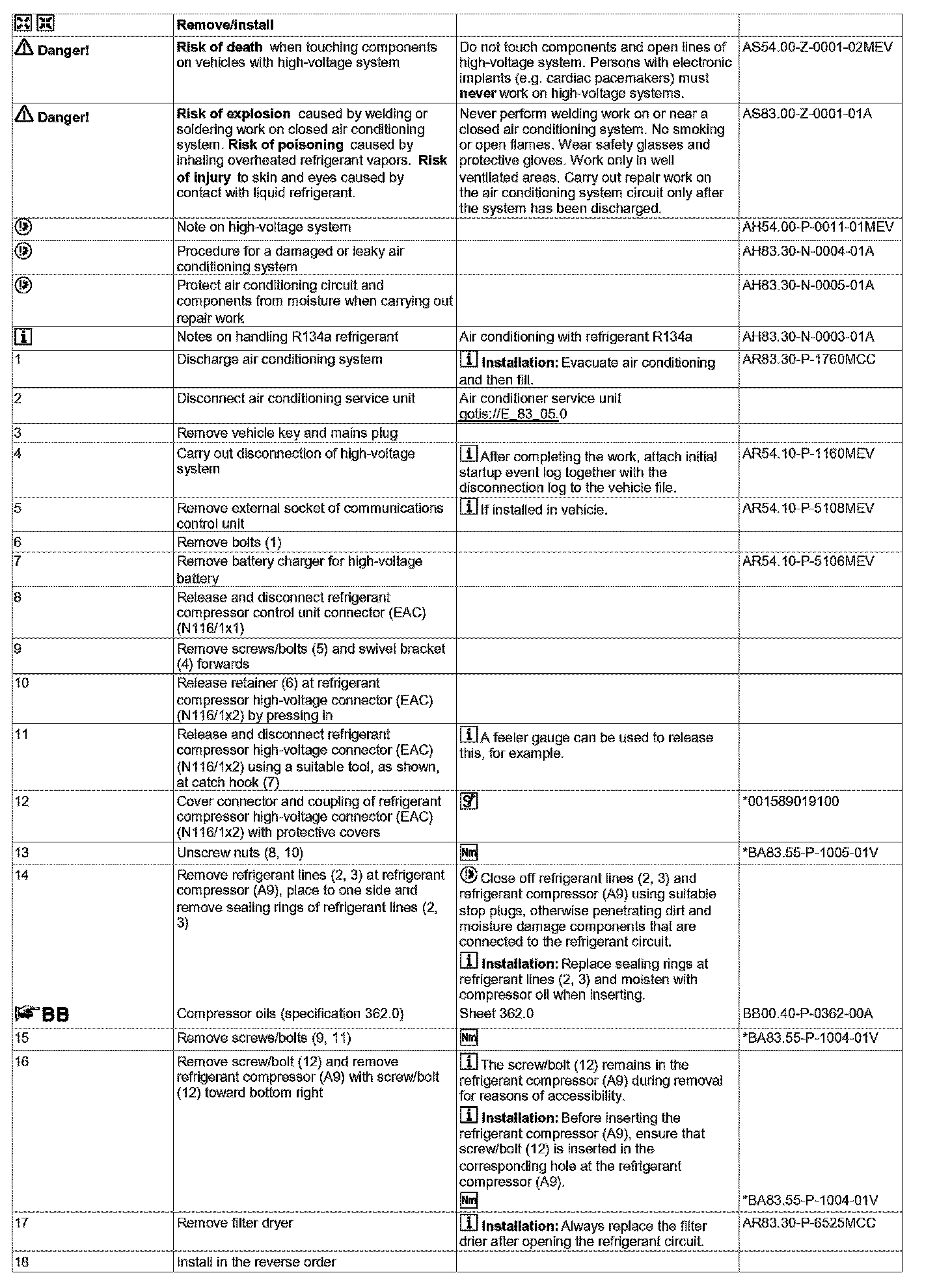

- ENGINES 780.009 in MODEL 451.391 /491

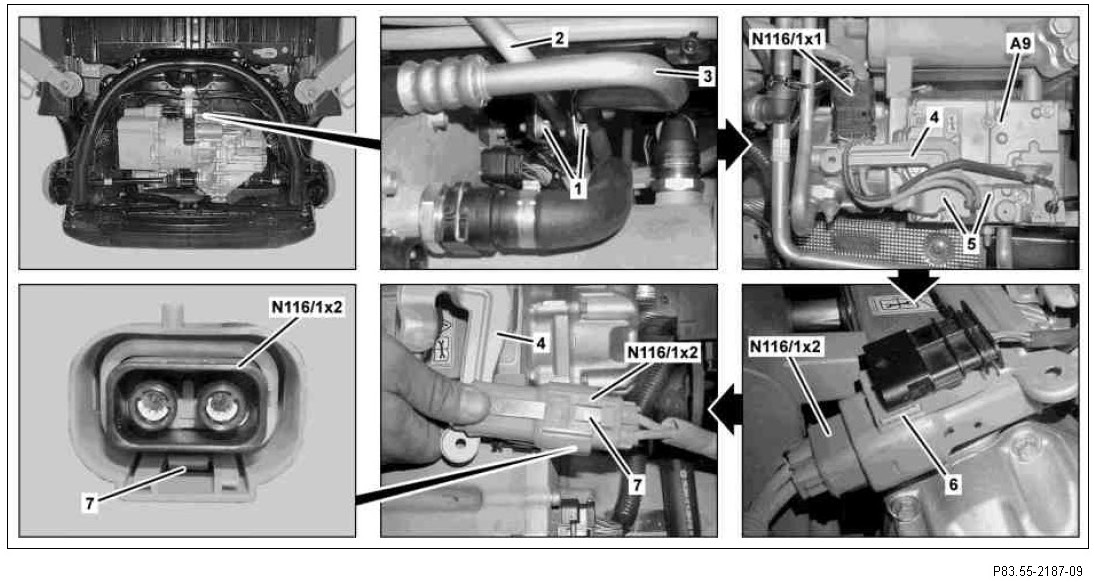

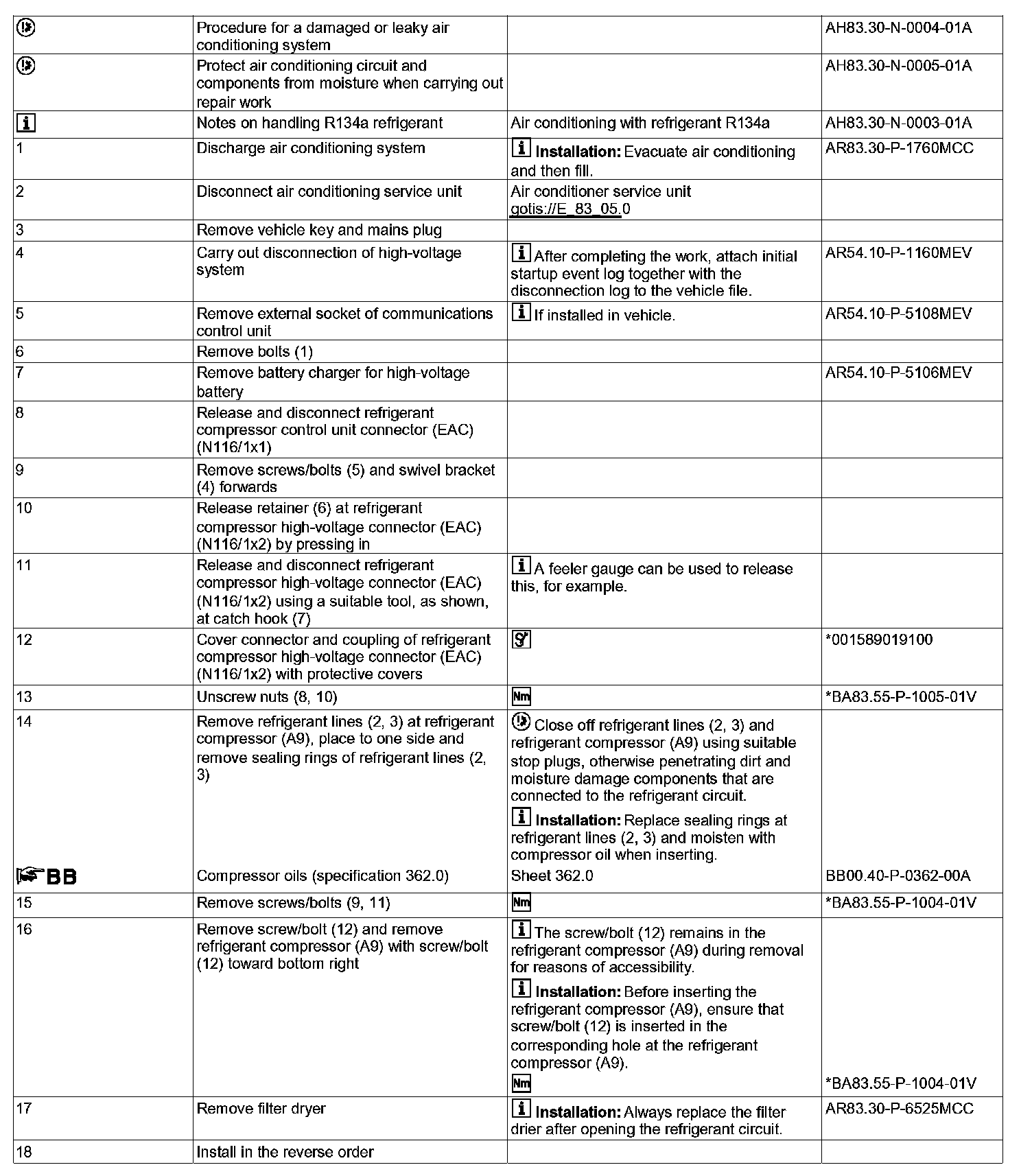

1 Bolts
2 Refrigerant line
3 Refrigerant line
4 Bracket
5 Bolts
6 Retainer
7 Catch hook

A9 Refrigerant compressor
N116/1x1 Refrigerant compressor control unit connector (EAC)
N116/1x2 Refrigerant compressor high- voltage connector (EAC)

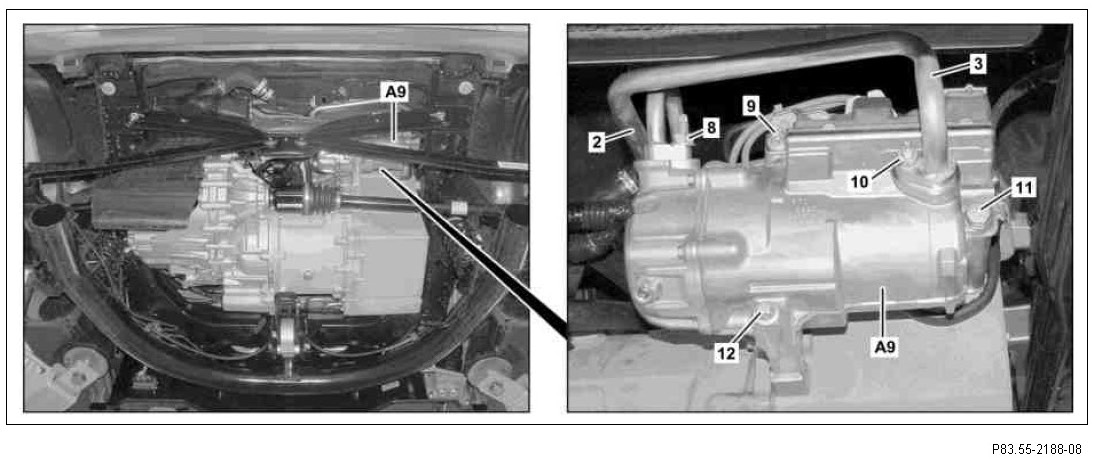

2 Refrigerant line
3 Refrigerant line
8 Nut
9 Screw
10 Nut
11 Screw
12 Screw

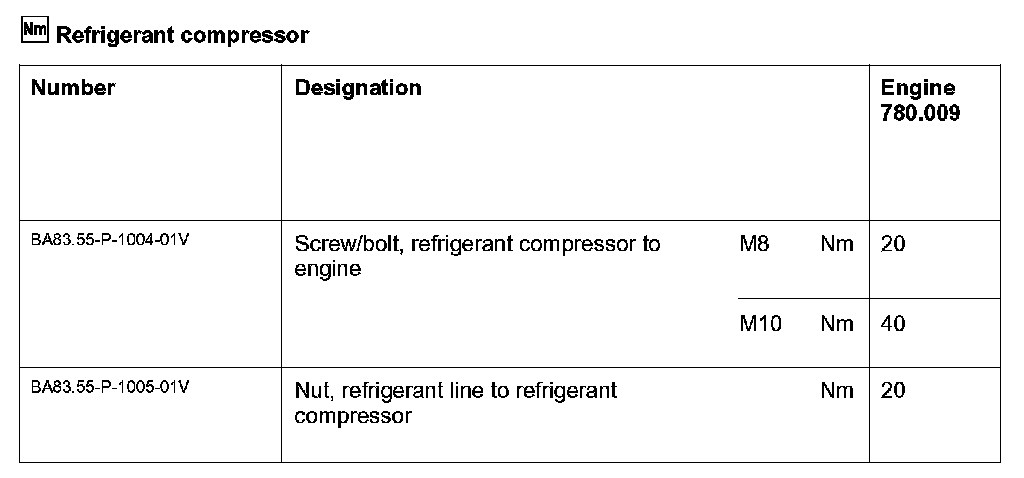

A9 Refrigerant compressor
