Digital Dash - Speedometer Drive Gear Box Replacement

83subaru1

NUMBER 08-08-83


DATE 5/11/83
APPLICABILITY ALL 1983 VEHICLES EQUIPPED WITH A

DIGITAL DASH

SUBJECT: REPLACEMENT OF THE SPEEDOMETER DRIVE GEAR BOX PART NUMBER 785 020 270

THIS BULLETIN IS FOR INFORMATIONAL PURPOSES ONLY..

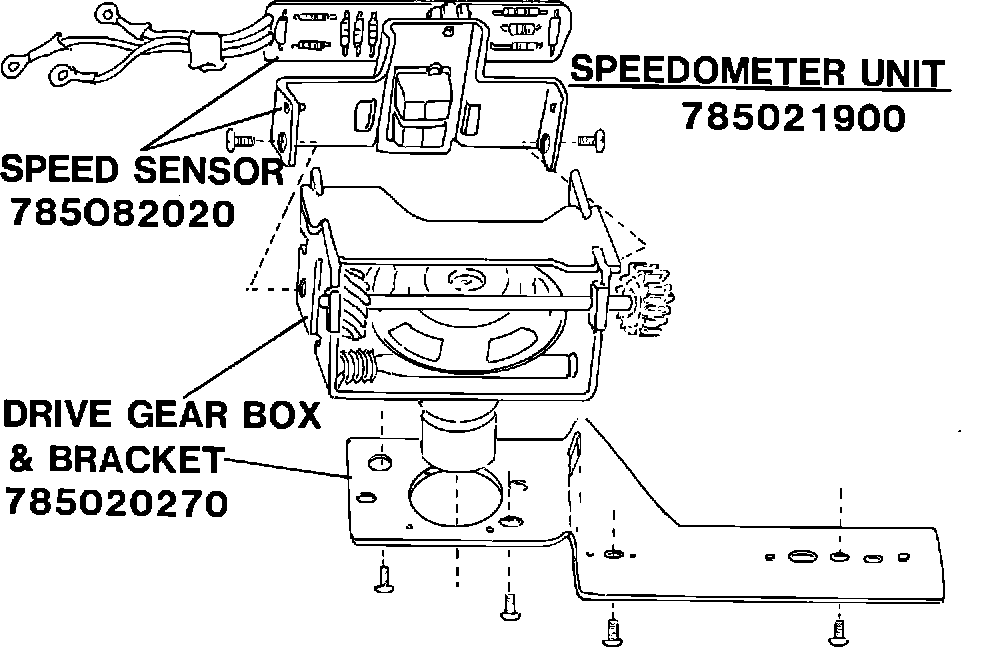

FIGURE 1:

Along with the other components of the digital dash, the speedometer drive gear box is now available as a replacement part. The speedometer drive gear box can be ordered under part number 785 020 270 and can be ordered through normal parts channels. See Figure 1.
THE OPERATION NUMBER FOR THIS PROCEDURE IS *144-117 WITH A TIME OF .07.
