Stabilizer Bar Bushing - Production Modification

NUMBER 05-16-85

APPLICABILITY

ALL 1985 STATION WAGONS AND 4-DOOR SEDANS DATE 04-03-85

SUBJECT: STABILIZER BAR BUSHINGS

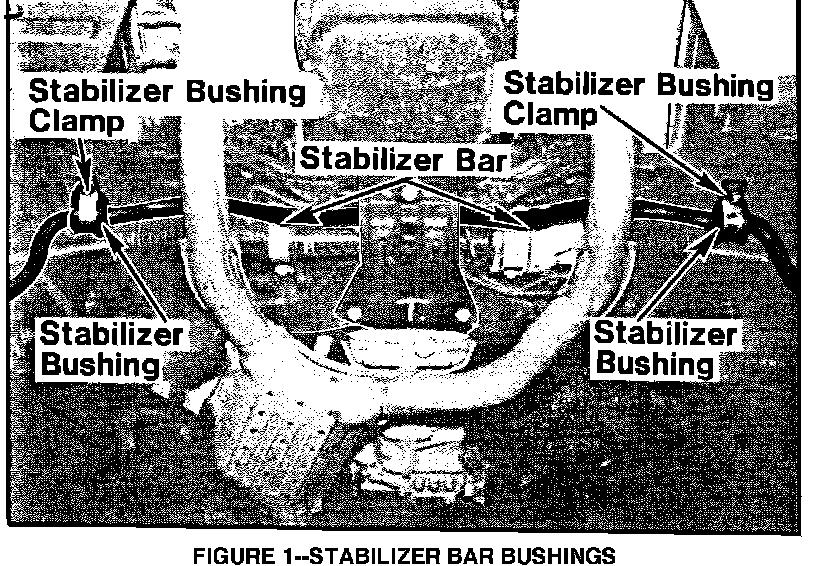

FIGURE 1 - STABILIZER BAR BUSHINGS:

The stabilizer bushings and stabilizer bushing clamps for all 1985 4-Door Sedans and Station Wagons (shown in the photograph below) have been modified in production to prevent any possible squeaking during extreme cold weather operation.

Installation of these bushings in production began on December 15, 1984, with the following starting VIN's:

STATION WAGON 434 417
4-DOOR SEDAN 218 299

Only the modified parts listed below should be utilized when replacing the old bushings.

PART PART NO. APPLICABILITY I.D. MARK

Stabilizer Bushing 21047GA811 GL & DL 4-Door, Station Wagon White
and 4WD Station Wagon

Stabilizer Bushing 21047GA671 GL-10 4-Door & Station Wagon Pink


Stabilizer Bushing 210476GA821 All XT Coupes, RX and all Air Yellow/Green
Suspension Vehicles

Clamp 21050GA172 ALL -----
