Service Manual - Corrections
86subaru1NUMBER 01-101-86
APPLICABILITY 1987 4 DOOR, STATION WAGON AND 3 DOOR COUPE DATE 11-14-86
SUBJECT: 1987 SERVICE MANUAL CORRECTIONS

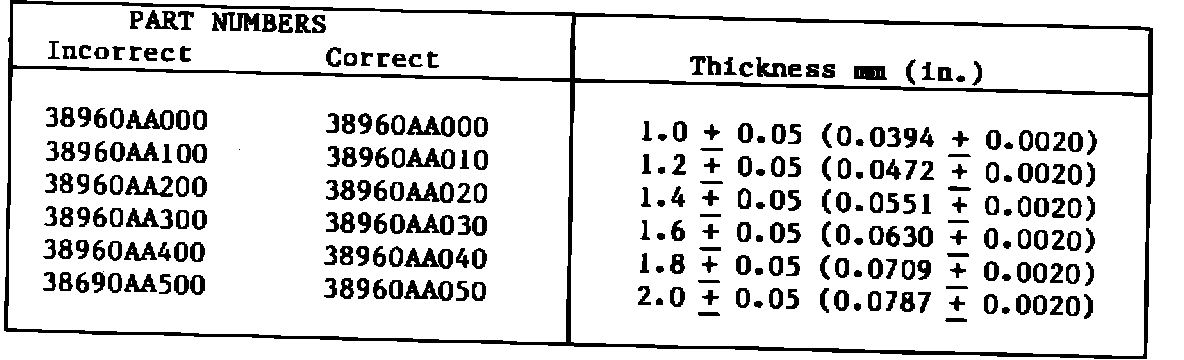

FIGURE 1:
I. CENTER DIFFERENTIAL BEVEL WASHERS
The 1987 Subaru service Manual section 3-1, pages 15 and 72, list incorrect part numbers for the center differential bevel washers. See Figure 1 for the correct part numbers.
II. AIR FLOW METER INSPECTION
Section 2-7, page 85 "Fuel Injection System", (step 10) the procedure for Air Flow Meter Inspection is incorrect. The correct procedure is:
STEP (10) Blow air from the air cleaner side to check if voltage across terminals (W) and (B) is greater than that measured in step (8) above. If not, replace the air flow meter.
