Throttle Full Open Switch: Adjustments

Fig. 12 Accelerator & Throttle-position Switch Adjustment:

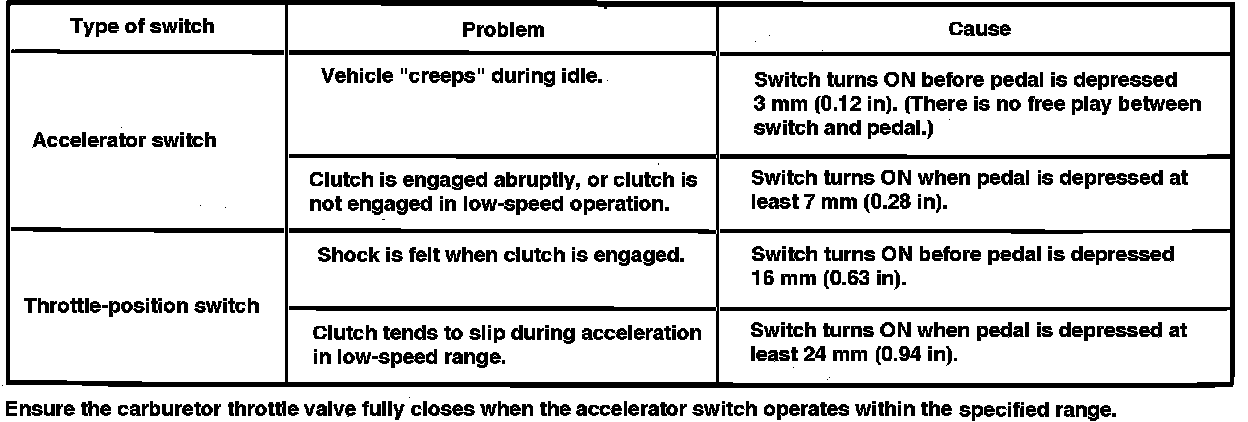

Fig. 13 Accelerator & Throttle-position Switch Fault Chart:





Refer to Fig. 12, when checking accelerator switch or throttle-position switch adjustment.
The accelerator switch should turn on .12-.28 inch from the accelerator pedal released position. The throttle position switch should turn on .63-.94 inch from the accelerator pedal released position. If either switch functions beyond specified ranges refer to chart, Fig. 13.
