Service Manual Correction - Steering Electronics

NUMBER 01-114-89


DATE 05-29-89

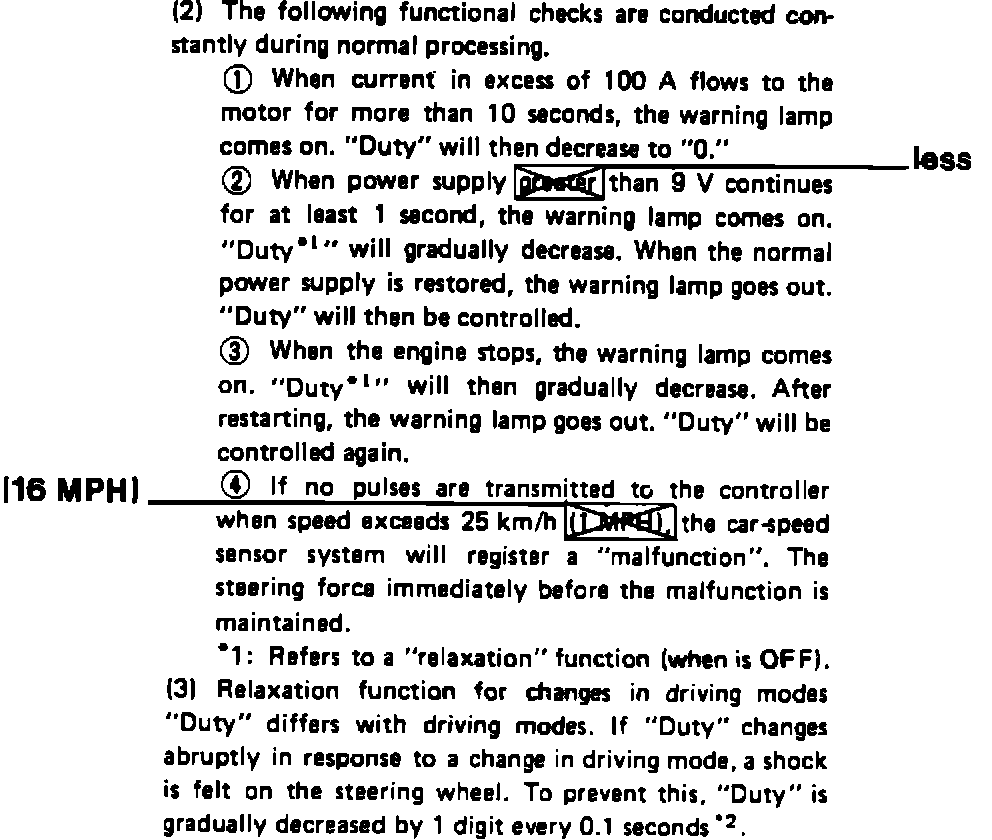

FIGURE 1:

1989 XT SERVICE MANUAL

SUBJECT: SERVICE MANUAL CORRECTION - ELECTRONIC CONTROL LOGIC CONFIGURATION

THIS BULLETIN IS FOR INFORMATION ONLY


The following corrections need to be made to the 1989 KT Service Manual concerning electronic control logic configuration (XT6 motor power steering). It is located in Volume 4, 5, 6 (MSA5T8909C) in section 4-3, page 7. See figure 1.
