Drive Belt: Service and Repair

Where applicable, always replace drive belts in pairs.

First Drive Belt

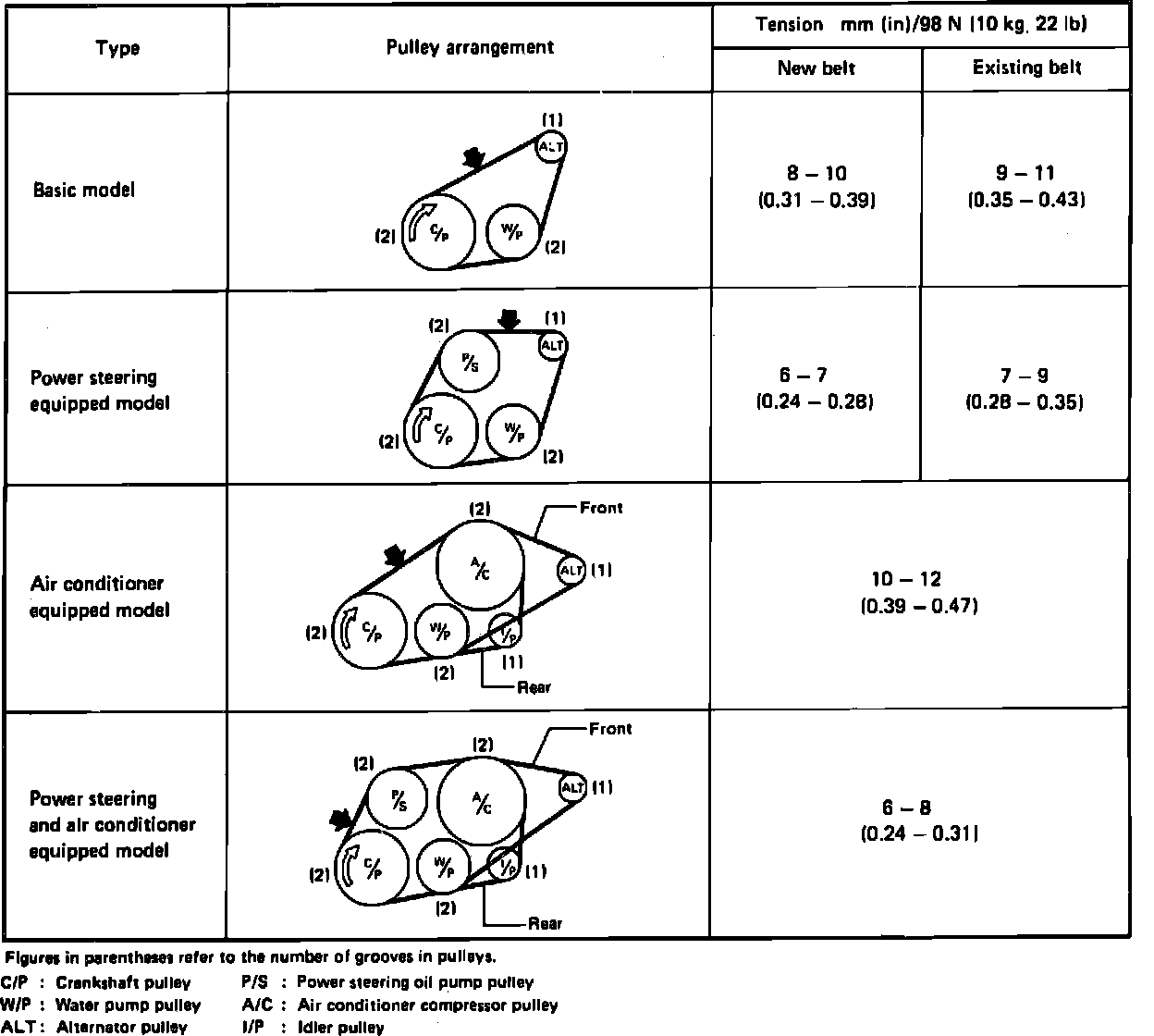

Fig. 57 Drive Belt Routing & Tension Data:

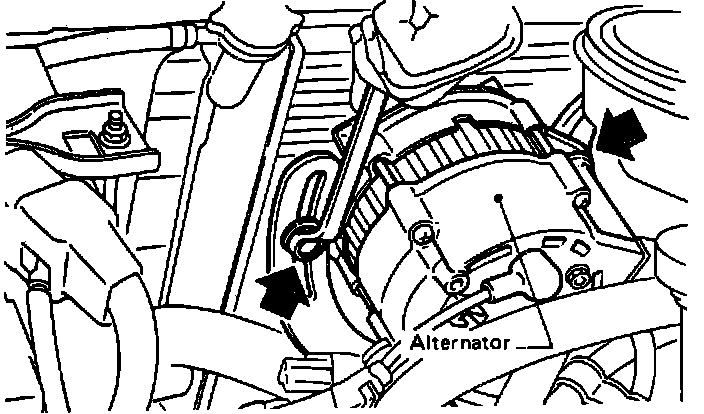

Fig. 62 Alternator Mount & Slide Bolt Location:

1. Loosen alternator mount and slide bolts, Fig. 62.
2. Remove drive belt.
3. Install drive belt. When proper belt tension is achieved, as specified in Fig. 57 tighten alternator slide and mount bolts, Fig. 62.
4. For new belt installation, readjust belt tension to specifications after running engine for five minutes.

Second Drive Belt

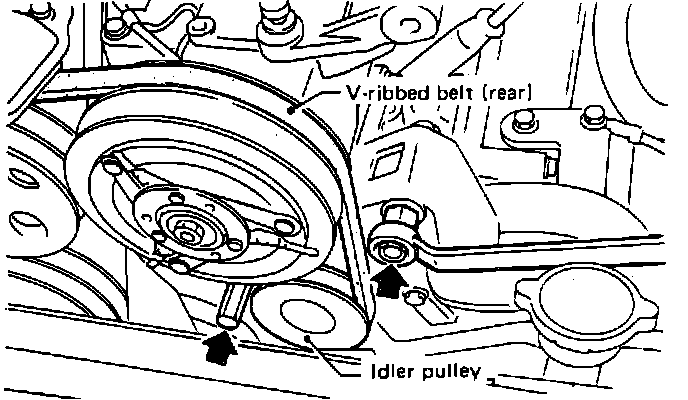

Fig. 63 Idler Pulley Retaining Bolt & Nut Location:

1. Loosen idler pulley retaining bolt and nut, Fig. 63.
2. Remove drive belt.
3. Install drive belt. When proper belt tension is achieved, as specified in Fig. 57 tighten idler pulley retaining bolt and nut, Fig. 63.
4. For new belt installation, readjust belt tension to specifications after running engine for five minutes.
