Disassembly and Assembly

Evaporator Disassembly & Assembly

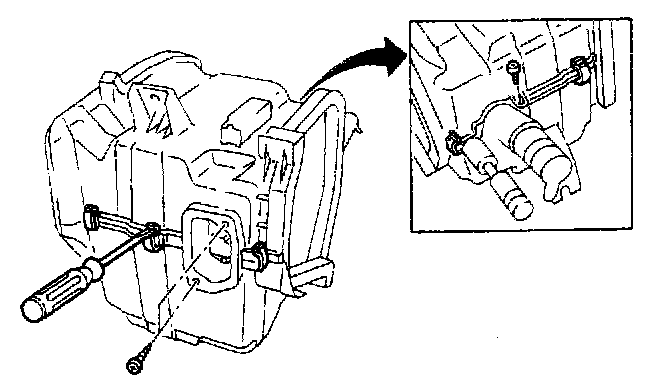

1. Using a flat-bladed screwdriver, remove the clamps and the evaporator upper case.

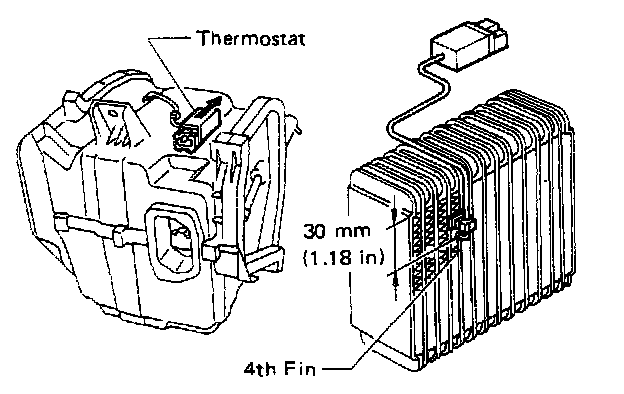

2. Remove thermostat from upper case. (Thermistor is inserted into specified evaporator fin position.) When installing thermostat, be sure to insert thermistor into specified fin position.

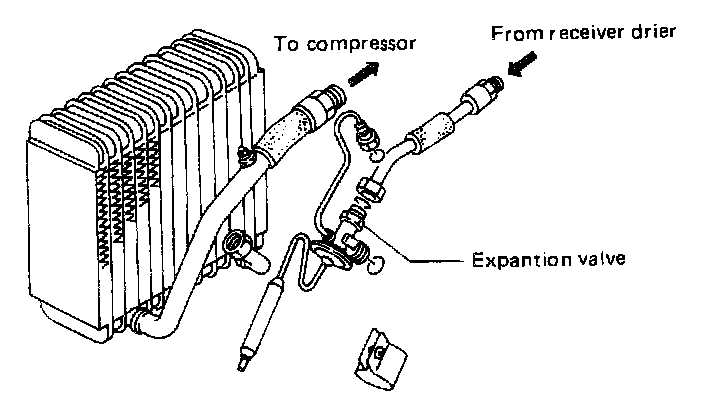

3. Disconnect the connection between the expansion valve and pipe from receiver drier.
4. Remove the expansion valve from pipes.






5. To install expansion valve, reverse removal procedures. Properly wrap capillary tube of expansion valve with seal.

Tightening torque: Nm (kg-m, ft-lb)

T1: 15 - 25 (1.5 - 2.5,11 - 18)
T2: 10 - 20 (1.0 - 2.0, 7 - 14)
T3: 7 - 13 (0.7 - 1.3,5.1 - 9.4)

6. Check to see if the evaporator fins are clogged. If they are, clean them with compressed air. Water must never be used to clean the evaporator.
7. Check parts that have been removed for cracks or scratches, and repair or replace them with new ones, if necessary.
8. Reassemble the evaporator in the reverse order of disassembly. Observe the following points during the reassembly process:

a. Confirm that the 0-ring is inserted in the specified position.
b. Tightening torque.

Tightening torque: Nm (kg-m, ft-lb)

DIESEL KIKI

Nut on discharge side: 25 - 34 (2.5 - 3.5, 18 - 25)
Nut on suction side: 10 - 20 (1.0 - 2.0, 7 - 14)

CALSONIC

Nut on discharge side: 15 - 25 (1.5 - 2.5, 11 - 18)
Nut on suction side: 10 - 20 (1.0 - 2.0, 7 - 14)
