Refrigerant Pressure Sensor / Switch: Testing and Inspection

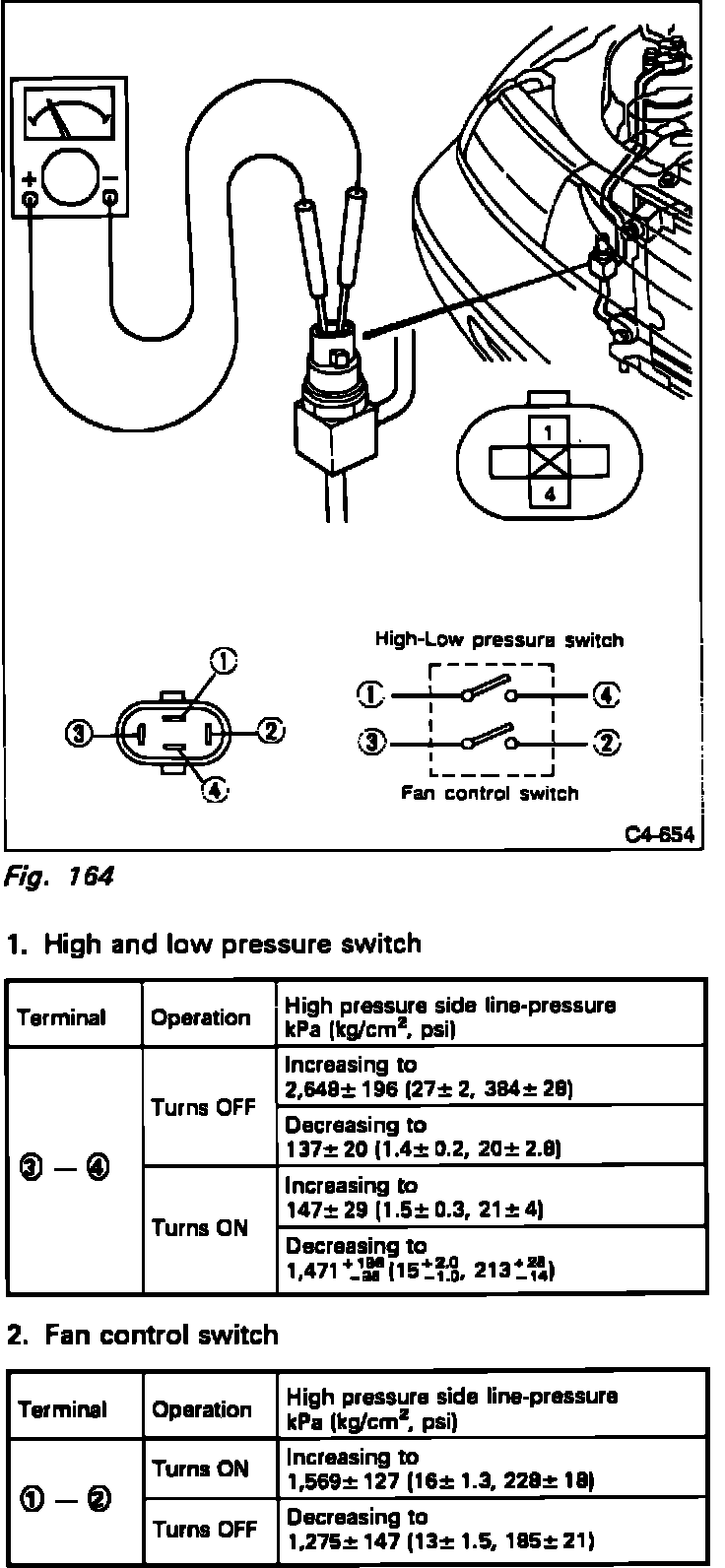

Pressure Switch (Trinary Switch)Trinary Switch Testing:
1.
Connect manifold gauge to high pressure side service valve.
2.
Unplug switch harness connector and check for proper "ON-OFF" operation as described on image chart.
3.
Replace switch if operation is not as specified.
