A/C - Retrofit Procedures: Overview
NUMBER: 10-68-96
DATE: 07-12-96
APPLICABILITY:
'87-94
Loyale
'90-94
Justy MPFI
'93
Impreza
'90-93
Legacy Zexel systems
'90-93
Legacy Calsonic systems
(including Turbo)
'92
SVX
SUBJECT:
AIR CONDITIONING RETROFIT PROCEDURES R-12 to R-134a
SUBARU has developed R-12 to R-134a A/C retro fitting procedures for the above vehicles.

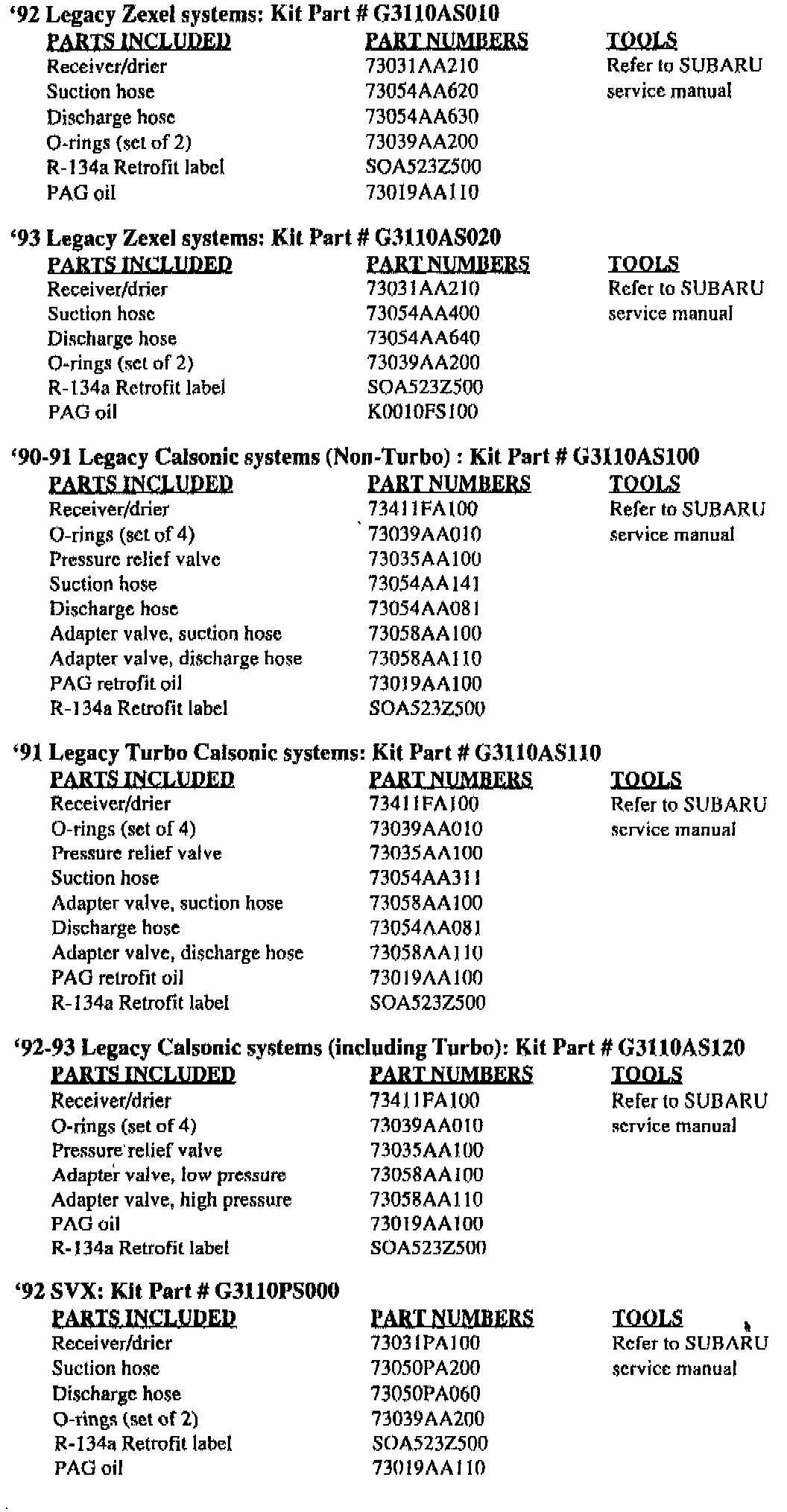

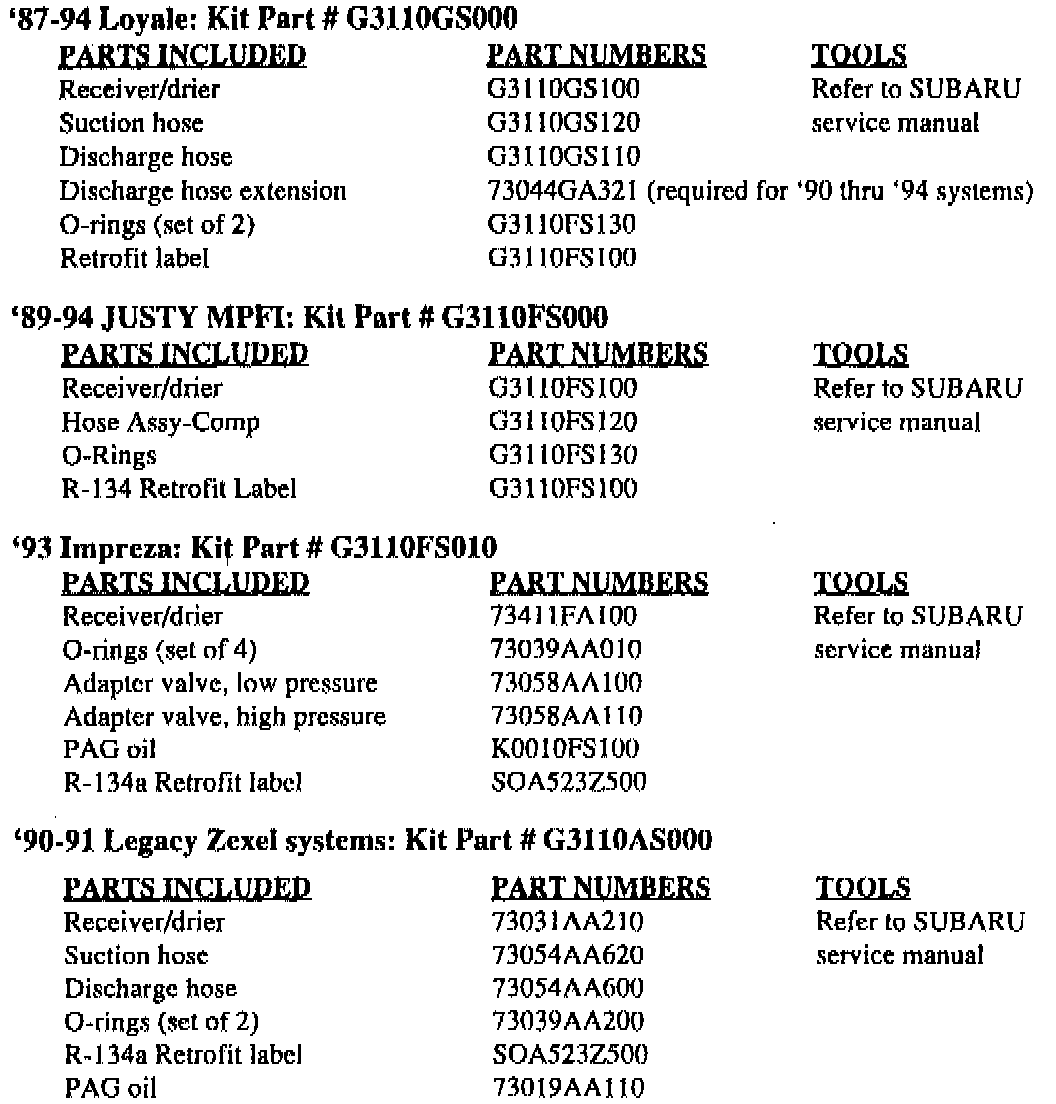

PART LISTS:
