A/T Shift Lock System/Loyale

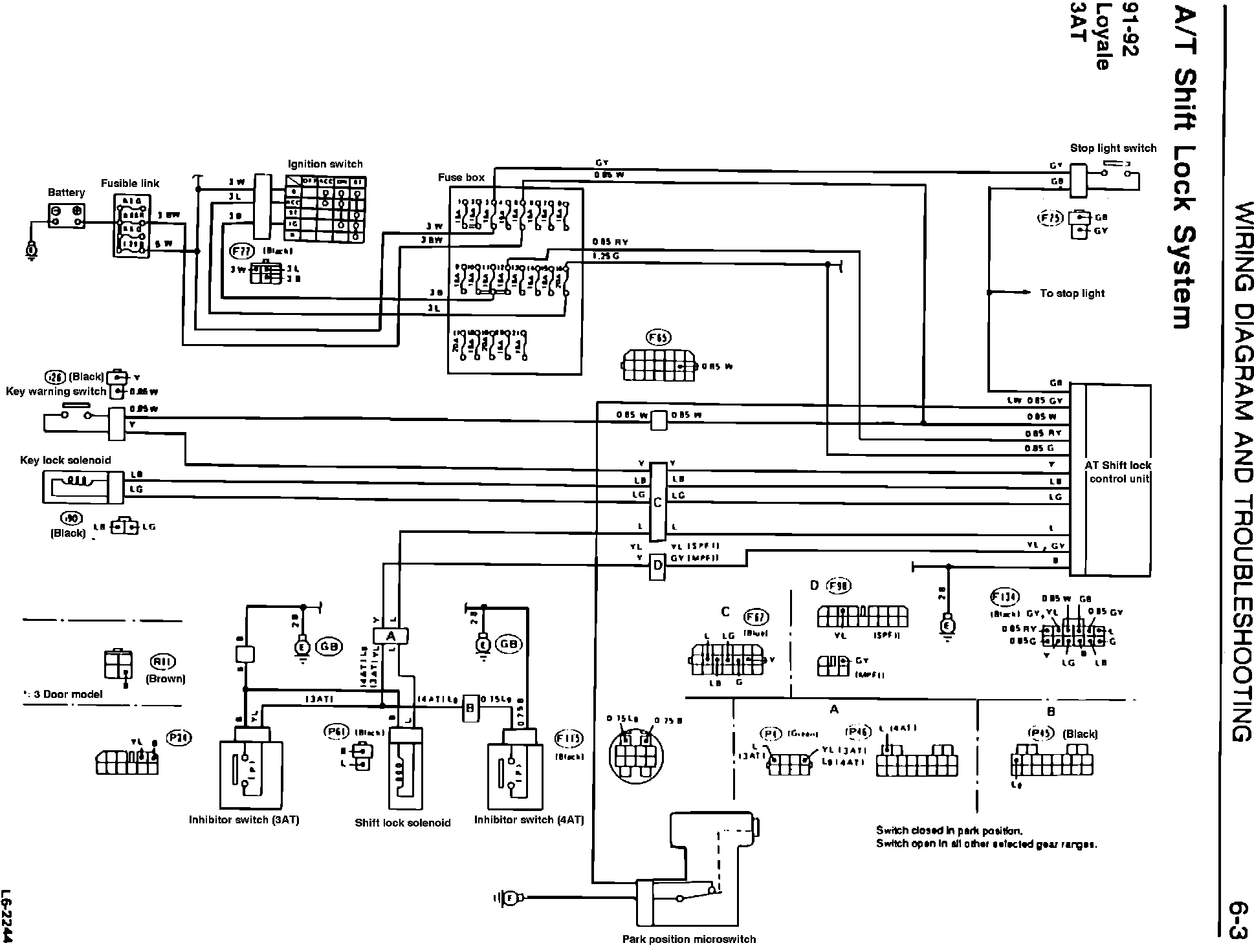

Be aware that starting in 1990, Loyale vehicles equipped with an A/T utilize a park position micro switch incorporated in the select lever handle. This switch is closed in the park position and open in all other selected
gear ranges. See wiring diagram and make the notations in your Service Manuals. Again, SOA's Mark Russo brings this to our attention.
