Wiper Switch: Testing and Inspection

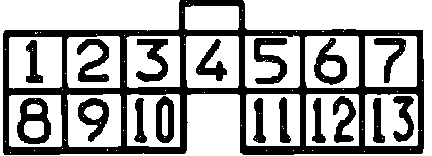

Windshield Wiper Switch Continuity TestFig. 15 Wiper Switch Connector Pin Identification:

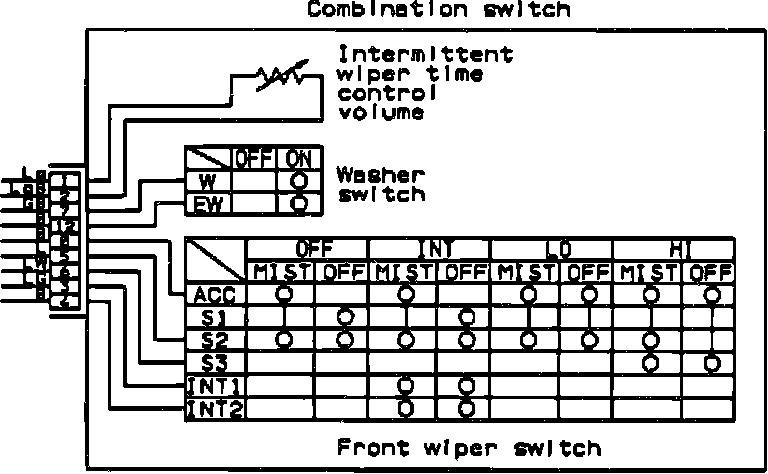

Fig. 16 Windshield Wiper Switch Continuity Test:
Refer to
Fig. 15, for connector pin identification and
Fig. 16, for continuity test.

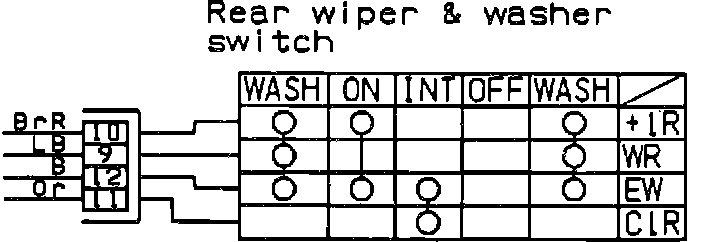

Rear Wiper Switch Continuity TestFig. 17 Rear Wiper Switch Continuity Test:
Refer to
Fig. 15, for connector pin identification and
Fig. 17, for continuity test.
