Removal

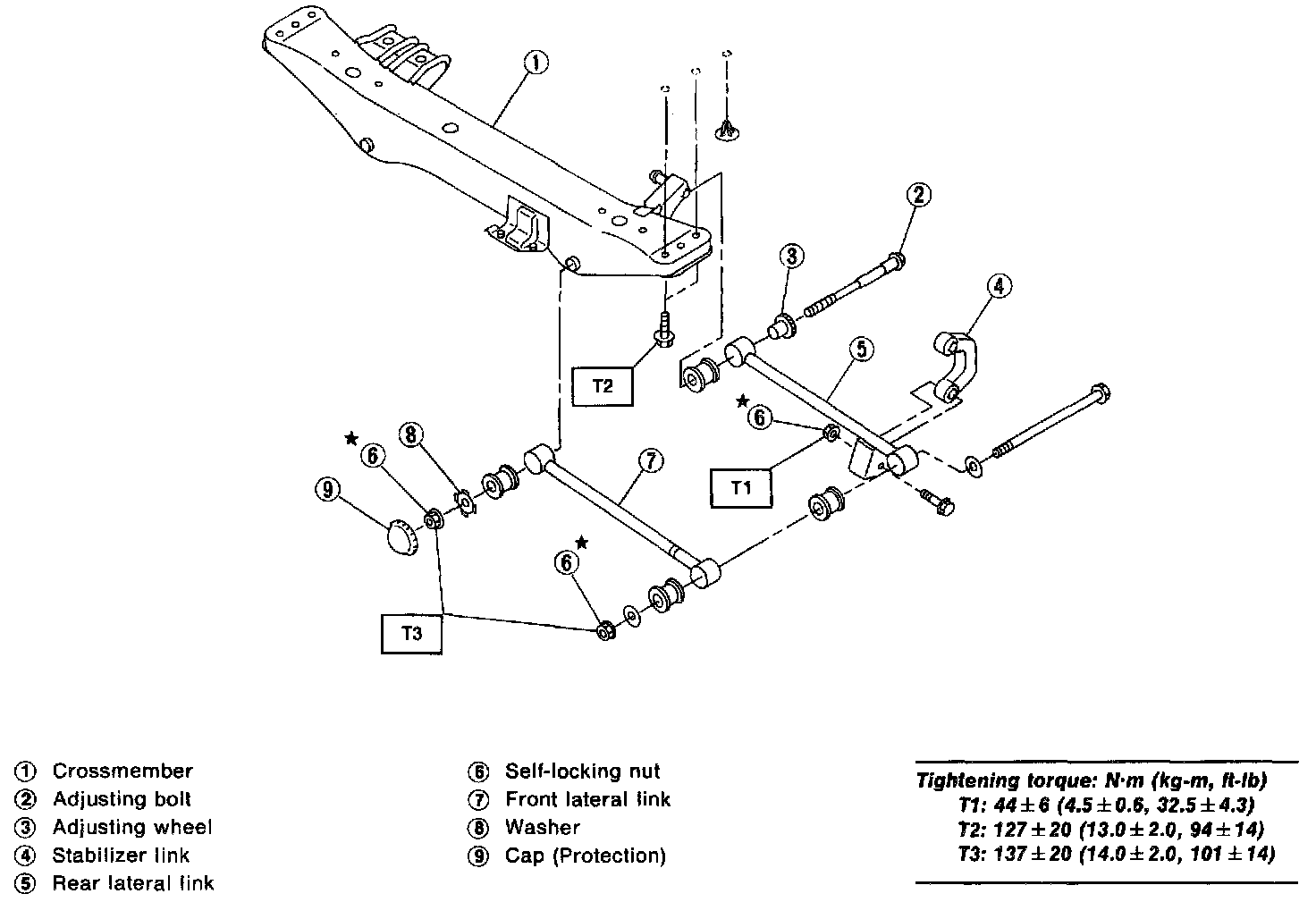

REMOVAL





1) Disconnect lateral links from housing.
2) Remove rear exhaust pipe and muffler.
3) Remove heat-shield cover.
4) Remove four bolts securing crossmember to body.
