Cowl: Service and Repair

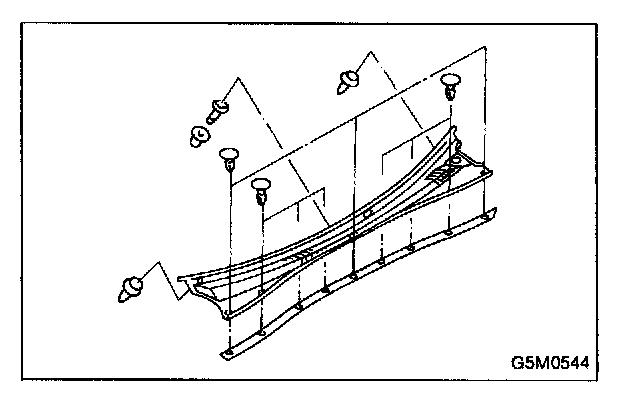

Cowl PanelREMOVAL 1.
Remove wiper arms.
2.
Open front
hood.
3.
Pry clip off front
hood seal using a screwdriver.
4.
Lift cowl panel and remove clips from windshield.
INSTALLATION 1.

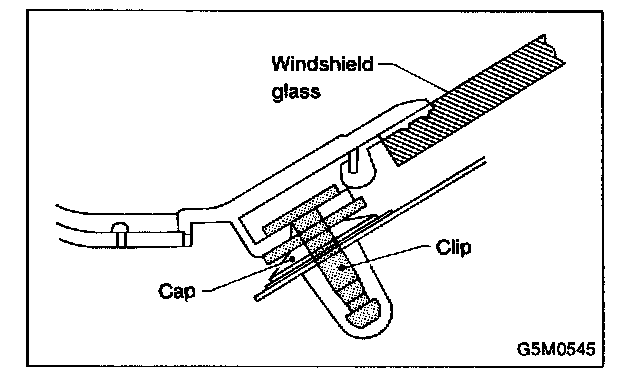

Install clips on cowl panel.
2.
Install cap on front panel.
3.
Install front
hood seal attaching clip on cowl panel.
4.
Install middle clip and other clips in that order.
