Blower Motor: Service and Repair
Blower Motor AssemblyREPLACEMENT 1.
Disconnect GND cable from battery.
2.

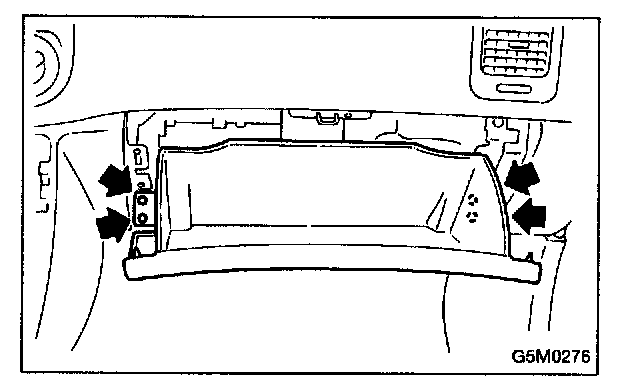

Remove glove box.
3.

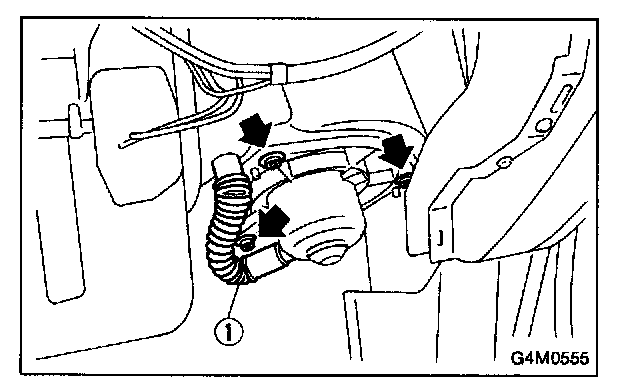

Disconnect
blower motor harness connector.
4.
Disconnect
aspirator pipe (1).
5.
Remove
blower motor mounting screw.
6.
Remove
blower motor assembly.
7.
Reverse procedure to install.
