Fuse HVAC: Locations

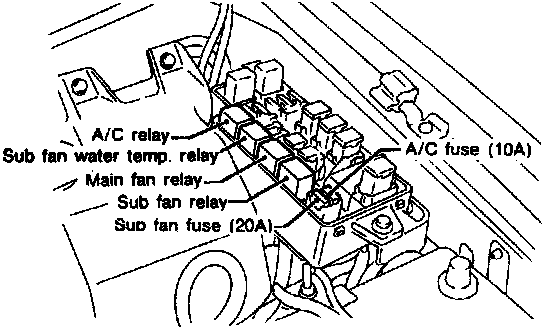

Relay And Fuse Location -
A/C relay
-
Main fan (radiator fan) relay
-
Sub fan (condenser fan) relay
-
Sub fan (condenser fan) water temperature relay
-
Fuses (10 A and 20 A)
-

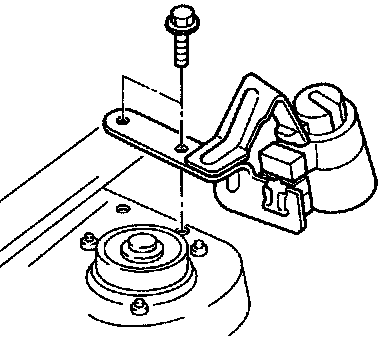

A/C cut relay: A/C cut relay is attached by a bolt to top of front suspension bracket (RH) via a bracket.
