Combination Switch: Testing and Inspection
COMBINATION SWITCH (ON-CAR) 1.
Remove instrument panel lower cover.
2.
Remove lower column cover.
3.
Unfasten holddown clip which secures harness, and disconnect connectors from body harness.

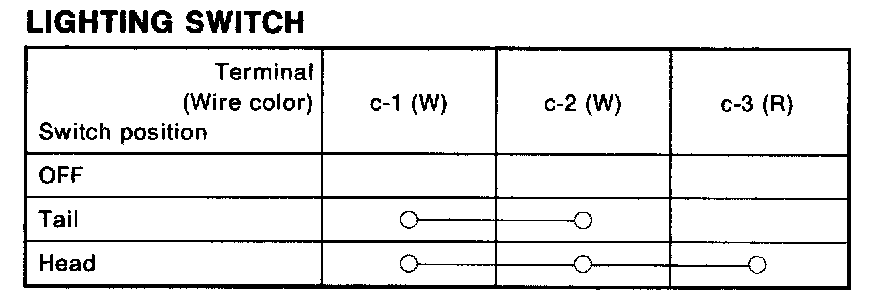

Lighting Switch:
Parking Switch:

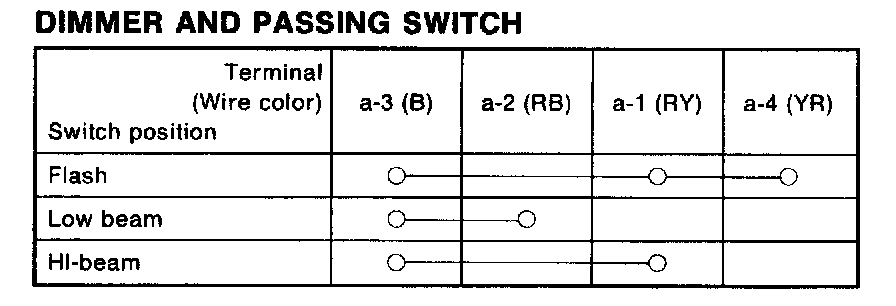

Dimmer And Passing Switch:

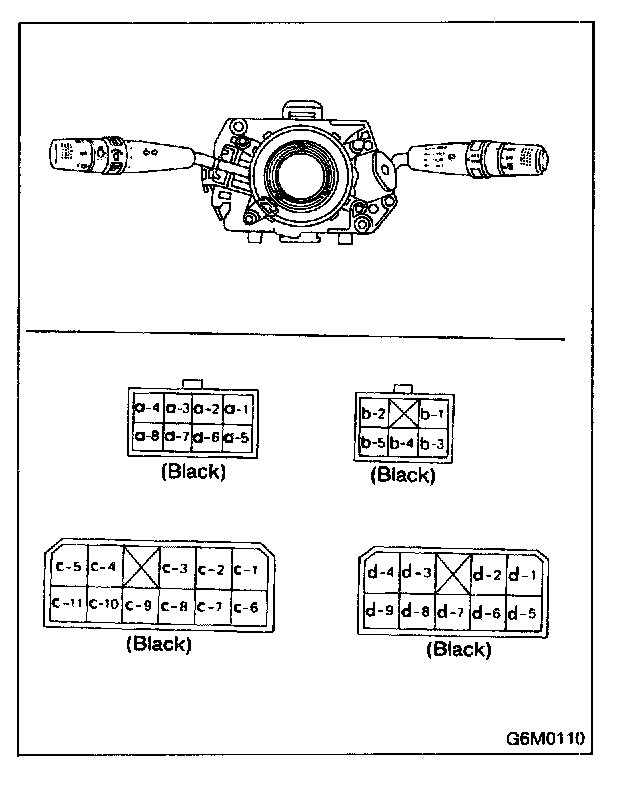

Move
combination switch to respective positions and check continuity between terminals as indicated in the tables.
