Mode F02 - Vehicle Speed Sensor 1 (VSP1)

MODE F02 - 5GVEHICLE SPEED SENSOR 1 (VSP1)

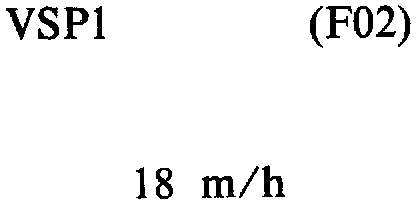

F03 = vehicle speed (VSP1):
to be indicated in "km/h".

CONDITION:
Raise vehicle off ground and operate at constant speed.

SPECIFIED DATA:
Compare speedometer with monitor indications.

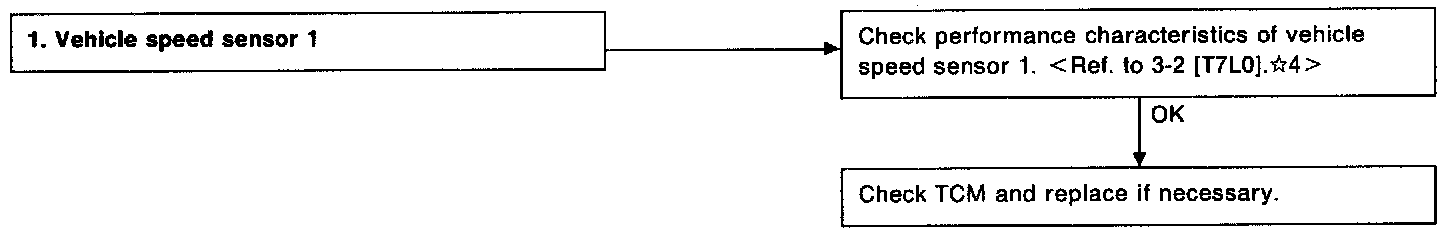

- Probable cause (if outside "specified data")
