Mode F04 - Vehicle Speed Sensor 2 (VSP2)

MODE F04 - VEHICLE SPEED SENSOR 2 (VSP2)








F05 = vehicle speed (VSP2):
to be indicated in "km/h".

CONDITION:
Raise vehicle oft ground and operate at constant speed.

SPECIFIED DATA:
Compare speedometer with monitor indications.

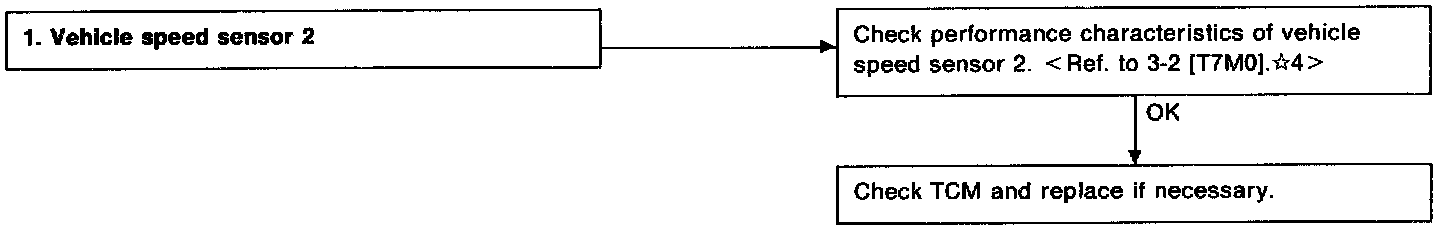

- Probable cause (if outside "specified data")
