Mode F09 - Throttle Position Sensor (THV)
MODE F09 - THROTTLE POSITION SENSOR (THV)
CONDITION:
- Ignition switch ON (with engine OFF)
- Measure voltage while operating throttle valve from a fully closed position to a fully open position.
SPECIFIED DATA:
- Fully closed position: 0.5±0.2 V

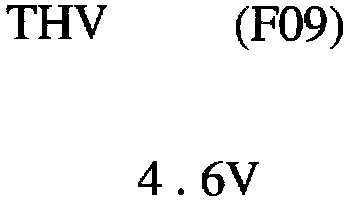

- Fully open position: 4.6±0.2 V
- From fully closed to fully open position:
Voltage must smoothly decrease.
- Open harness: 5.0±0.3 V
- Shorted harness: 0.00 V

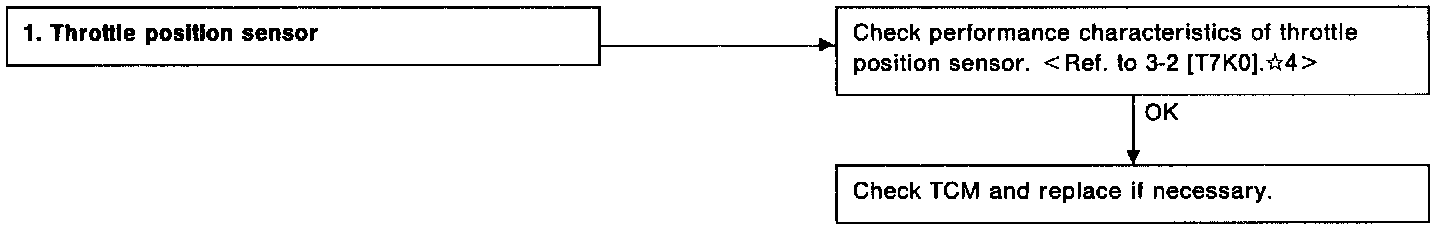

- Probable cause (if outside "specified data")
