Mode FA1 - Switch 2 (SW2)

0: MODE FA1 SWITCH 2 (SW2)

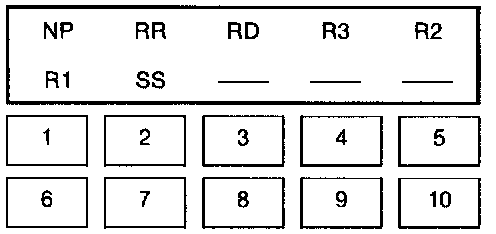

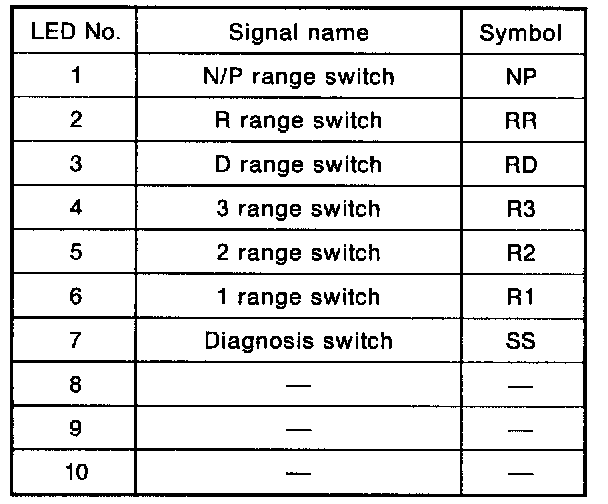

Reference values
- Lights up when the N or P range is selected (No. 1).
- Lights up when the R range is selected (No. 2).
- Lights up when the D range is selected (No. 3).
- Lights up when the 3 range is selected (No. 4).
- Lights up when the 2 range is selected (No. 5).
- Lights up when the 1 range is selected (No. 6).
- Lights up when the diagnosis switch is connected (No. 7).

NOTE: If each LED does not illuminate in the above conditions [1][2]inhibitor switch malfunction may occur. Perform diagnostics on inhibitor switch.
