Function

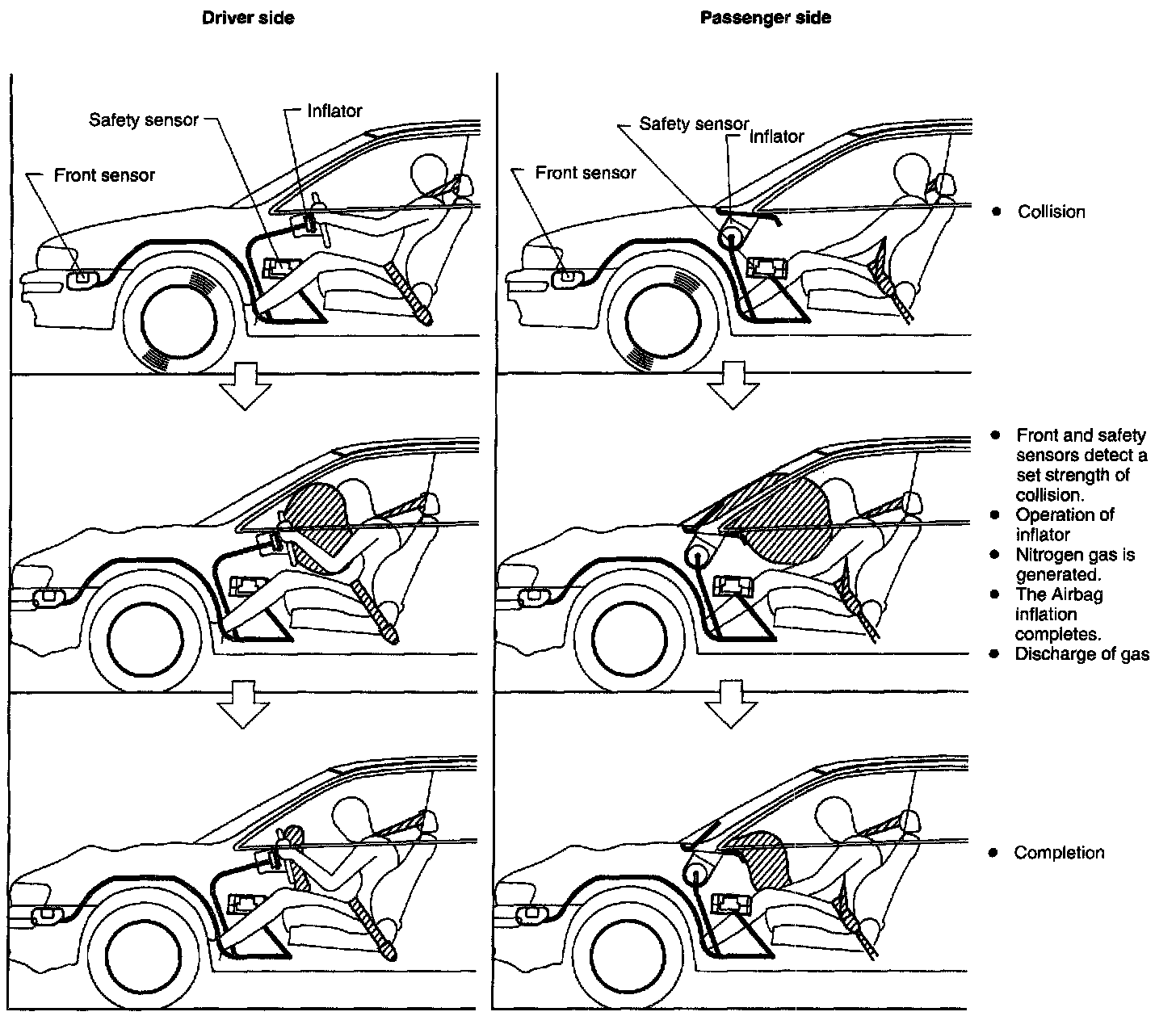

The SRS airbag is provided as an auxiliary driver and passenger sit in front seat restraint system to be used in combination with the seat belt. When an impact greater than a set level is applied to the front of the vehicle, the sensor senses it and generates an electrical pulse to inflate the bag in the airbag module, thus preventing the driver and passenger sit in front seat of upper bodies from impacting the steering wheel, instrument panel and windshield.
