Warn Light Indicates Code, Then Normality Code

WARNING LIGHT INDICATES TROUBLE CODE, THEN NORMALITY CODE - FLASHING TROUBLE CODE

1. SELECTION OF CHECK PARTS

Trouble Codes (02-32):




1. Conduct on-board diagnostic and call up trouble codes stored in memory.

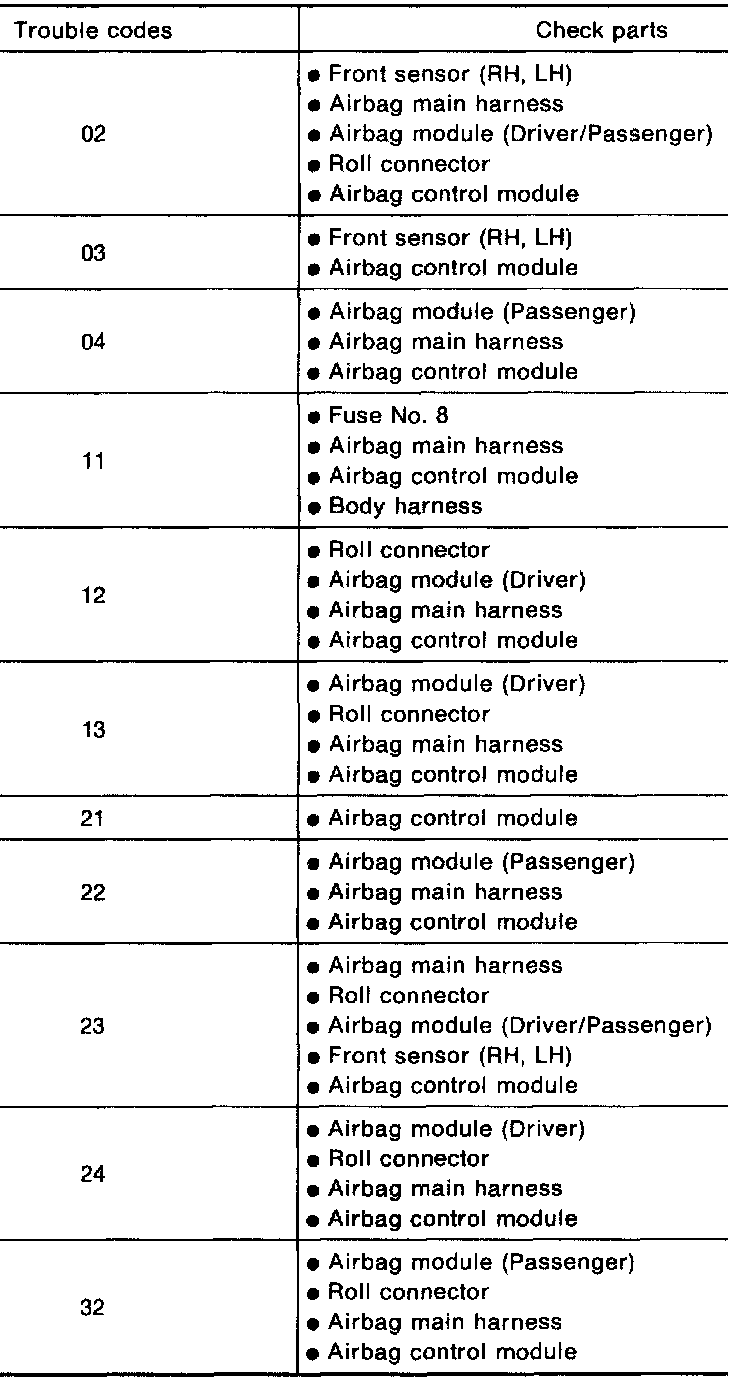

2. Select trouble code required to check airbag component parts from those listed in table and reproduce symptom.
