Fuel Tank Pressure Sensor

A: REMOVAL AND INSTALLATION

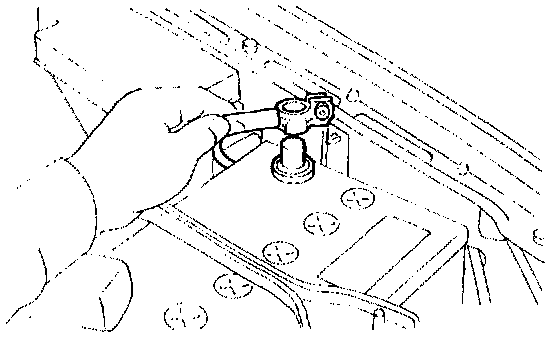

1) Disconnect battery ground cable.
2) Remove trims.

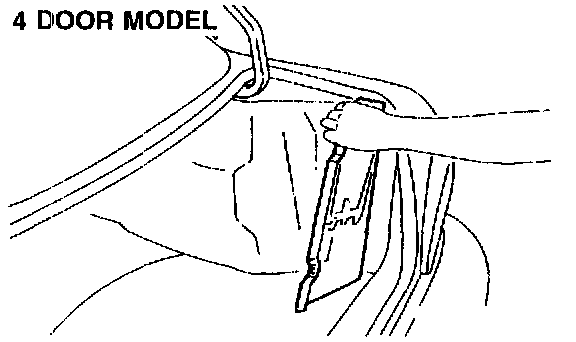

- 4 door model:
Remove right trunk side trim.

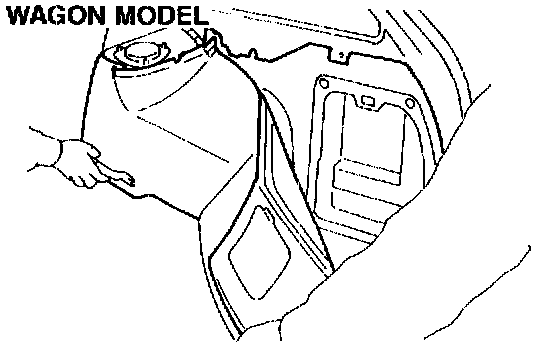

- Wagon model:
(1) Remove right rear quarter tipper rear trim.
(2) Remove right strut cap.
(3) Remove right rear quarter pillar lower trim.





3) Disconnect connector from fuel tank pressure sensor.

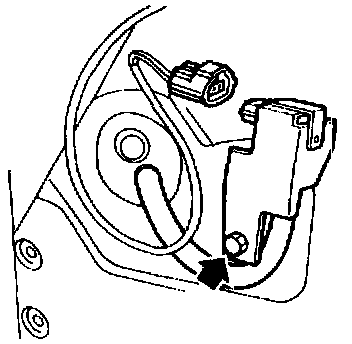

4) Remove bolts which install fuel tank pressure sensor bracket on body.





5) Disconnect hose from fuel tank pressure sensor.

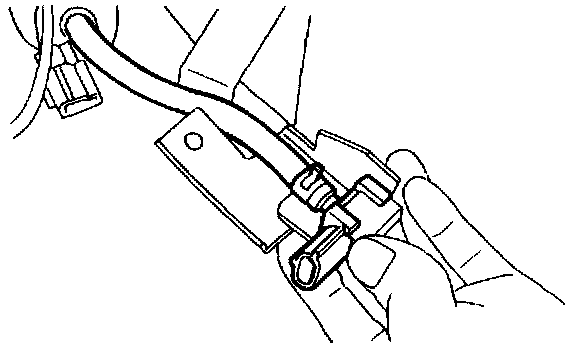

6) Remove fuel tank pressure sensor from bracket.
7) Installation is in the reverse order of removal.
