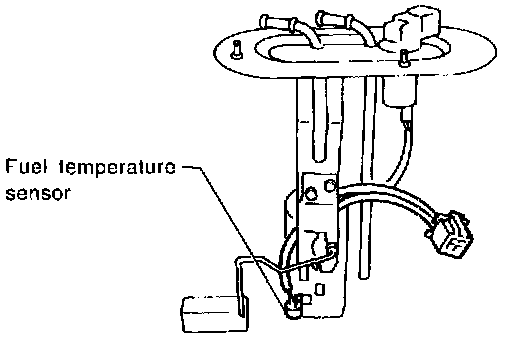

Fuel Temperature Sensor

A: REMOVAL

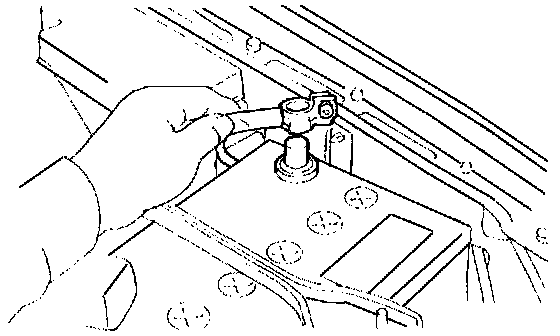

1) Disconnect battery ground cable.

2) Release fuel pressure.

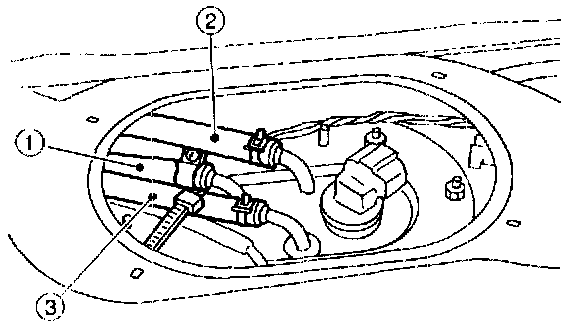

3) Disconnect fuel delivery hose (1) return hose (2) and jet pump hose (3).

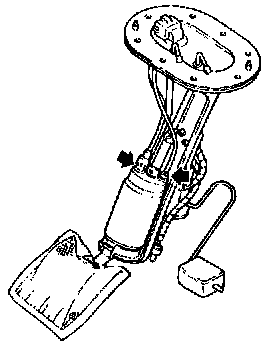

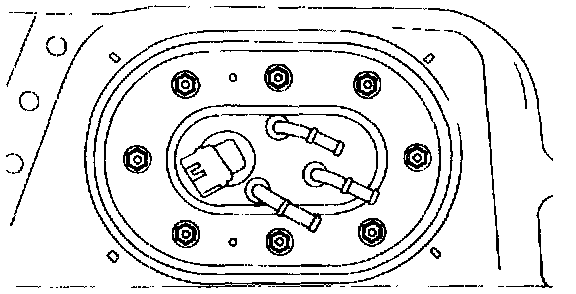

4) Remove nuts which install fuel pump assembly onto fuel tank.

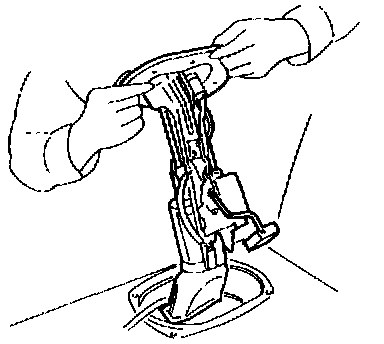

5) Take off fuel pump assembly from fuel tank





6) Remove two screws fixing terminals on fuel pump assembly.

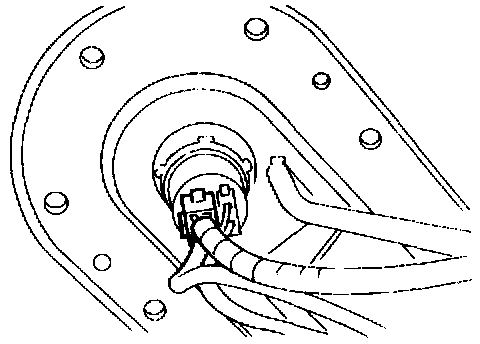

7) Disconnect connector from fuel pump.





8) Remove fuel temperature sensor from fuel pump assembly.

B: INSTALLATION

CAUTION: Leave fuel filler cap open when tightening nuts, to prevent fuel from flowing out through fuel delivery and return pipes. Close fuel filler cap after tightening nuts.

Installation is in the reverse order of removal. Do the following:
(1) Always use new gaskets.
(2) Ensure sealing portion is free from fuel or foreign particles before installation.

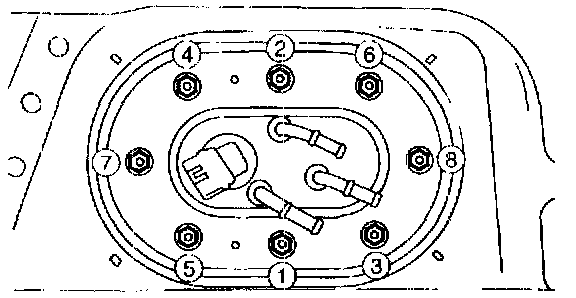

(3) Tighten nuts in numerical sequence shown in Figure 10 specified torque.

Tightening torque: 4.4 ± 1.5 Nm (3.3 ± 1.1 ft-lb)
