Installation
INSTALLATION 1)

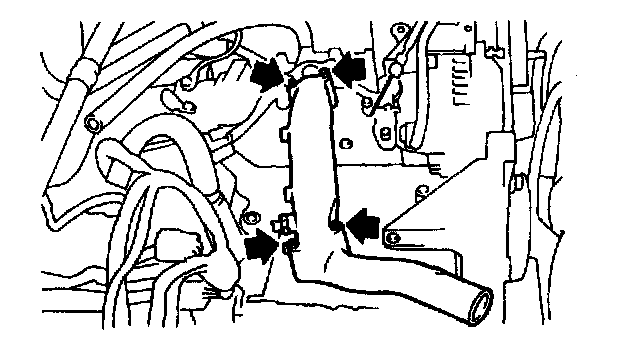

Install engine coolant pipe on cylinder block.
Tightening torque:
6.4 ± 0.5 Nm (0.65 ± 0.05 kg-m, 4.7 ± 0.4 ft-Ib) CAUTION: Use a new 0-ring.
2)

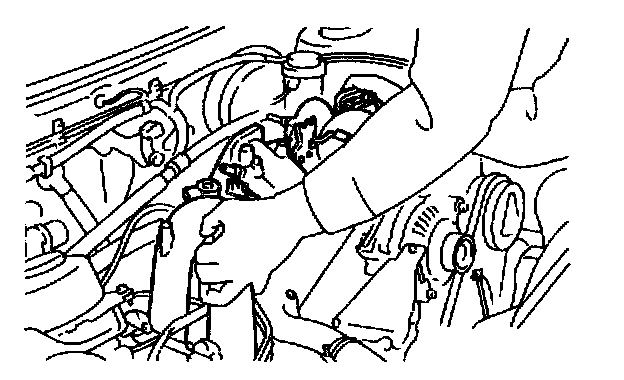

Connect radiator inlet hose.
3)

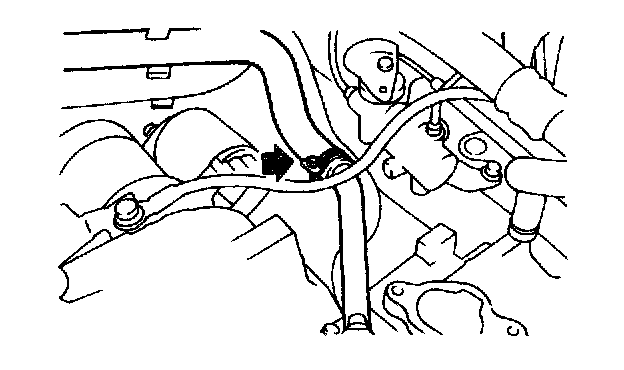

Connect heater inlet hose.
4)
Install intake manifold.
5)

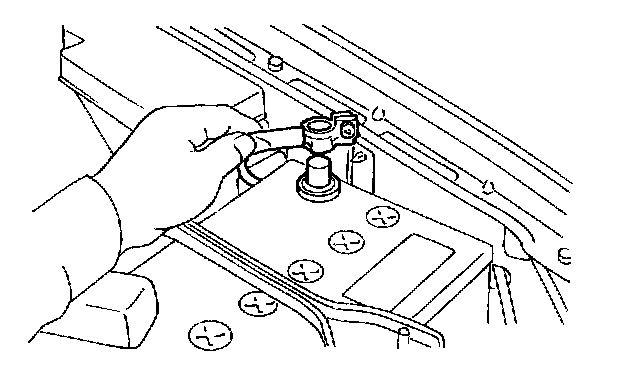

Connect ground cable to battery terminal.
